Hole Diameter: 80-130 mm
Hole depth: 30-40 m
Drilling Method: Air Drilling & Mud Drilling
>> Application
AK-30 construction Anchor Drilling rigis used for drilling anchor holes in deep base pit of high building, anchor and reinforce side-slope for water conservatory project, water power station project, railways and highways. Especially used for drilling anchor holes in high position side-slope protection and drainage holes.
Share
PRODUCT DESCRIPTION

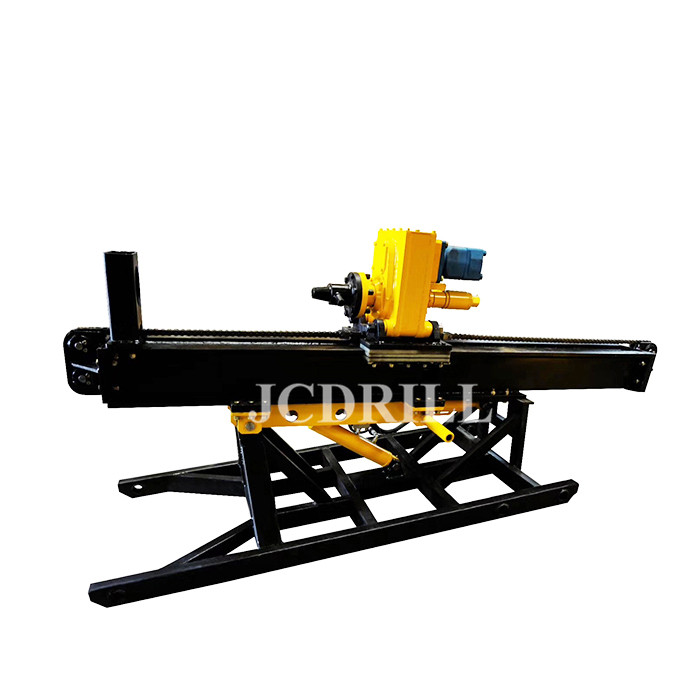

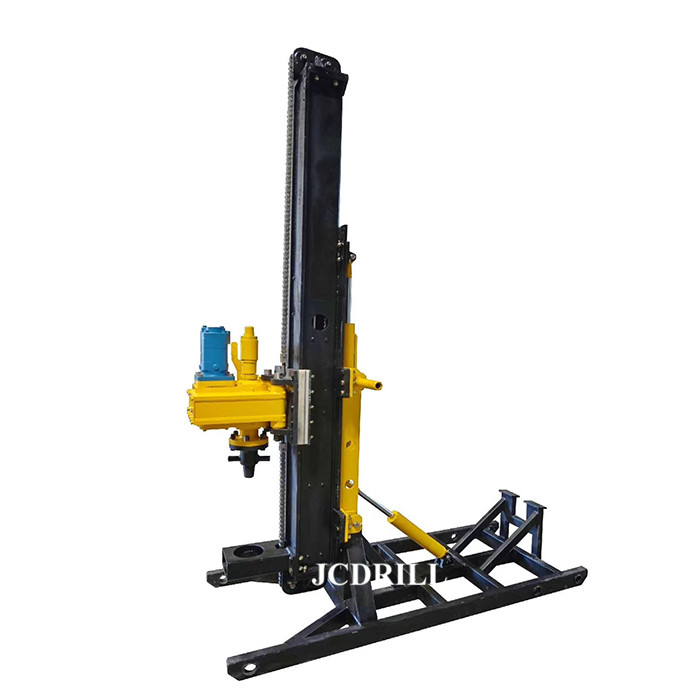

Anchor drilling rig of AK30 is a full hydraulic operated engineering drill rig. It can prevent geologic calamity in a way, such as landslide or rock collapse. At side slope of some projects, the drilling rig can be used for deep foundation anchor, heavy duty pretension anchor. Moreover, it can drill blast hole in quarry or water well projects.
>> Characteristics
>> AK-30 engineering drilling rig is a full hydraulic operated top drive power head drill with strong drilling capability and low energy consumption.

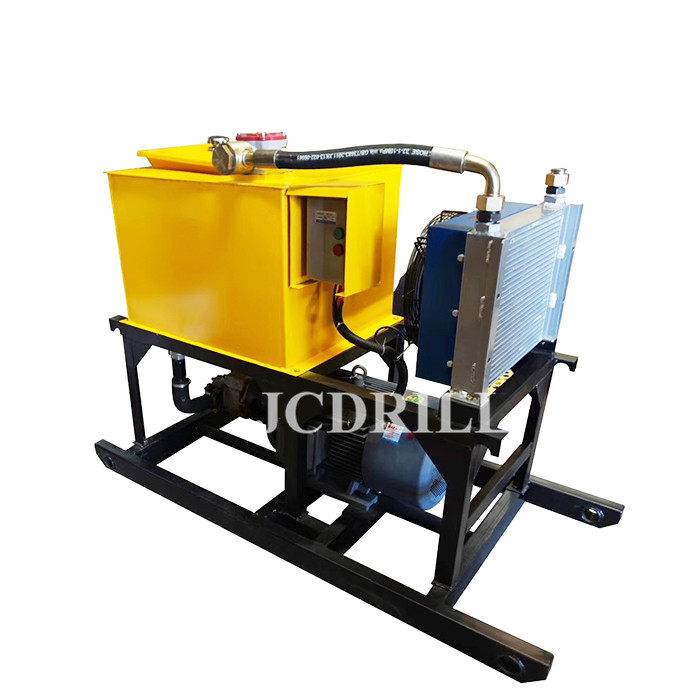

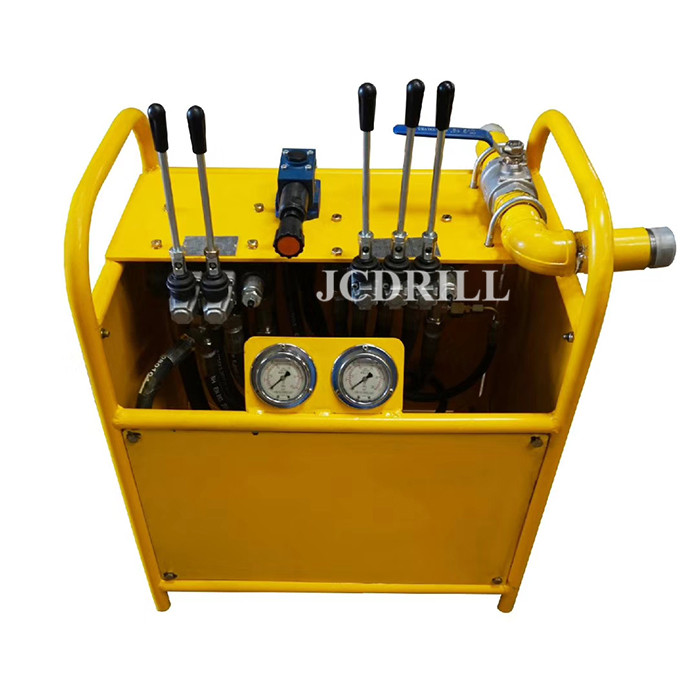

>> It is composed of the main set, control panel and pump which are connected together with flexible joint. So it features simple in structure, good disassembly and convenient to mount and transport.

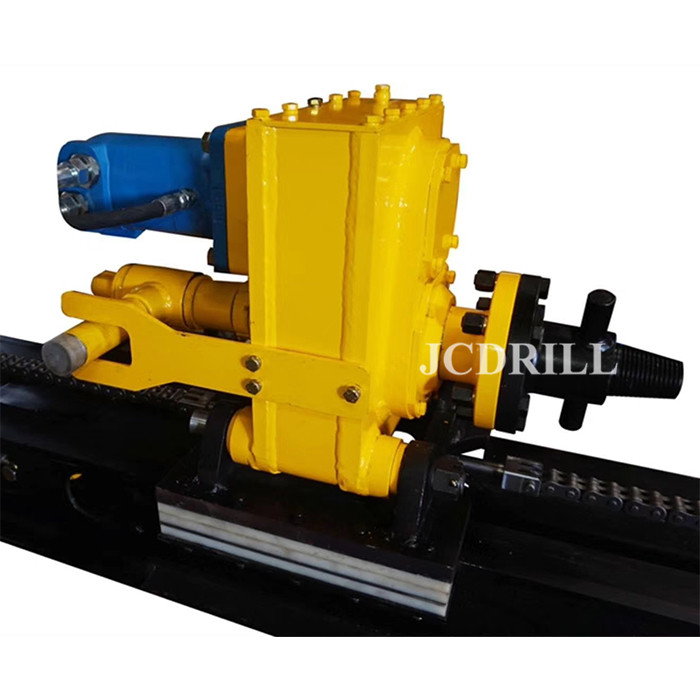

>> Transmission, built in the top drive power head, has two-speed range - high and low. It can meet the requirements of both DTH hammer drilling and carbide bit drilling.
>> Hydraulic part is an internationally famous brand product that ensures drilling rig's high reliability and permanence stability.
>> Specification
| Drilling Capacity | AK30(Engine Power) | AK30E(Electric Power) |
| Type | Hydraulic(4part) | Hydraulic(4part) |
| Hole depth | 30-40 m | 30-40 m |
| Hole diameter | 80-130 mm | 80-130 mm |
| Drilling rod(Diameter×Length ) | 76mm*1500m/89×1500 mm | 76mm*1500m/89×1500 mm |
| Hole angle range | 0-360° | 0-360° |
| Output speed of top drive power head | 24 -114 r/min | 24 -114 r/min |
| Output torque of top drive power head | 1500 Nm | 1500 Nm |
| Feeding stroke of top drive power head | 1800 mm | 1800 mm |
| Mast slide stroke | 500 mm | 500 mm |
| Maximum lifting capacity of top drive power head | 30 kN | 30 kN |
| Maximum thrust force of top drive power head | 15 kN | 15 kN |
| Rated pressure of hydraulic system | 18 Mpa | 18 Mpa |
| Drilling guide type | Chain wheel feed | Chain wheel feed |
| Hydraulic Clamp | Available | Available |
| Engine/Motor | Yanmar(Imported from Japan) | |
| Type | Four-stroke/water-cooled | Electric Motor |
| Model | 4TNV88-SYY | |
| Power | 23 kW | 15 kW |
| Working Speed | 2200rpm | |
| Weight | 170kgs | |
| Hydraulic system | Germany Rexroth Technology | |
| Type | Gear pump(3 union pump) | |
| Flow rate | 16/12/5L/min | |
| Pressure | 18MPa | |
