Hole Diameter: 70-150 mm
Hole depth: 60 m
Drilling Method: Air Drilling & Mud Drilling
>> Application
AK-60 construction anchoring drilling rig is used for drilling anchor holes in deep foundation pits of high-rise buildings, and for anchoring and reinforcement of slopes in water conservancy projects, hydropower projects, railways and highways. It is especially suitable for drilling and anchoring holes for high-level slope protection and drainage holes.
Share
PRODUCT DESCRIPTION
>> Characteristics
Engineering drilling rig of AK60 can be used for anchor hole construction of landslide anchors in geological disaster management. It can be used for the construction of rotary jet columns for foundation construction. With variable configuration, it is suitable for diamond drilling technology and is used for grouting hole construction. It is suitable for advanced exploration, pipe shed construction, etc.

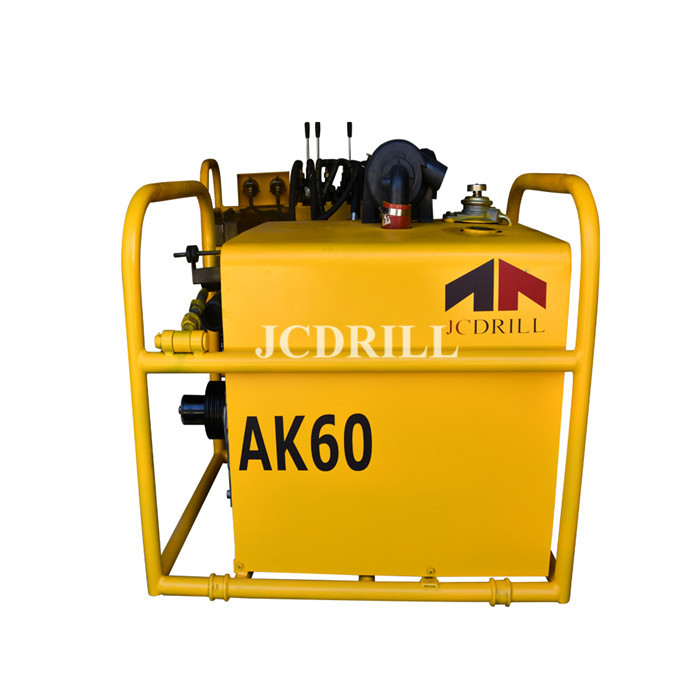

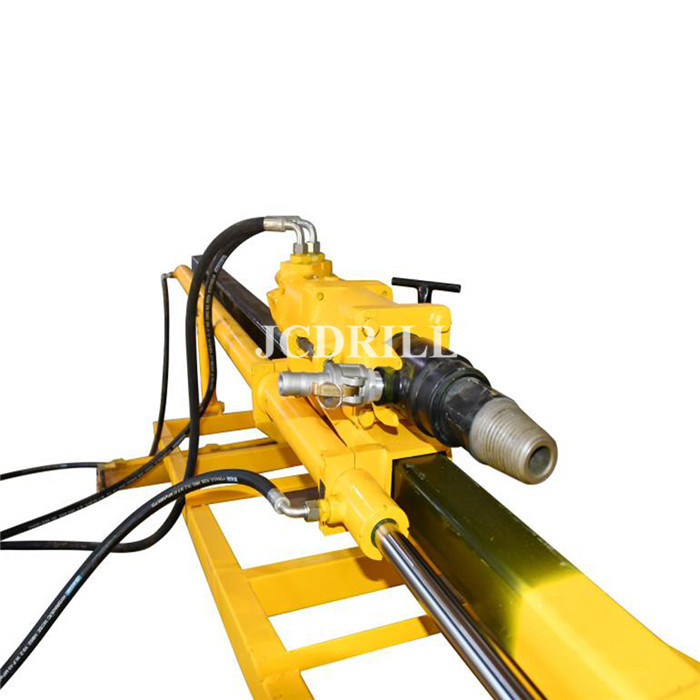

The AK-60 Structural Anchor Drill is a fully hydraulically operated top drive power head drill. This engineering drilling rig is used to drill heavy pretensioned anchor holes and drainage holes in the slopes of hydropower stations, railways or highway projects. It is also used to prevent or solve geological disasters such as landslides and rock collapses.
Lightweight, easy to carry to the hillside construction site for construction.His hydraulic pipes can be customized according to customer requirements.
The power of AK60 can be electric or diesel, with a variety of options.The equipment has beautiful appearance, stable performance, mature technology, and high customer repurchase rate.The construction drilling rig has large drilling capacity, wide application range, fast drilling speed, high drilling efficiency and strong accident elimination ability.
>> Specification
| Drilling Capacity | AK60(Engine Power) | ||
| Type | Hydraulic(4part) | ||
| Hole depth | 60 m | ||
| Hole diameter | Φ70-Φ150 mm | ||
| Drilling rod(Diameter×Length ) | 76mm*1500m/89×1500 mm | ||
| Hole angle range | 0-360° | ||
| Output speed of top drive power head (forward and reverse) | 30-60 r/min,continuous speed regulation | ||
| Output torque of top drive power head | 1500 Nm | ||
| Feeding stroke of top drive power head | 1800 mm | ||
| Mast slide stroke | 500 mm | ||
| Maximum lifting capacity of top drive power head | 40 kN | ||
| Maximum thrust force of top drive power head | 15 kN | ||
| Rated pressure of hydraulic system | 20 Mpa | ||
| Drilling guide type | Hydraulic Cylinder feed | ||
| Hydraulic Clamp | Available | ||

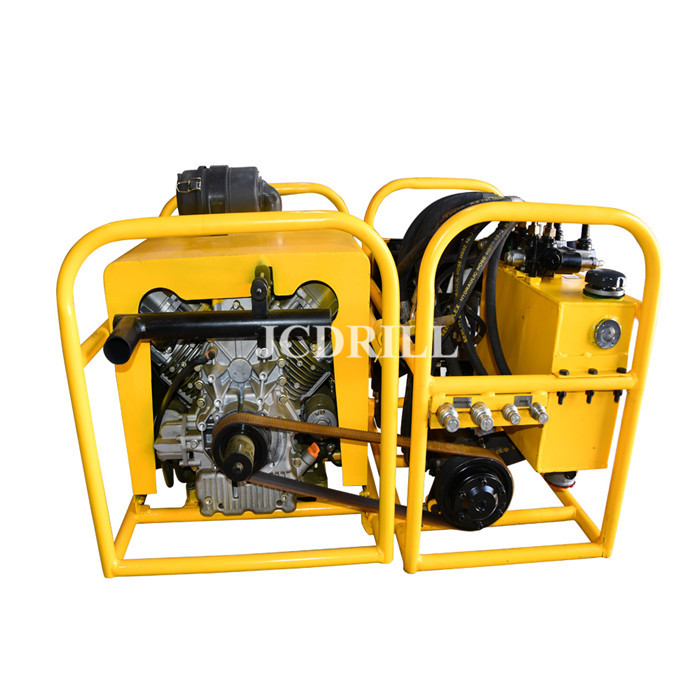

| Engine/Motor | KIPOR | ||
| Type | 4-stroke,direct injection | ||
| Cylinder | Two-cylinder,V-twin | ||
| Cooling System | air-cooled | ||
| Model | KD2V86F | ||
| Power | 12 kW | ||
| Working Speed | 3600rpm | ||
| Weight | 65kgs | ||

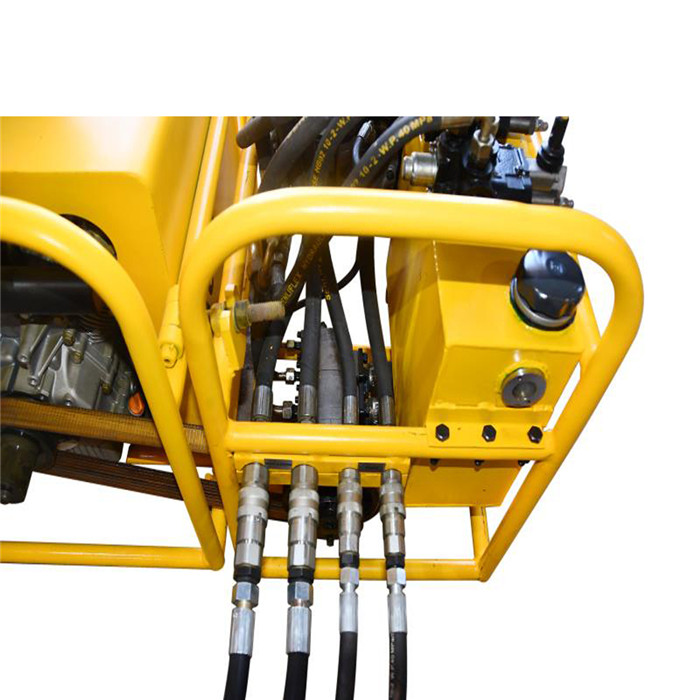

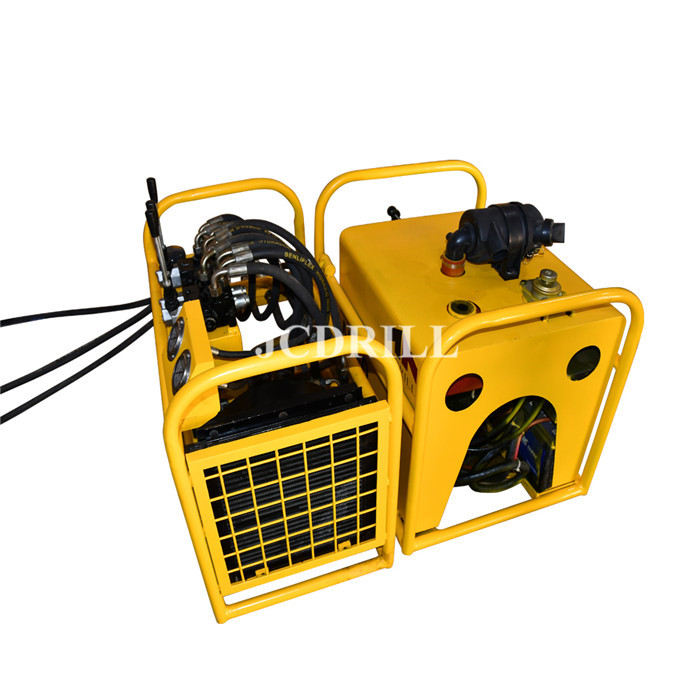

| Hydraulic system | Gear pump | ||
| Type | Gear pump(3 union pump) | ||
| Flow rate | 16/12/5L/min | ||
| Pressure | 18MPa | ||
