Maximum torque: 24000Nm
Propulsion force:120 T
Power type: Diesel/Electric motor
>> Application
It is specially designed to be used at narrow operating sites, with a length of 3.2m, laying 323m to 630m product pipes,each pipe section of 1m. All the hydraulic parts used in this rig are globally well-known brands.
Share
PRODUCT DESCRIPTION
>> Characteristics

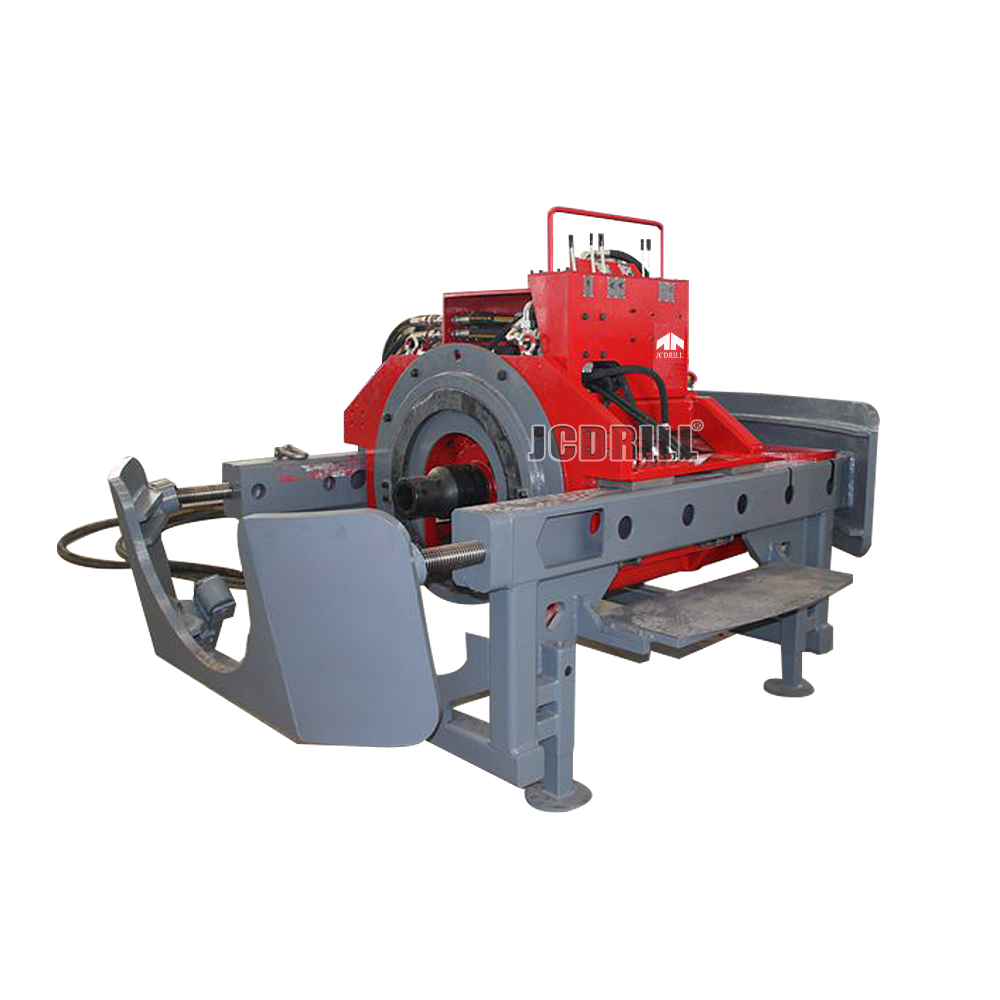

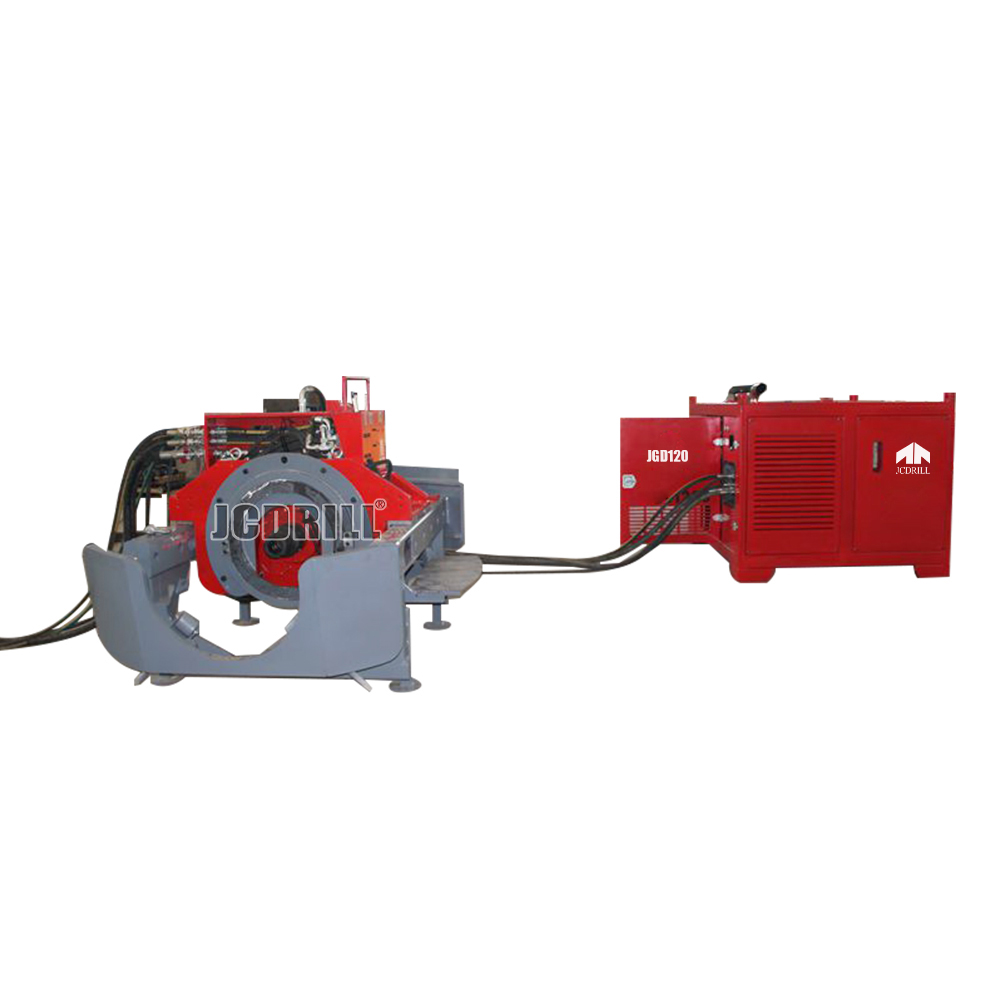

It is specially designed to be used at narrow operating sites, with a length of 3.2m, laying 323m to 630m product pipes,each pipe section of 1m.
All the hydraulic parts used in this rig are globally well-known brands.
The output rotating speeds and torques of the drill rig are adjustable according to the drilled earth formation by the operator.
Customers have options to choose the driving power of the drill rig between CUMMlNS emission standard engine power and electric motor power.
>3.2-meter ultra-short body
>±5mm guiding accuracy
>Diesel and electric dual power options are available
>> Specification
| JGD120S | |||
| Engine | Low rotating speed (r/min) | 0-25 | |

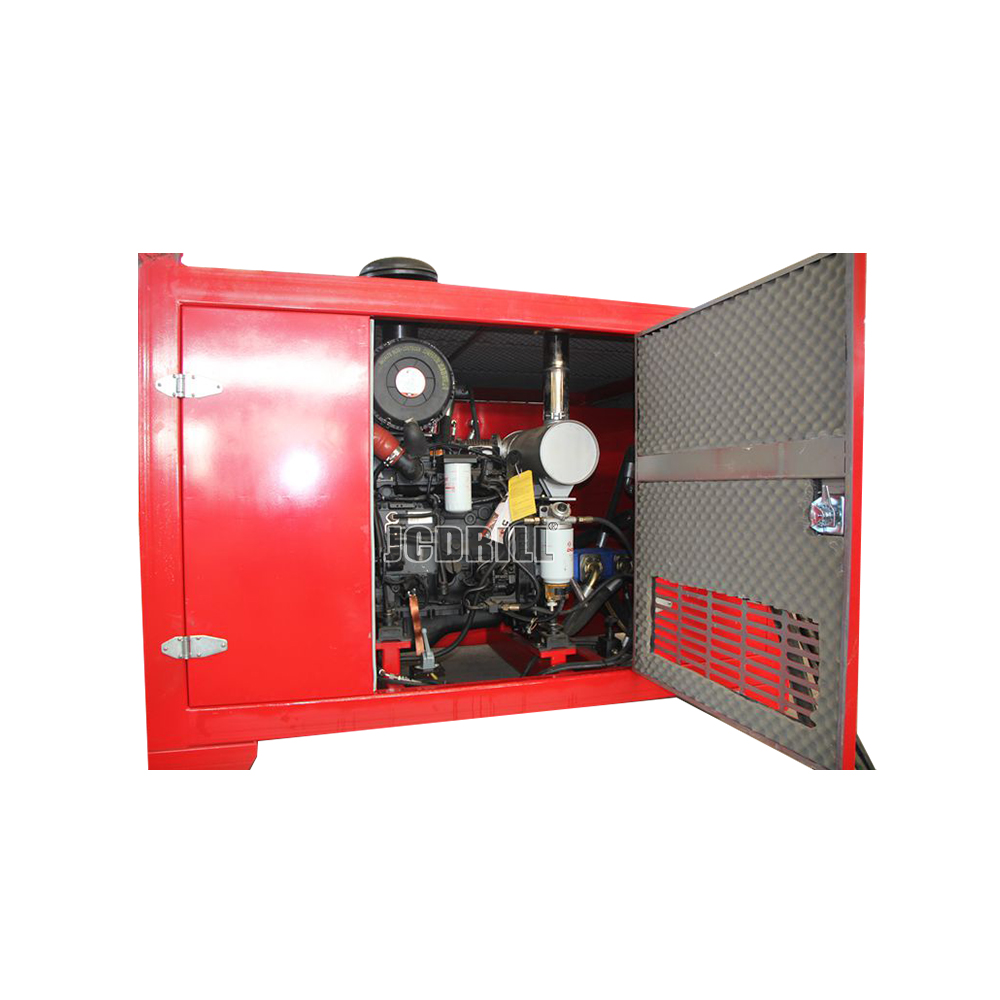

| DCEC | QSB4.5-C160III | One step streke ( mm ) | 300 |
| Rated output at 2200 rpm(Kw) | 119 | Spindle dearance to ground ( mm ) | 673 |
| Electric system ( v ) | 24 | Rotary head drifting distance ( mm ) | 320 |
| Fuel tank copacity(L) | 380 | Pushing speed(m/min) | 0-0.5 |
| Hydraulic systemn (Mpa) | 24 | 0-1.25 | |
| Auxiliary hydraulic system pressure(Mpa) | 20 | Pushing force (t) | 120 |
| Hydr. oil tank capacity (L ) | 850 | Duct tube diameteroptional( mm ) | 325-711 |

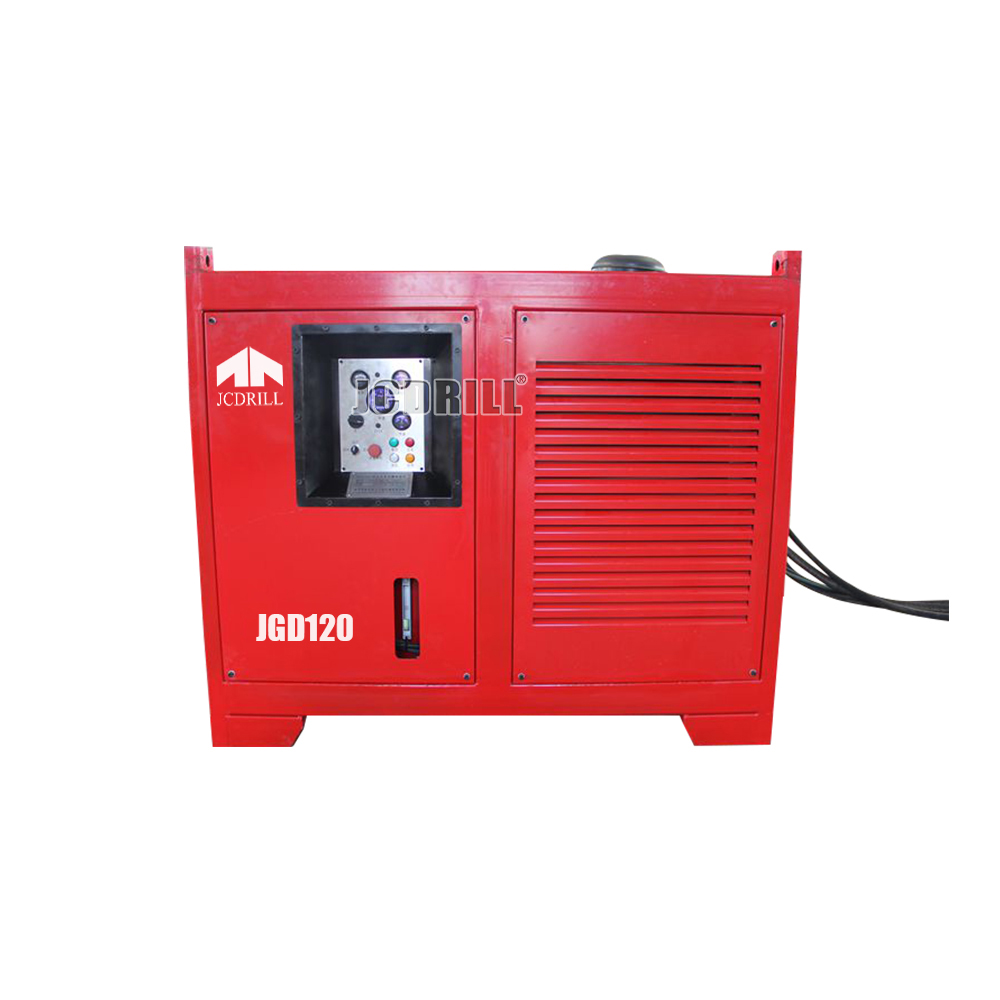

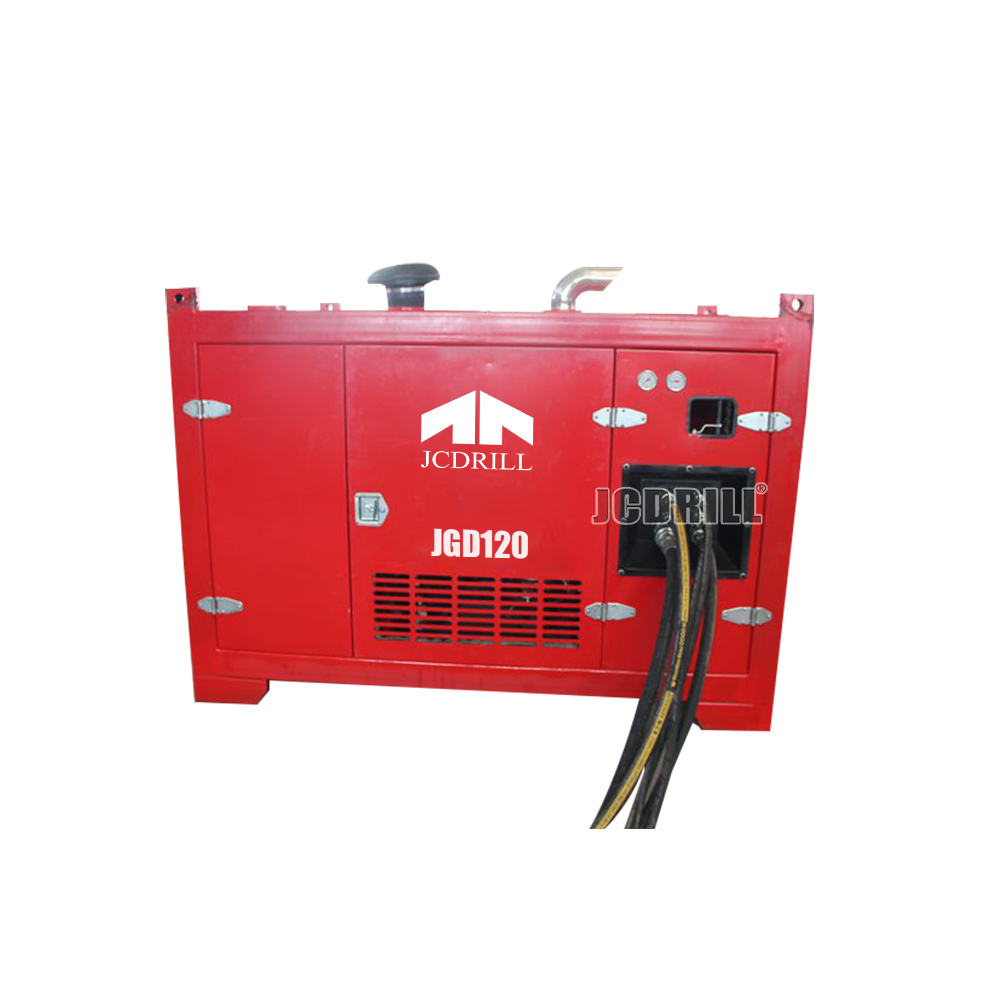

| Max. torque at low speed (Nm) | 24000 | Dimension af power pack ( mm ) | 2280 x1890 x1620 |
| High rotating speed (r/min) | 0-50 | Pexer pack weight ( Kg ) | 2400 |
