Maximum torque: 13600 Nm
Given progress:3500 mm
Power type: Diesel + Electric motor
>> Application

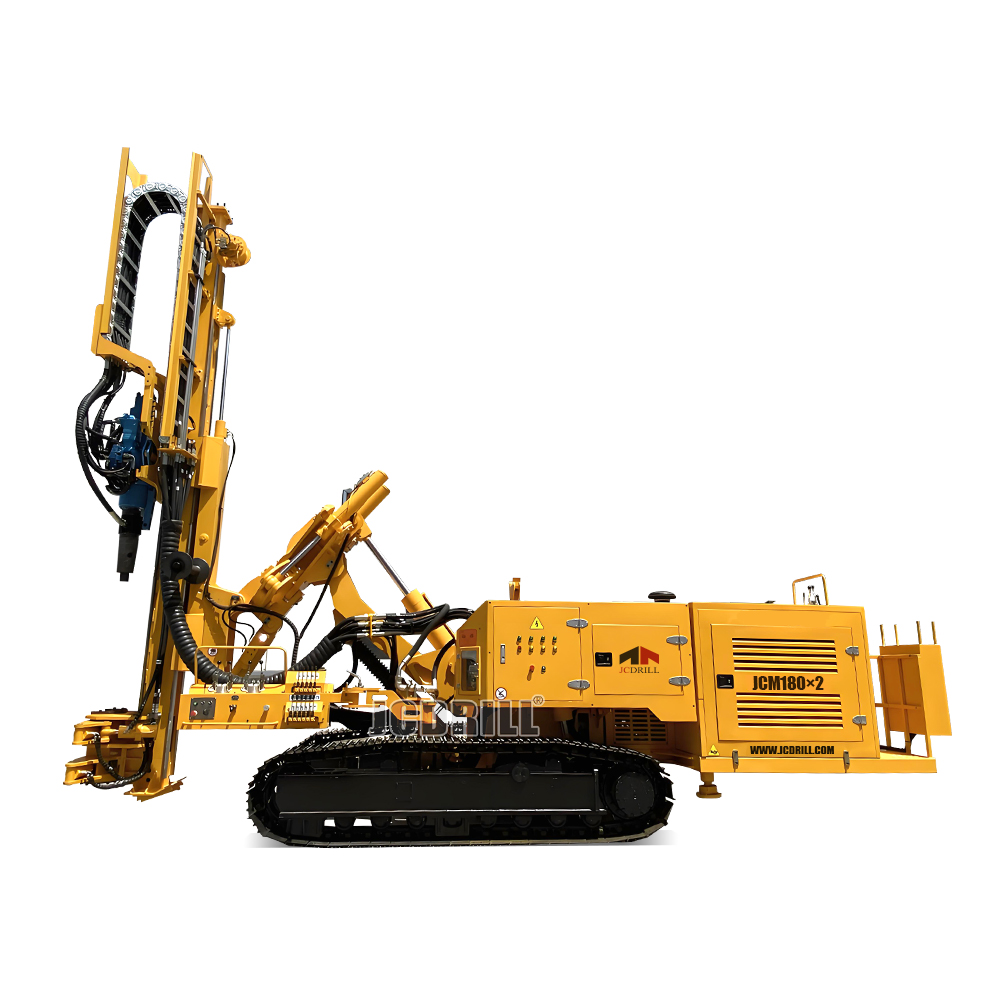

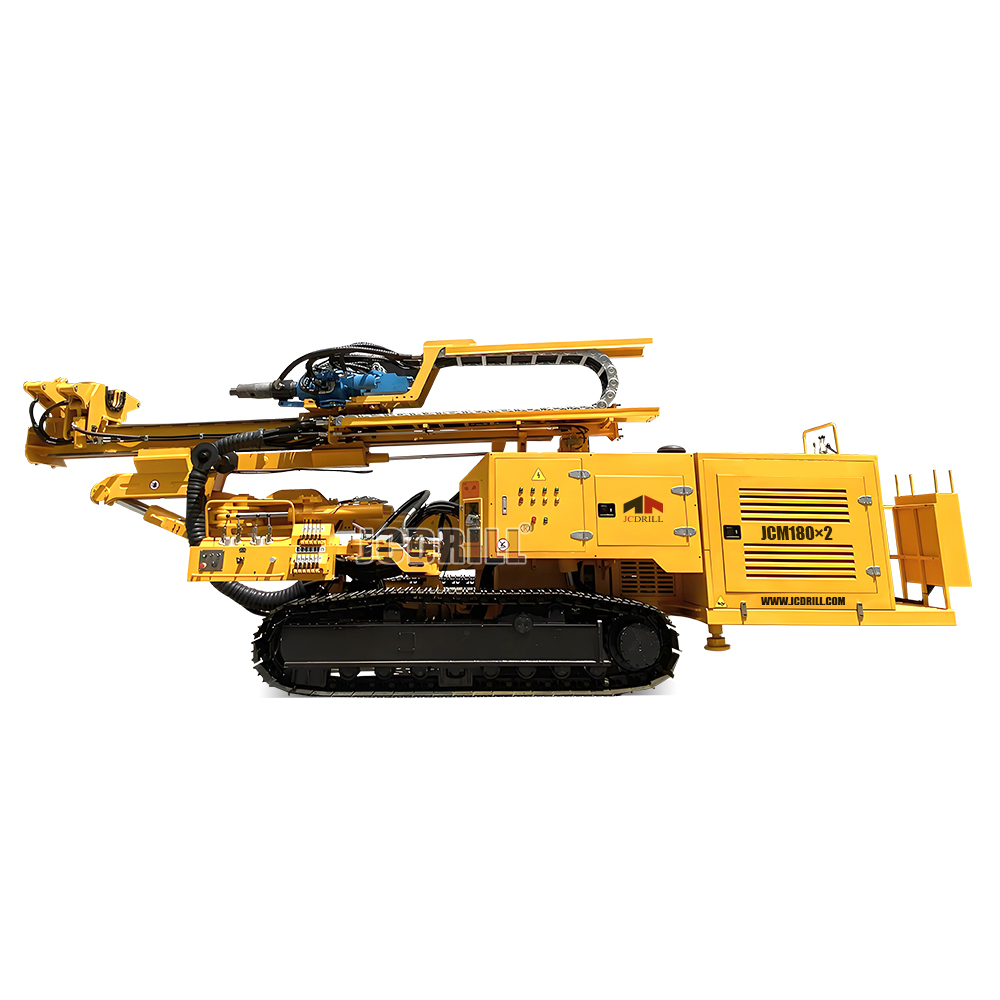

The JCM180S engine and electric motor-driven hybrid anchor drilling rig. It is driven either with a diesel engine or an electric motor,make it work more efficiently and more environmentally friendly.
Share
PRODUCT DESCRIPTION
>> Characteristics
The JCM180S engine and electric motor-driven hybrid anchor drilling rig. It is driven either with a diesel engine or an electric motor,make it work more efficiently and more environmentally friendly. With electric motor-driven mode, the drill rig can be operated without noisy and harmful emissions, suitable for working in the densely populated construction site. When the electric power supply is not convenient the drive mode can be shifted to diesel engine. The usage of this drill rigis much wider. And the operation cost of this rig is much lower for the construction customers.
Dual power can be freely switched: driven by a diesel engine (132kW) or an electric motor (90kW+15kW), suitable for various construction scenarios.
Green construction: Zero emissions and low noise in electric mode, perfectly meeting the environmental protection requirements of the city.
High efficiency and energy saving: The hydraulic system is optimally designed, reducing energy consumption by 15% and increasing drilling efficiency by 20%.
Intelligent control: The digital instrument panel monitors the power status in real time, making operation more convenient.
>> Specification
| JCM180S | |||
| Engine Model No. | QSB5.9-C180 III | Percussion frequency(min1) | 1350 |
| Power of electric motor(kW ) | 90KW+15KW | Feed stroke(mm) | 3500 |
| Rated power(kW) | 132kW @2200rpm | Feed force(kN ) | 38 |
| crawler type | LG-154 | Retraction force ( kN ) | 76 |
| Motor | Double-speed | Feed rate(m/min ) | 0~16 |
| Tramming speed(km/h) | 1.8/2.7 | 0~63 | |
| Ground pressure( N/cm2 ) | 5.8 | Retraction rate(m/min) | 0~8.5 |
| Gradeability(°) | 25 | 0~32 | |
| Rotation rate at high gear(r/min ) | 0~80、0~160 | Pattern | Hydro-cylinder + Chain |
| Rotation rate at low gear(r/min ) | 0~55、0~110 | Clamp range(mm) | 60~219 |
| Torque range at high gear ( Nm ) | 5800/11600 | Maximum passing diameter(mm) | 260 |
| Torque range at low gear( Nm) | 6800/13600 | Dimension(mm) | 8200X2280X2800 |
| Impact work(N.m) | 750 | Weight(T) | 16 |
