Maximum torque: 13600 Nm
Given progress:3500 mm
Power type: Diesel engine
>> Application
JCM180 hydraulic anchor drilling rig with its articulation system finds its usage at multi-position and multi-angle drilling works with easy operation. The rotation speed of its rotary head is much higher so that keeps its penetration speed much faster.
Share
PRODUCT DESCRIPTION
>> Characteristics

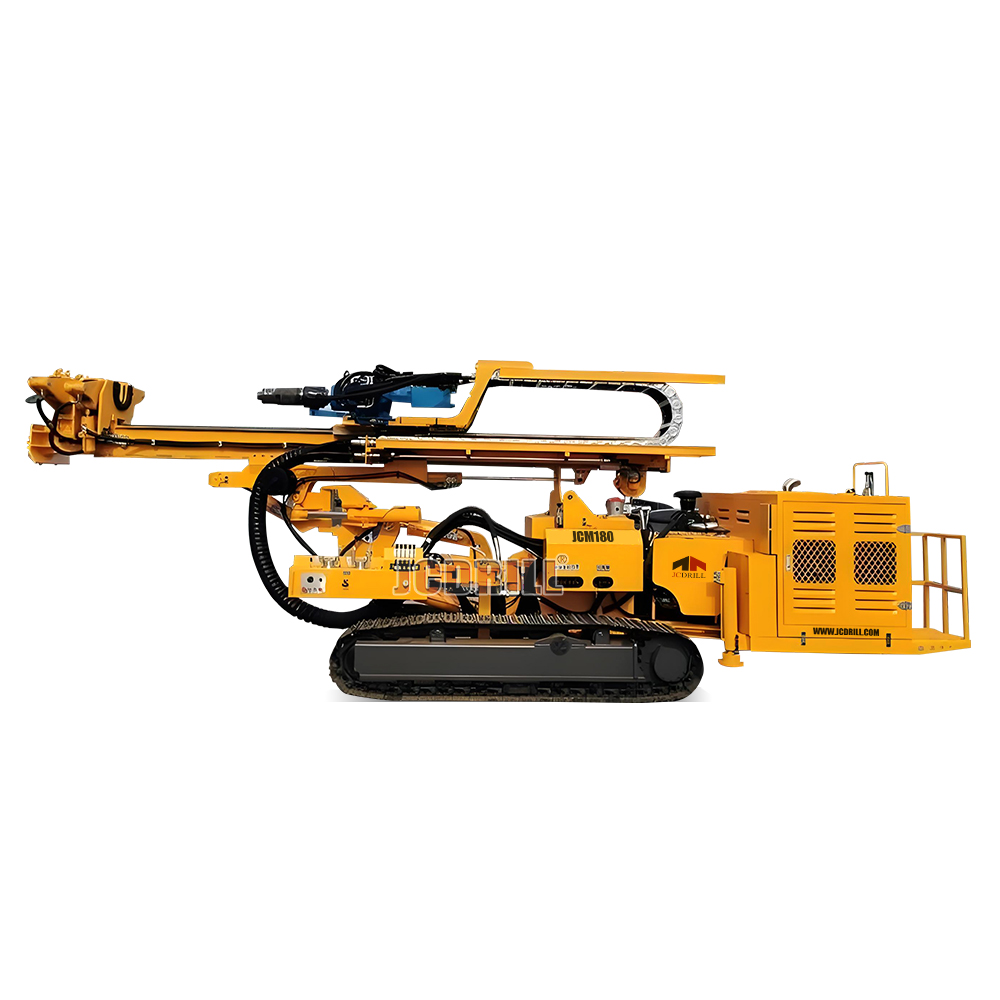

The JCM180 fully hydraulic anchoring drilling rig is a high-performance drilling rig with a swing frame structure design, specially optimized for multi-angle and multi-directional rock and soil anchoring construction. Its high-speed power head design significantly enhances the construction efficiency of soil anchors and is suitable for complex working conditions such as slope support, foundation reinforcement, and tunnel engineering.

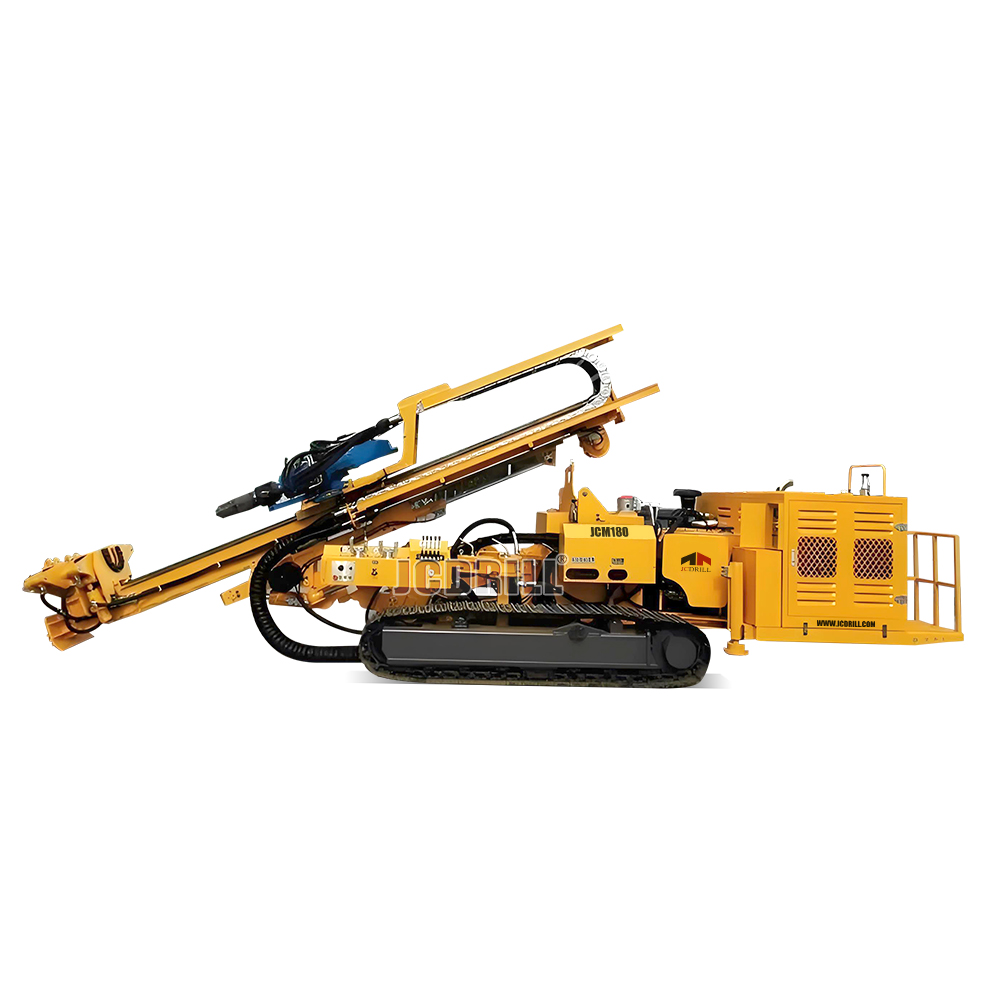

Flexible construction: The swing frame structure supports a wide range of Angle adjustments and is adaptable to complex terrains.
High-efficiency drilling: High-speed power head, enhancing the drilling speed in soft soil and fractured strata.
Stable and reliable: Dual-speed hydraulic system, balancing high torque and high efficiency.
Environmental protection and energy conservation: Complies with Tier III emission standards, and electric drive configuration is optional.
>> Specification
| BHD-180G | |||
| Engine Model No. | QSB5.9-C180 | Percussion frequengy(min¹) | 1350 |
| Emission level | I | Feed stroke(mm) | 3500 |
| Rated power(kW) | 132kw @2200rpm | Feed force(kN) | 38 |
| Caterpillar Band Model No. | LG-135 | Retraction force(kN) | 76 |
| Motor | Double-speed | Feed rate(m/min) | 0~16 |
| Tramming speed(km/h) | 2.1/3.0 | 0~63 | |
| Ground pressure(N/cmn’) | 5.3 | Retraction rate(m/min) | 0~8.5 |
| Gradeability(°) | 25 | 0~32/65 | |
| Rotation rate at high gear(r/min) | 0~80、0~160 | Pattern | Hydro-cylinder + chain |
| Rotation rate at low gear(r/min) | 0~55.0~110 | Camprange(mm) | 60~219 |
| Torque range at low gear(Nm) | 5800/11600 | Maximum passing diameter(mm) | 260 |
| Torque range at high gear(Nm) | 6800/13600 | Dimension(mm) | 6700x2280x2600 |
| Impact work(N·m) | 750 | Weight(T) | 11 |
