Maximum torque: 13600 Nm
Given progress:3500 mm
Power type: Electric
>> Application

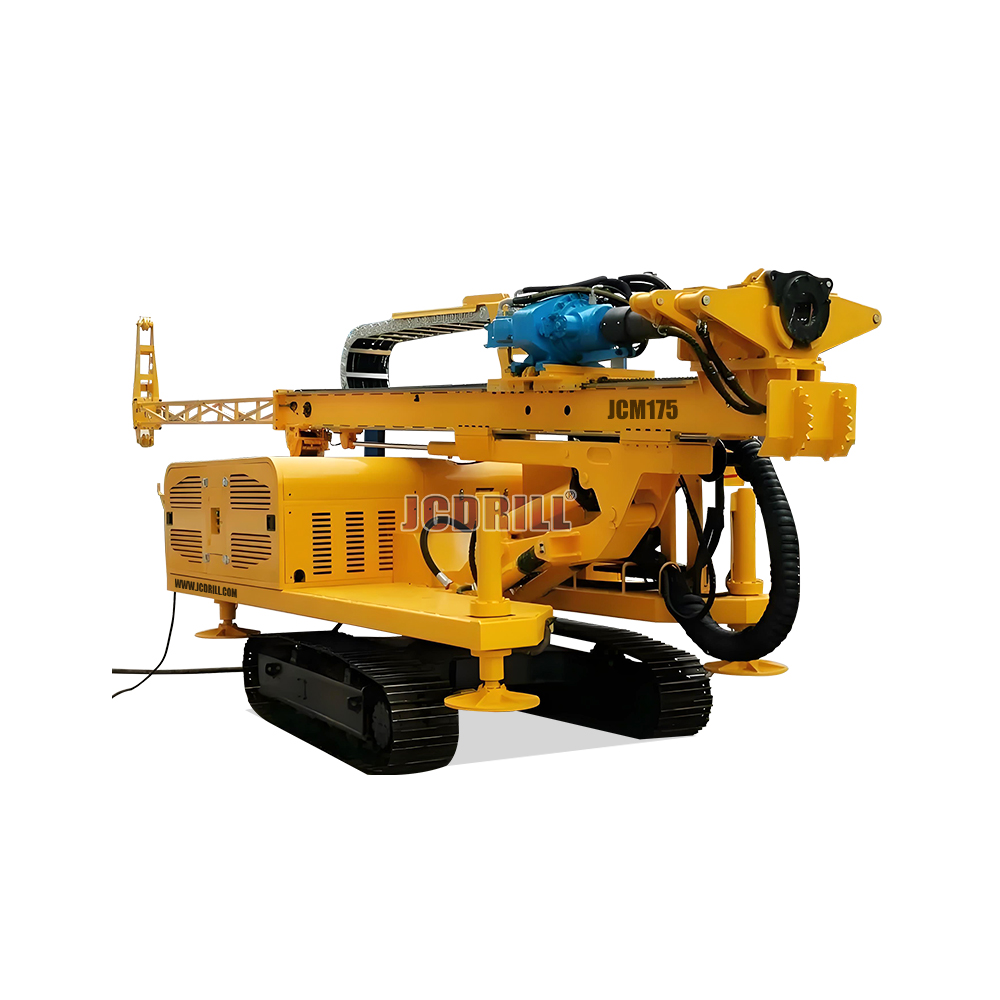

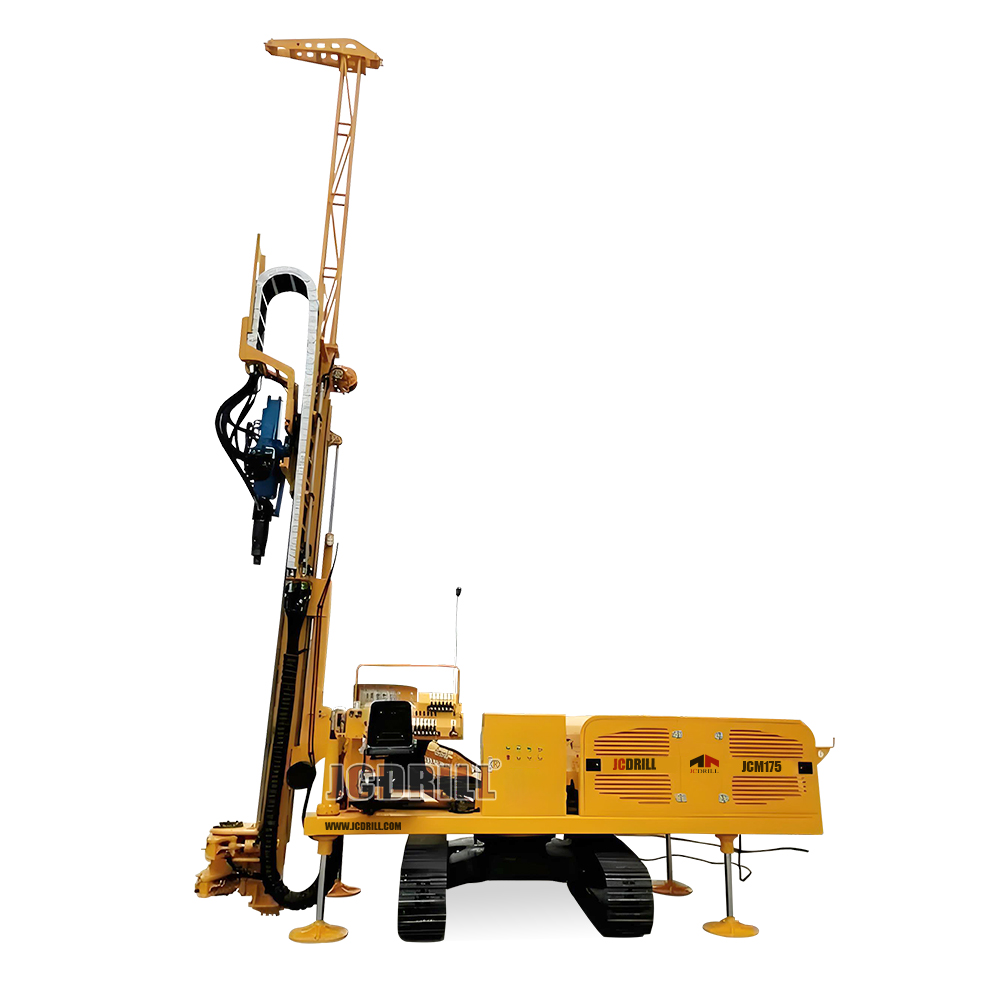

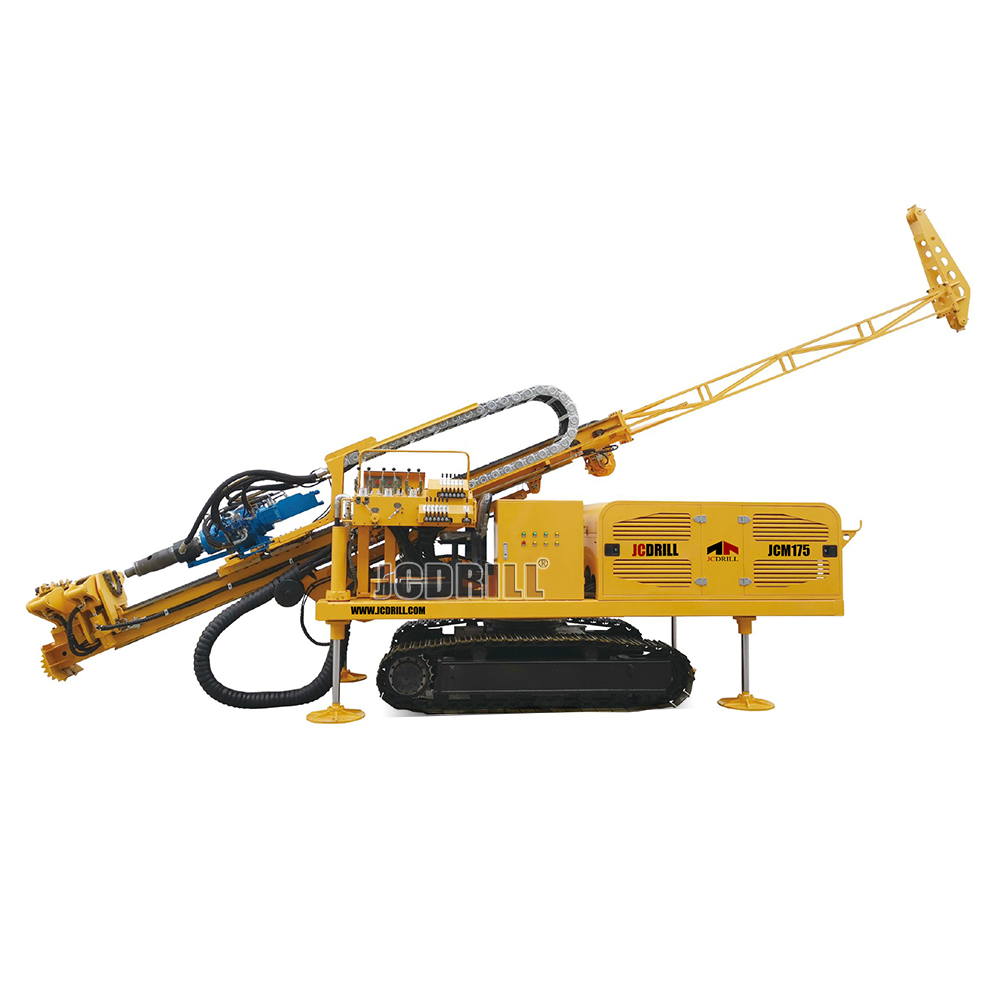

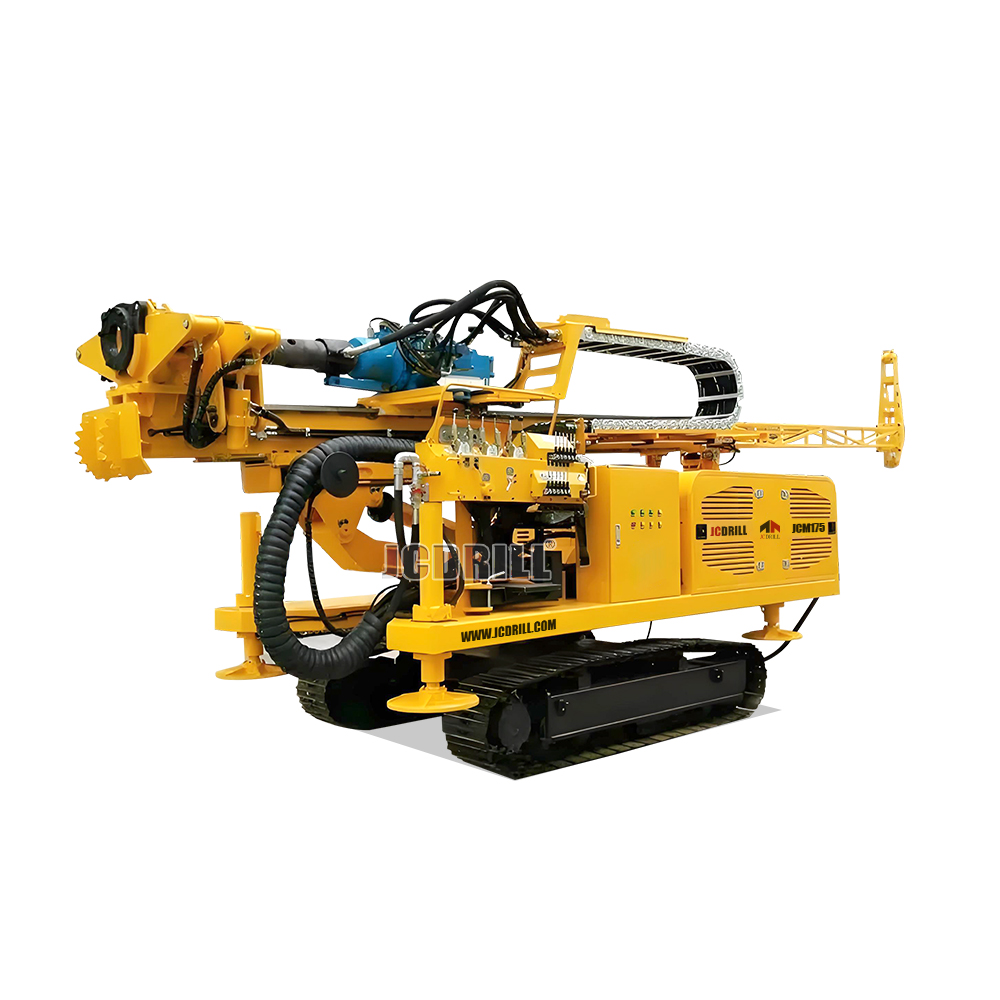

JCM175 hydraulic anchor drilling rig with a center-rotating table is suitable for multi-position drilling. With a compact and sturdy structure, it can be used for anchor borehole, anchor nail borehole, and root pile borehole drilling with multiple drilling techniques at higher drilling efficiency.
Share
PRODUCT DESCRIPTION
>> Characteristics
The JCM175 fully hydraulic anchoring drilling rig is a compact, highly efficient and stable multi-functional drilling rig, specially designed for working conditions such as rock and soil anchoring, geological engineering, and micro-pile construction. Equipped with a central rotary table, it supports multi-station drilling and is suitable for complex construction environments. It is widely used in slope stability, foundation reinforcement, tunnel support and other projects.
High-efficiency construction: Dual-speed drive, high-torque output, enhancing drilling efficiency.
Flexible adaptability: Compact structure, suitable for operation in narrow Spaces.
Stable and reliable: The hydraulic chain feed system ensures construction accuracy.
Environmental protection and energy conservation: Electric power drive is optional to meet the requirements of low noise and zero emissions.
>> Specification
| JCM175 | |||
| Rated power(kW) | 55+55+18.5+2.2 | Feed stroke(mm) | 3500 |
| Caterpillar Band Model No. | LG-135 | Feed force(kN) | 38 |
| Motor | Double-speed | Retraction force(kN) | 76 |
| Tramming speed(m/h) | 580/820 | Feed rate(m/min) | 0~18.5 |
| Ground pressure(N/cm?) | 5.68 | 0~75 | |
| Gradeability(°) | 25 | Retraction rate(m/min) | 0~9.5 |
| Rotation rate at low gear(r/min) | 0~36、0~72 | 0~38.5 | |
| Rotation rate at high gear(r/min) | 0~36/66/79 | Pattern | Cylinder + Chain |
| 0~72/132/158 | Clamp range(mm) | 60~219 | |
| Torque range at low gear(Nm) | 5800/11600 | Maximum passing diameter(mm) | 260 |
| Torque range at high gear(Nm) | 6800/13600 | Dimension(mm) | 7000x2200x2900 |
| lmpact work(N.m) | 750 | Weight(T) | 17 |
| Percussion frequency(min*) | 1400 | ||
