Maximum torque: 17000Nm
Given progress:4000 mm
Power type: Diesel engine
>> Application

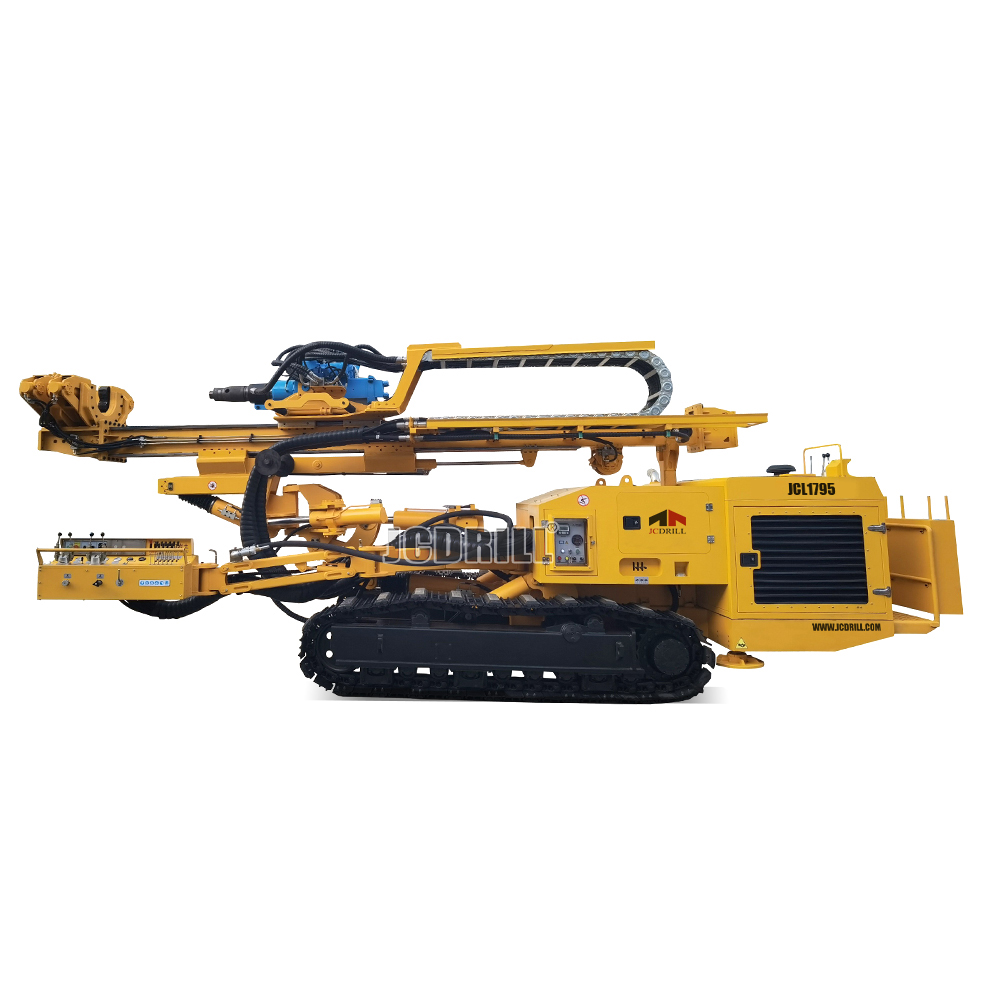

Equipped with an energy-saving and efficient hydraulic system, the JCL1795 -type anchorage rig's strong tophead torque and side shift off from the borehole center, which can be widely used in a variety of drilling techniques.
Share
PRODUCT DESCRIPTION
>> Characteristics
Equipped with an energy-saving and efficient hydraulic system, the BL1795-type anchorage rig's strong tophead torque and side shift off from the borehole center, which can be widely used in a variety of drilling techniques. The 420 mm diameter clamp makes large-bore hole drilling more convenient. The drilling rig has higher stability and is safer and more convenient to operate.
>> Specification
| JCL1795 | |||
| Engine Model No. | QSC8.3-C240 | Percussion frequency(min¹) | 1250 |
| Rated power(kW) | 179KW @2200rpm | Feed stroke(mm) | 4000 |
| Caterpillar Band Model No. | LG-154 | Feed force(kN) | 48 |
| Motor | Double-speed | Retraction force(kN) | 94 |
| Tramming speed(Km/h) | 1.8/3.0 | Feed rate(m/min) | 0-18 |
| Ground pressure ( N/cm? ) | 6.9 | 0-69 | |
| Gradeability(°) | 25 | Retraction rate(m/min) | 0-10 0-72 |
| Rotation rate at low gear (r/min) | 0~38、0~62 | Feeding Pattern | Hydro-cylinder + Chain |
| Rotation rate at high gear(r/min) | 0~76、0~124 | Clamp range(mm) | 60-219/89-406 |
| Torque range at high gear(Nm ) | 9900 | Maximum passing diameter(mm) | 420 |
| Torque range at low gear(Nm ) | 17000 | Dimension(mm) | 8500*2290*3100 |
| Impact work(N.m ) | 1180 | Weight(T) | 17.5 |
