Maximum torque: 15000Nm
Given progress:4200mm
Power type: Diesel engine
>> Application

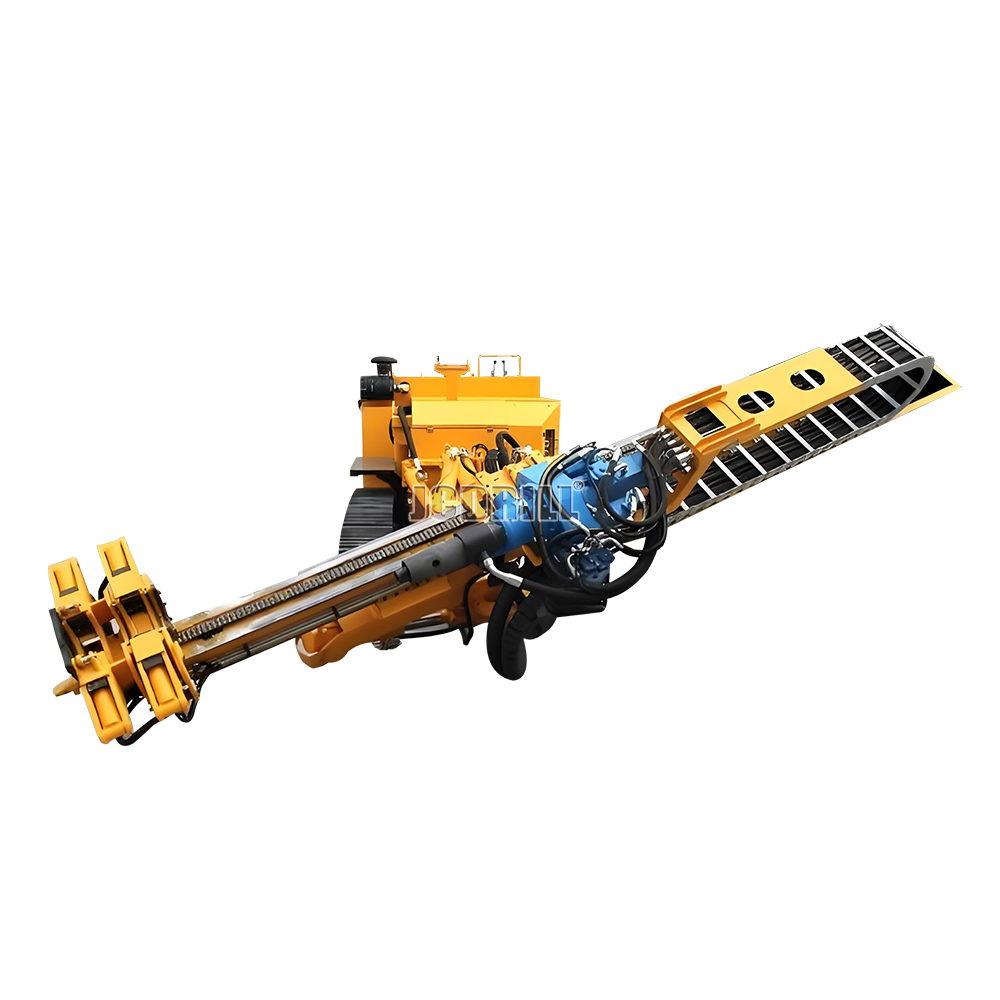

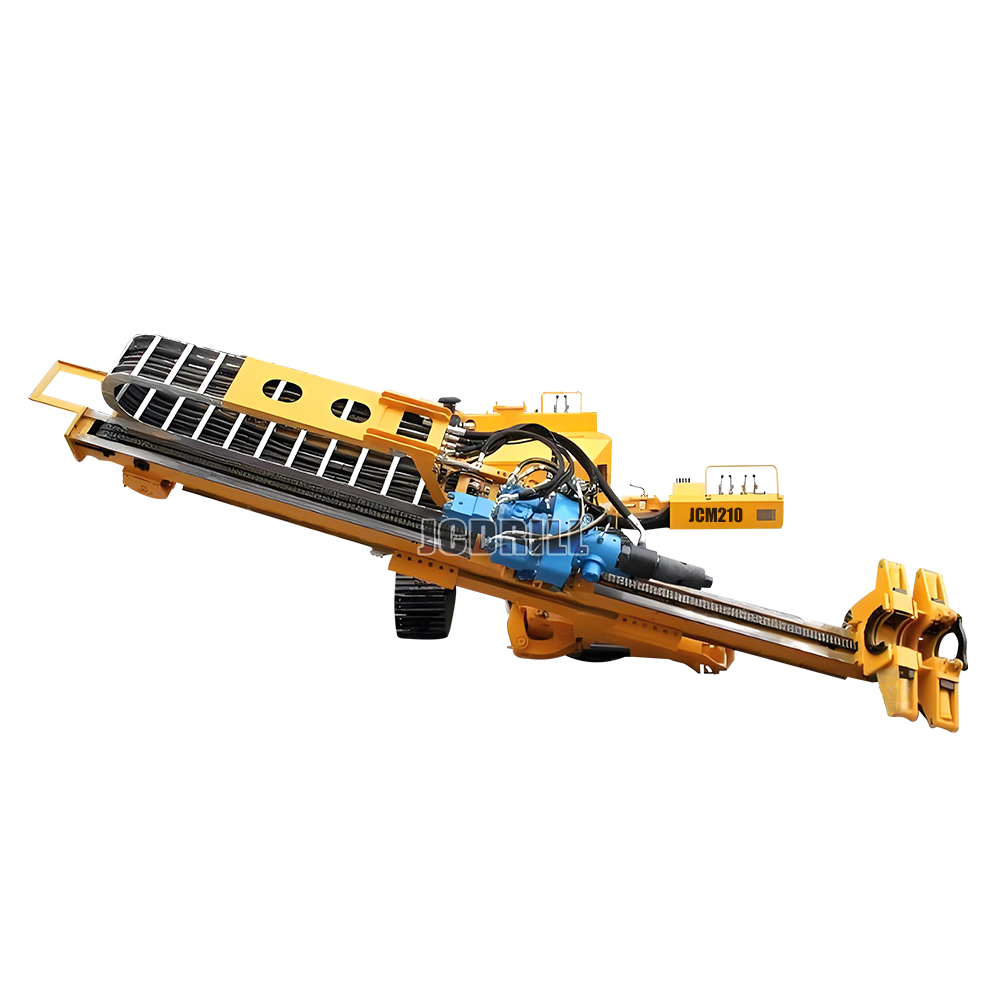

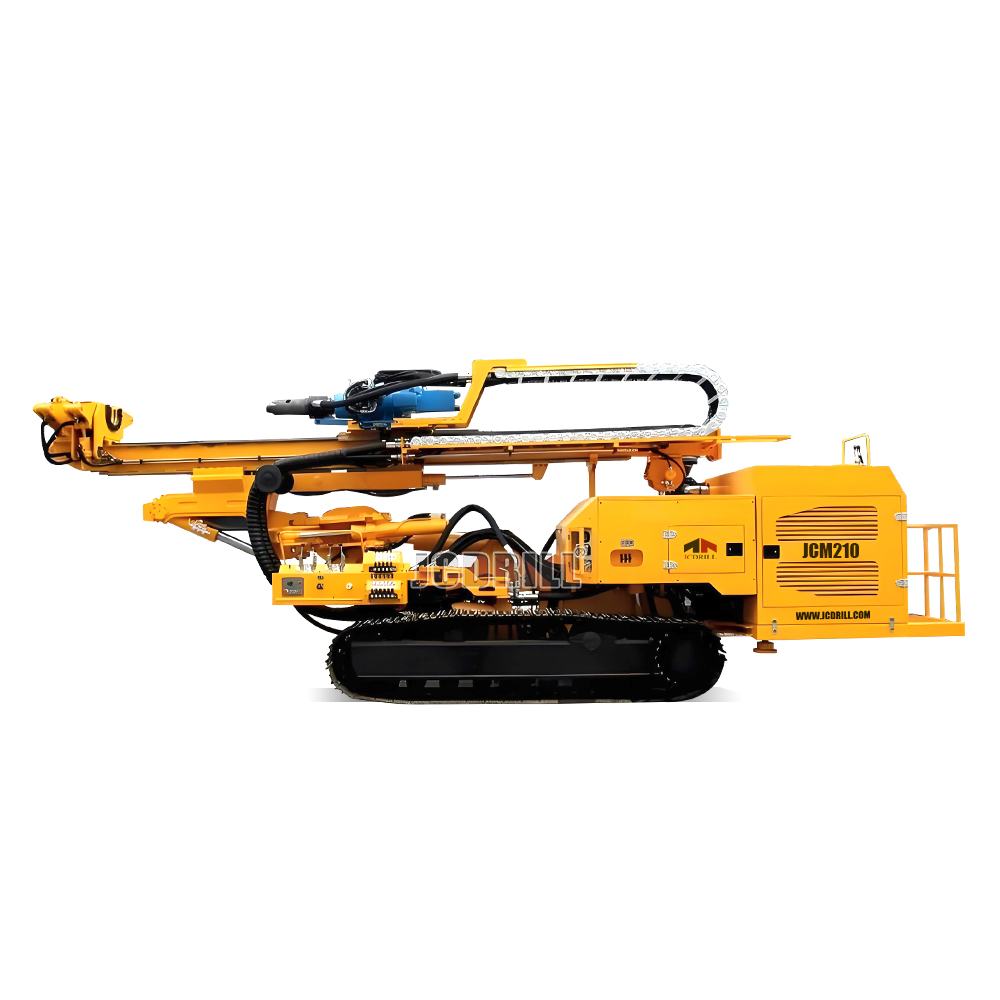

JCM210 full hydraulic anchor drilling rig has enhanced its power input and output power. It is more suitable for complex formation construction and has higher efficiency.
Share
PRODUCT DESCRIPTION
>> Characteristics
The JCM210 fully hydraulic anchoring drilling rig is a high-performance drilling rig specially designed for construction in complex strata. It adopts an enhanced power system, with an output power increase of 20%, and performs outstandingly in harsh geological conditions such as hard rock and pebble layers. It is applicable to high-standard engineering requirements such as deep hole anchoring and foundation treatment.
Super strong power: 154kW high-power engine, easily handling hard rock construction
Deep construction: 4200mm ultra-long operation range, meeting the requirements of deep hole operations
Precise control: Digital Angle monitoring system, drilling accuracy ±0.5°
Reliable and durable: Key components are reinforced in design, increasing service life by 40%
>> Specification
| JCM210 | |||
| Engine Model No. | QSB5.9-C210 | Percussion frequency(min¹) | 1200 |
| Emission level | III | Feed stroke(mm) | 4200 |
| Rated power(kW) | 154kW@2200rpm | Feed force(kN) | 55 |
| Caterpillar Band Model No. | LG-154 | Retraction force(kN) | 90 |
| Motor | Double-speed | Feed rate(m/min) | 0~18 |
| Tramming speed(km/h) | 1.7/2.5 | 0~55 | |
| Ground pressure(N/cm2) | 5.9 | Retraction rate(m/min) | 0~11 |
| Gradeability(°) | 25 | 0~33 | |
| Rotation rater/min(r/min) | 0~88、0~132 | Pattern | Hydro-cylinder + Chain |
| 0~44、0~66 | Clamprange(mm) | 60~219 | |
| Torque range at low gear(Nm) | 8600 | Maximum passing diameter(mm) | 260 |
| Torque range at high gear(Nm) | 15000 | Dimension(mm) | 8200x2280x2800 |
| Impact work(N·m) | 750 | Weight(T) | 14.5 |
