Maximum torque: 17000 Nm
Given progress:4000 mm
Power type: Diesel engine
>> Application

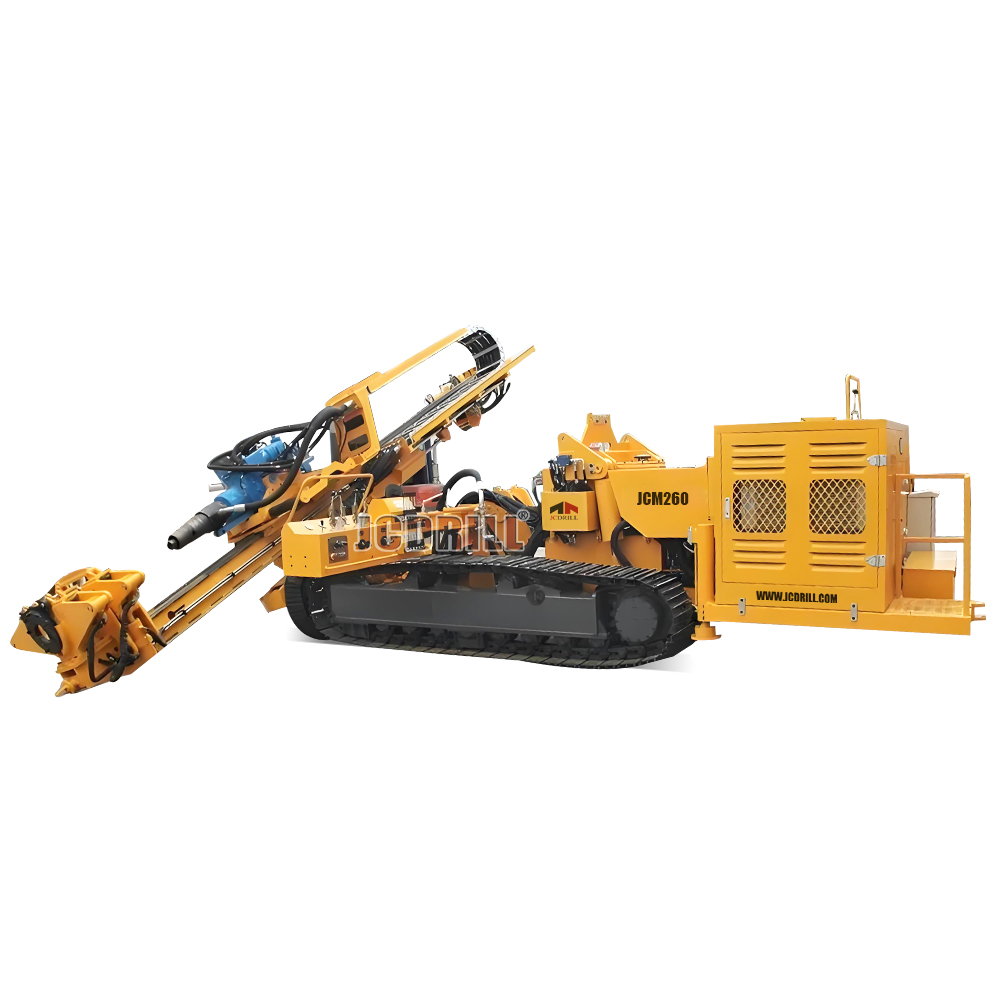

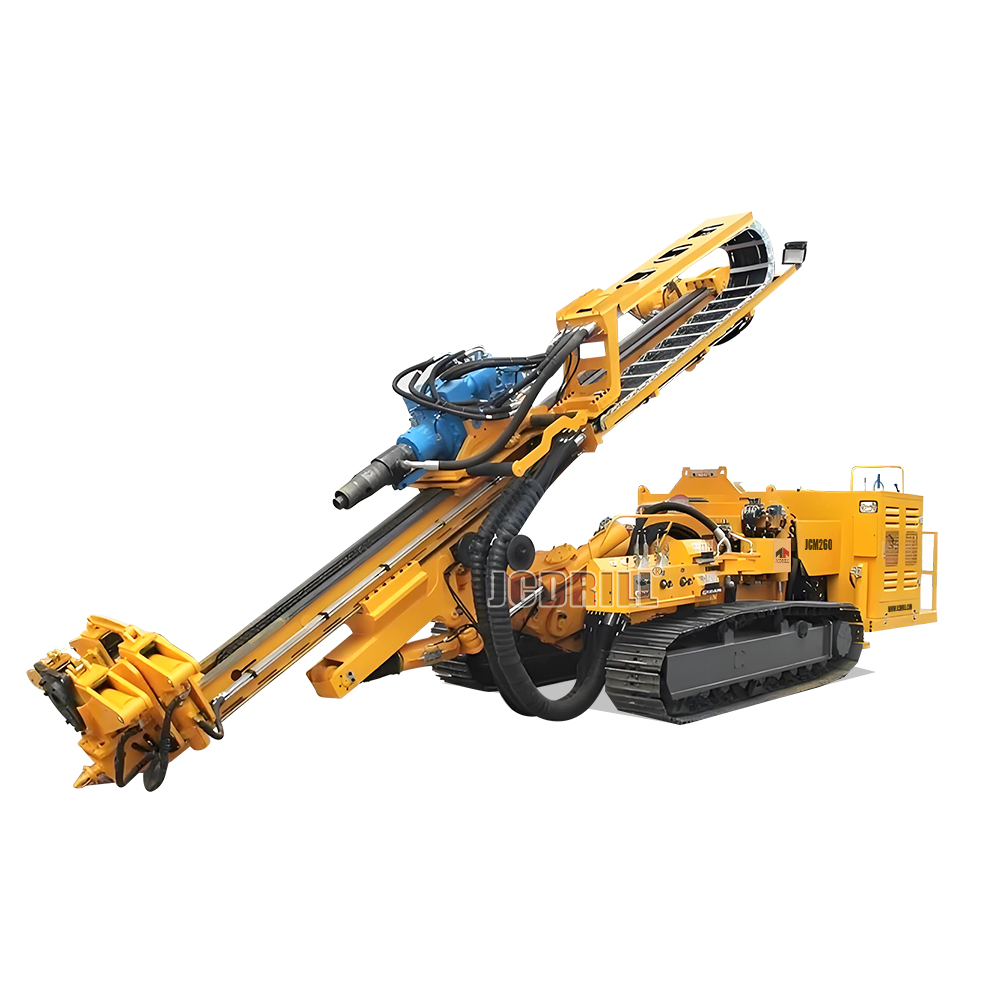

JCM260 hydraulic anchor drilling rig with a more powerful engine ensures its powerful output. lt can be used to drill with efficiency in harder formations such as formations with pebble and boulders.
Share
PRODUCT DESCRIPTION
>> Characteristics
JCM260 hydraulic anchor drilling rig with a more powerful engine ensures its powerful output. ltcan be used to drill with efficiency in harder formations such as formations with pebble and boulders.
194kW super powerful - industry-leading QSG8.3-C260 engine
17,000 Nm super large torque - easily handle pebble layer/hard rock construction
EU Stage V Environmental Protection Standard - Meeting the world's strictest emission requirements
Intelligent control system - 7-inch touch screen for real-time monitoring of construction parameters
>> Specification
| BHD-260 | |||
| Engine Model No. | QSC8.3-C260-30 | Percussion frequency(min¹) | 1250 |
| Emission level | III | Feed stroke(mm) | 4000 |
| Rated power(kW) | 194kW @2200rpm | Feed force(kN) | 100 |
| Caterpillar Band Model No. | LG-154 | Retraction force(kN) | 100 |
| Motor | Double-speed | Feed rate(m/min) | 0~12 |
| Tramming speed(km/h) | 1.5/2.3 | 0~54 | |
| Ground pressure(N/cm2) | 7.5 | Retraction rate(m/min) | 0~12 |
| Gradeability(°) | 25 | 0~54 | |
| Rotation rater/min(r/min) | 0~100 | Pattern | Motor + Gear box + Chain |
| 0~50 | Clamprange(mm) | 60~219/89~300 | |
| Torque range at low gear(Nm) | 9900 | Maximum passing diameter(mm) | 300 |
| Torque range at high gear(Nm) | 17000 | Dimension(mm) | 8200*2290*3000 |
| Impact work(N·m) | 1180 | Weight(T) | 18 |
