Maximum torque: 27000 Nm
Given progress:4200 mm
Power type: Diesel engine
>> Application

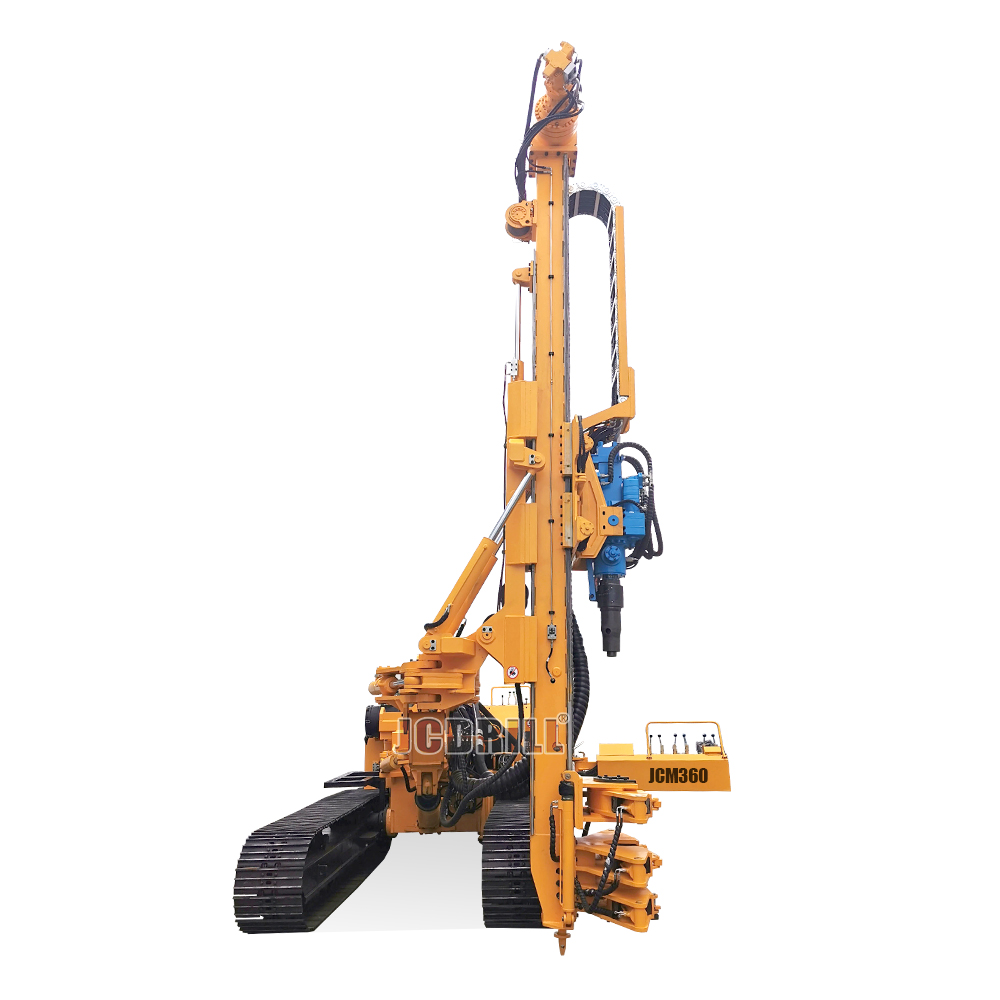

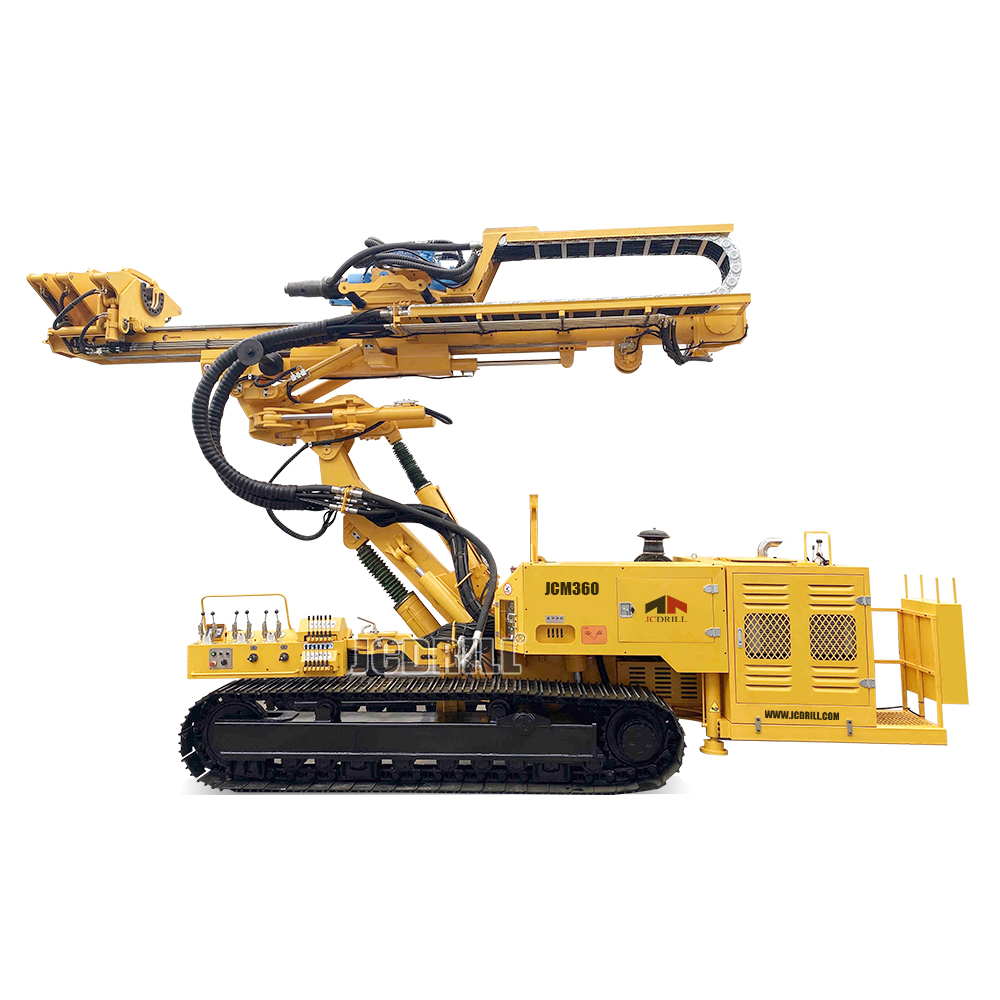

JCM360 The drill rig meets the needs for large diameter micro-pile borehole and deep-borehole drilling.
Share
PRODUCT DESCRIPTION
>> Characteristics
Its articulating structure of flexible multi-articulation is more convenient for the operator to observe the borehole mouth. Loading and unloading drill rods is much easier with three clamps. The auxiliary azimuth monitoring system makes the drill rig setup borehole position more accurate and quicker, greatly saving set-up time and improving overall working efficiency.
>>Low speed and high torque (27,000 Nm)
>>High-speed precision drilling mode
>>Impact-rotation compound mode
>>360° rotation + 2.2-meter lifting range
>>Shockproof suspended seat
>>Integrated control with multi-functional handles
>> Specification
| BHD-360 | |||
| Rated power(kW) | 264KW @2100RPM | Feed stroke(mm) | 4200 |
| Caterpillar Band Model No. | LG-171 | Feed force(kN) | 220 |
| Motor | Double-speed | Retraction force(kN) | 220 |
| Tramming speed(Km/h) | 1.6/2.4 | Feed rate(m/min) | 0~12.5 |
| Ground pressure(N/cm²) | 6.5 | 0~66 | |
| Gradeability(°) | 25 | Retraction rate(m/min) | 0~12.5 |
| Rotation rate at high gear(r/min) | 0~62/124 | 0~66 | |
| 0~41/82 | Pattern | Motor+Reducer+Chain | |
| Torque range at high gear(Nm) | 13500 | Clamp range(mm) | 60~219/89~273 |
| Torque range at low gear(Nm ) | 27000 | Maximum passing diameter(mm) | 300 |
| Impact work(N.m) | 1180 | Dimension(mm) | 9200*2540*3150 |
| Percussion frequency( min¹ ) | 1250 | Weight(T) | 21 |
