Maximum torque: 28000Nm
Propulsion force:160 T
Power type: Diesel/Electric motor
>> Application

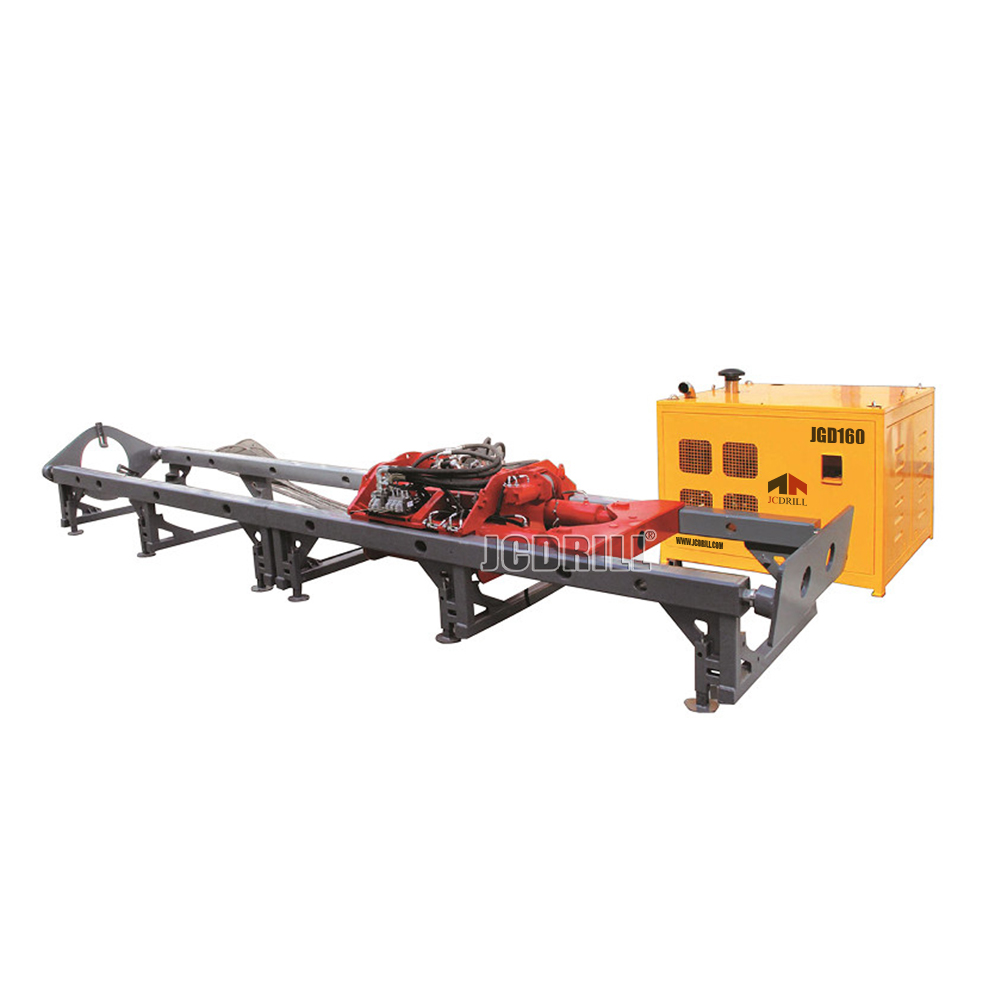

The JGD160 guided auger boring drill rig is a kind of underground pipe line laying machine, lately developed by our company, which is energy saving, efficient and flexible in use.
Share
PRODUCT DESCRIPTION
>> Characteristics
The optical guiding technique has been used in the drill rig for laying the pipes to hit the preset target, fully meet the preset azimuth requirement accurately. The drill rig finds its usage in pipeline laying for municipal underground waterdraining pipelines, heat supply pipelines, gas supply pipelines, water supply pipelines, power supply or communication cable underground passage construction, and so on. No disruption for surface traffic and other facilities while pipeline installation with this guided auger boring drill rig. lt can also be used for pipe shed support projects of tunneling and railway bed consolidation.
>> Specification
| JGD160 | |||
| Engine | Low rotating speed (r/min) | 0-27 | |
| DCEC | 6CTA8.3-C215 | One step streke ( mm ) | 1200 |
| Rated output at 2200 rpm(Kw) | 160 | Spindle clearance to ground ( mm ) | 650 |
| Electric system ( v ) | 24 | Rotary head drifting distance ( mm ) | 320 |
| Fuel tank copacity(L) | 380 | Pushing speed(m/min) | 0-0.4 |
| Hydraulic systemn (Mpa) | 26 | Pushing force (t) | 160 |
| Auxiliary hydraulic system pressure(Mpa) | 20 | Duct tube diameteroptional( mm ) | 400-800 |

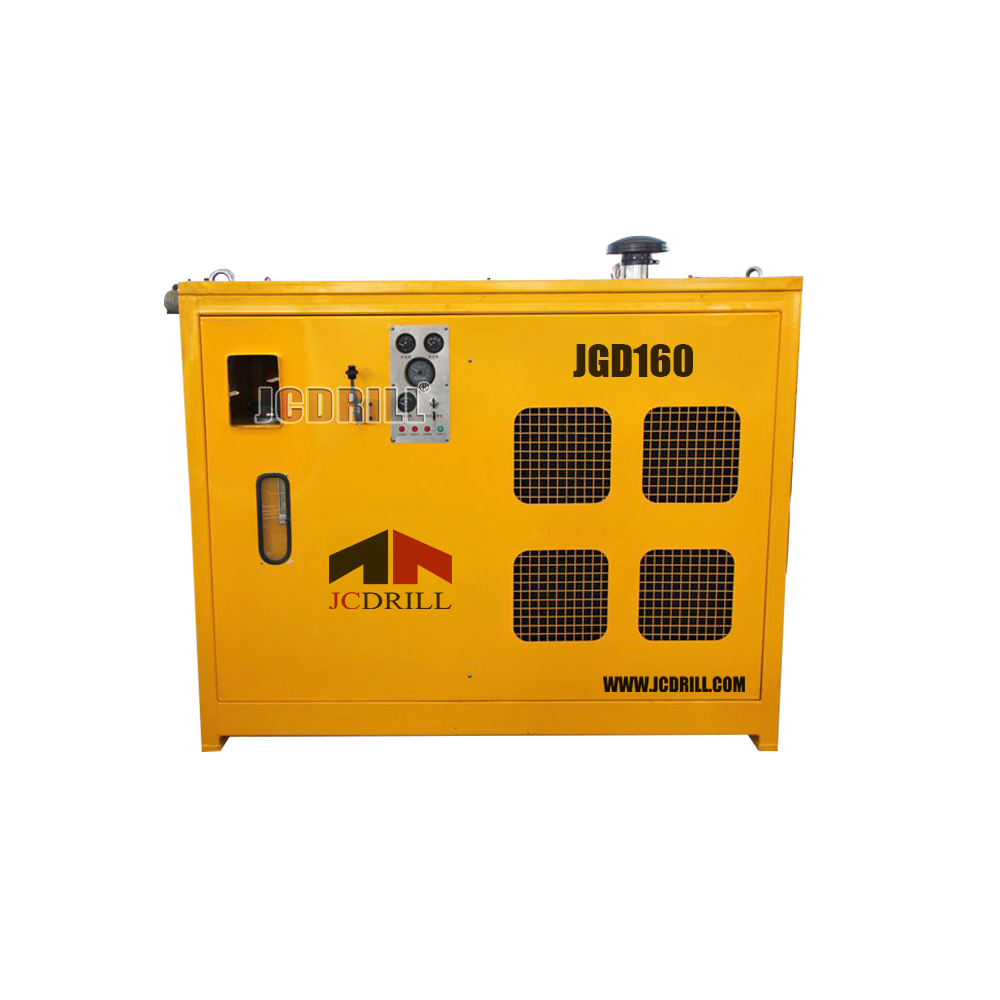

| Hydr. oil tank capacity (L ) | 850 | Dimension af power pack ( mm ) | 2280x1890x1650 |
| Max. torque at low speed (Nm) | 28000 | Pexer pack wreight ( Kg ) | 2800 |
| High rotating speed (r/min) | 0-54 | ||
