CWD400T multi-function water well drilling rig completed and will soon be shipped

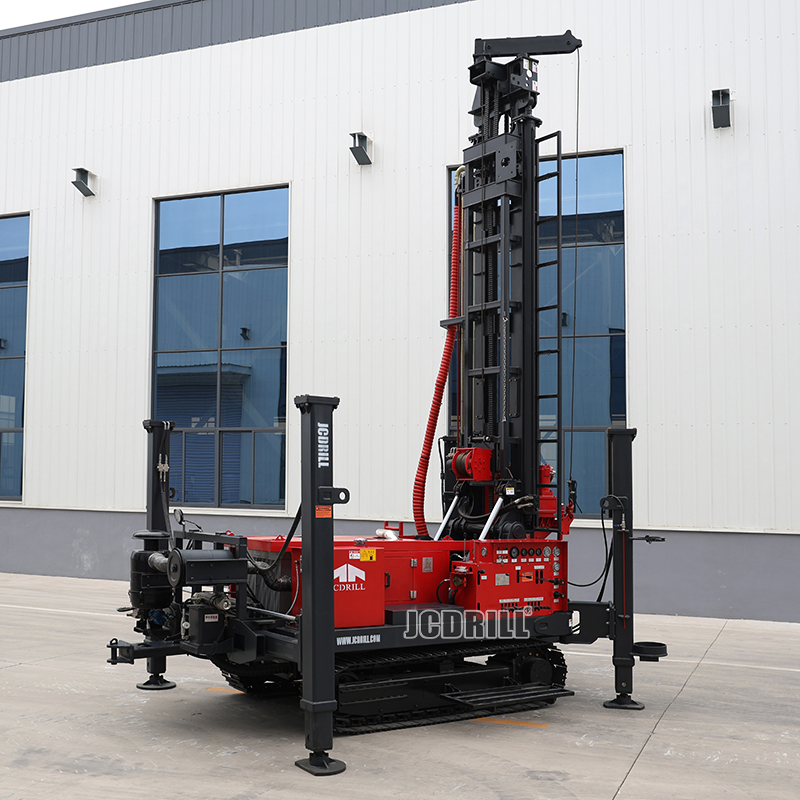

The CWD400T Multi-Functional Water Well Drilling Rig.  This state-of-the-art rig is now ready to be delivered to customers, offering unparalleled performance and versatility for a wide range of drilling applications.

The CWD400T is designed to handle both soft formations and rock areas with ease.Utilizing mud drilling for soft layers and DTH (Down-the-Hole) air drilling for hard rock, this versatile rig ensures efficient and precise drilling in diverse environments.Its advanced features make it an ideal choice for industrial, agricultural, and geotechnical applications.

Features

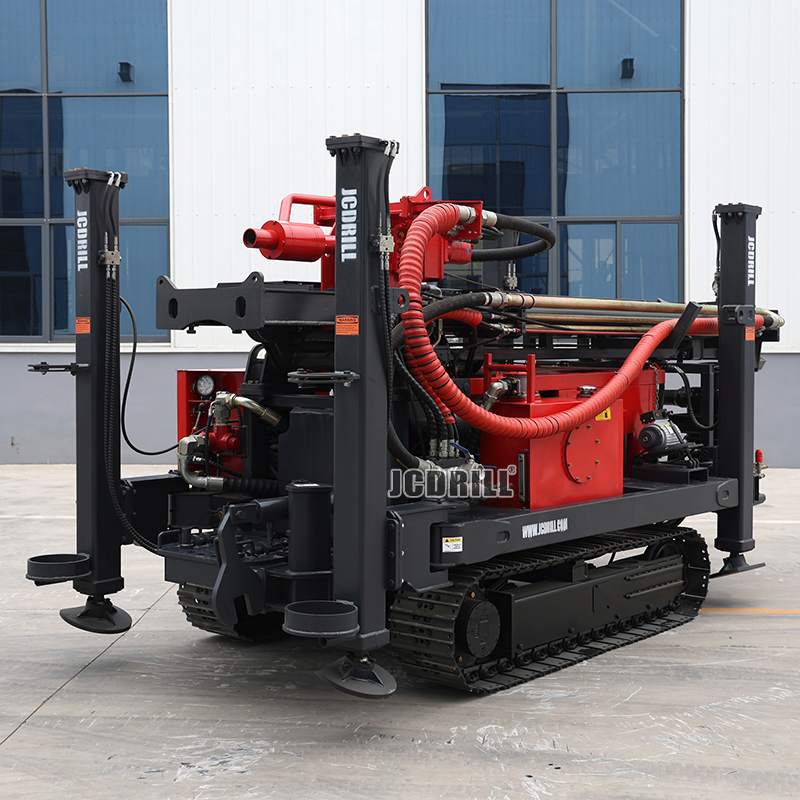

Hydraulic Retractable Legs: Four hydraulically controlled supporting legs provide unmatched stability, ensuring safe and efficient operations even on uneven terrain.

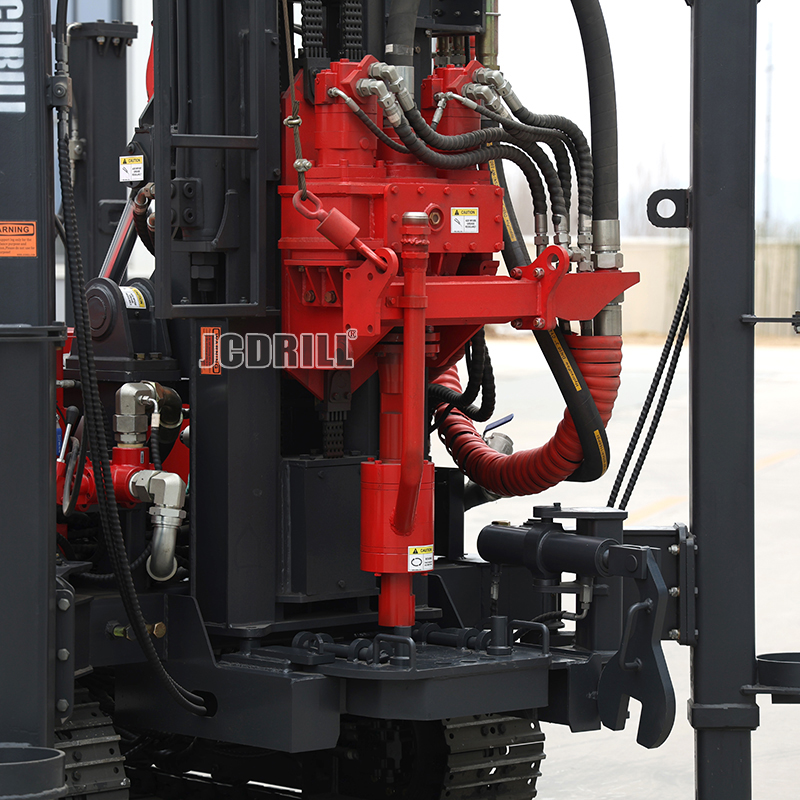

High-Performance Rotary Head: The rotary head offers a stepless speed adjustment of 45-140 RPM and a powerful torque range of 4000-8000Nm, enabling precise and efficient drilling.

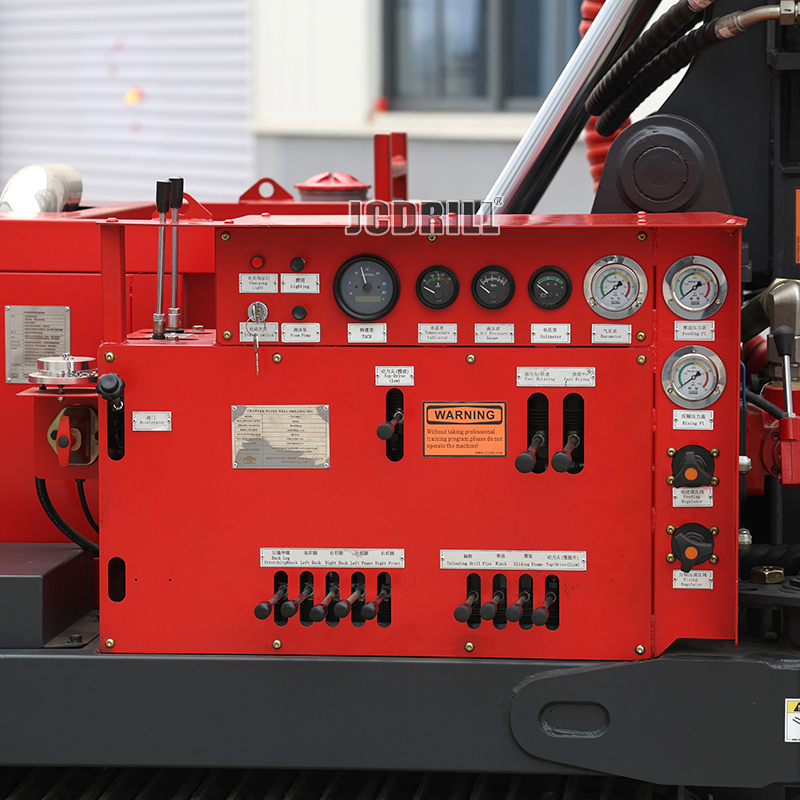

Centralized Control Console: All controls are conveniently located on a centralized panel, reducing auxiliary time and enhancing operational efficiency.

Powerful Engine: Equipped with a 92kW Yuchai engine, the CWD400T delivers robust and reliable power for demanding drilling tasks.

Optional Hydraulic Dust Collector: Reduces dust emissions, ensuring a cleaner and safer work environment.

Why Choose the CWD400T?

Versatility: Capable of drilling in all kinds of formations, the CWD400T is perfect for water well drilling, geothermal exploration, and foundation construction.

Efficiency: Advanced hydraulic systems and automated features minimize manual intervention, reducing operational time and costs.

Reliability: Built with robust components and cutting-edge technology, the CWD400T ensures long-lasting performance in demanding conditions.

Applications:

The CWD400T is ideal for a wide range of applications, including:

Industrial and agricultural water well drilling

Geothermal exploration

Foundation construction

Geological exploration

Availability:

The CWD400T is now available for order. For more information, visit https://www.jcdrill.com/

About JCDRILL:

With over 20 years of experience, JCDRILL specializes in researching, developing, and producing high-quality drilling equipment, including rock blasting rigs, water well drilling rigs, diamond core drilling rigs, and anchor drilling rigs. Customers trust our products in more than 40 countries, thanks to our advanced technology, rigorous quality control, and exceptional after-sales service.
