Drilling rigs are essential equipment used in the exploration and extraction of natural resources such as oil, gas, and water. These rigs are complex structures designed to penetrate the Earth's surface and reach underground reservoirs. This article provides a basic overview of drilling rigs, their components, and their role in various industries.
a. Onshore Rigs: Onshore drilling rigs are located on land and are used to extract resources from land-based reservoirs. They come in various configurations, including mobile rigs that can be moved from one location to another and fixed rigs that are permanently installed.
b. Offshore Rigs: Offshore drilling rigs are used to explore and extract resources from beneath the seabed. They are typically larger and more complex than onshore rigs due to the challenges posed by operating in offshore environments. Offshore rigs can be further classified as fixed platforms, jack-up rigs, semi-submersible rigs, and drillships.

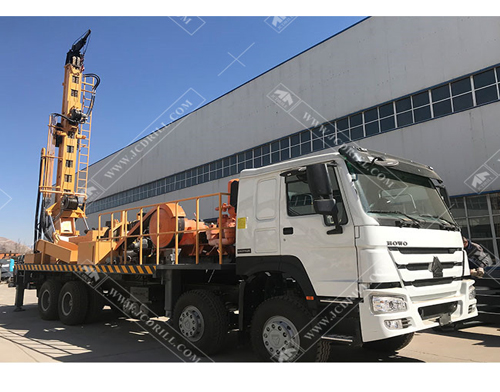

Water Well Bore Hole Drilling Rig for 1000m
a. Derrick: The derrick is the tall tower-like structure that supports the drill string and drilling equipment. It provides stability and strength to handle the drilling operations. The derrick also houses the drilling mast or substructure, which supports the drill floor.
b. Drill Floor: The drill floor is the elevated area where drilling operations take place. It accommodates the drilling rig, drill string, and other equipment. The drill floor is equipped with rotary tables, pipe racks, and control panels for operating the rig.
c. Drill String: The drill string is a series of interconnected pipes that transmit torque and drilling fluid to the drill bit. It consists of drill pipes, drill collars, and the drill bit. The drill bit is the cutting tool at the bottom of the drill string, responsible for penetrating the Earth's surface.
d. Hoisting System: The hoisting system consists of a set of cables, pulleys, and winches used to raise and lower the drill string and other equipment. It provides the necessary power to lift heavy loads during drilling operations.
e. Circulating System: The circulating system is responsible for circulating drilling fluid (commonly known as "mud") down the drill string and back up to the surface. The drilling fluid cools the drill bit, removes cuttings from the wellbore, and provides pressure control.
f. Power Generation: Drilling rigs require a significant amount of power to operate various equipment and systems. Power generation units, such as diesel engines or gas turbines, provide the necessary electrical power for drilling operations.

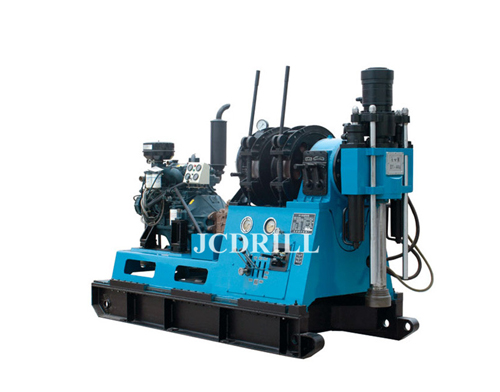

Rotary Surface Core Drilling Rig
a. Drilling Mud: Drilling mud serves multiple purposes during drilling operations. It cools the drill bit, lubricates the drill string, carries cuttings to the surface, and provides stability to the wellbore by counteracting formation pressures. The mud is constantly monitored and adjusted to maintain desired properties.
b. Rotary Drilling: Rotary drilling is the most common drilling method used in both onshore and offshore environments. It involves rotating the drill bit while applying downward force to penetrate the Earth's surface. As the hole is drilled, drill pipes are added or removed to maintain the desired depth.
c. Directional Drilling: Directional drilling techniques are used when the target reservoir is not directly beneath the drilling location. By controlling the direction and angle of the drill bit, engineers can navigate the wellbore through complex subsurface formations to reach the desired reservoir.
Drilling rigs are vital tools in the exploration and extraction of natural resources. Whether onshore or offshore, these rigs are complex structures that involve various components and processes to reach underground reservoirs. Understanding the basics of drilling rigs can help in comprehending the challenges and intricacies of resource.
