Selecting the Right Drilling Rig for Your Needs

Choosing the right drilling rig is crucial for the success of any drilling operation, whether for oil and gas exploration, water well drilling, mineral exploration, or geotechnical investigations. The selection process depends on various factors including the drilling purpose, site conditions, budget, and technical specifications. Here’s a comprehensive guide to help you select the right drilling rig for your needs:

1. Determine the Purpose of Drilling

The first step is to identify the primary purpose of your drilling project:

- Oil and Gas Exploration: Requires heavy-duty rigs capable of drilling deep wells and handling complex formations.

- Water Well Drilling: Typically requires portable, less complex rigs that can drill to moderate depths.

- Mineral Exploration: Needs versatile rigs capable of drilling in various terrains and retrieving core samples.

- Geotechnical Investigations: Often involves shallow drilling and requires rigs that can handle a variety of drilling techniques for soil sampling and testing.

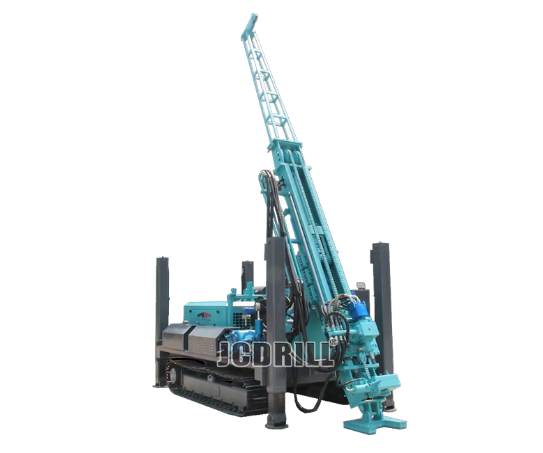

 Core Drilling Rig

2. Understand the Drilling Site Conditions

- Soil and Rock Type: Assess the geological conditions of the drilling site. Soft soils, hard rock, sandy formations, and fractured zones all require different drilling techniques and equipment.

- Depth Requirements: Determine the depth you need to reach. Shallow drilling requires less powerful rigs, while deep wells require more robust and sophisticated rigs.

- Terrain Accessibility: Consider the accessibility of the site. Remote or difficult-to-reach locations may necessitate mobile or lightweight rigs that can be transported easily.

3. Choose the Appropriate Drilling Method

Different drilling methods are suited to different applications:

- Rotary Drilling: Commonly used for oil and gas, water wells, and geothermal drilling. It involves using a rotating drill bit to bore through the earth.

- Percussion Drilling: Uses a hammering action to break through hard rock and is often used for water well and mineral exploration.

- Diamond Core Drilling: Ideal for mineral exploration as it provides a core sample of the subsurface layers.

- Auger Drilling: Suitable for shallow and soft soil conditions, often used in environmental and geotechnical investigations.

4. Evaluate Rig Types and Features

- Portable Rigs: Ideal for small-scale drilling, water wells, and remote locations. They are lightweight, easy to transport, and set up.

- Truck-Mounted Rigs: Provide mobility and are suitable for medium to deep drilling projects. They are commonly used for water well drilling and some mineral exploration.

- Crawler-Mounted Rigs: Designed for rough terrain and difficult site conditions. They offer stability and are often used in mining and large-scale construction projects.

- Land Rigs: Used for deep drilling in oil and gas exploration. They are large, stationary, and highly specialized for deep wells.

- Offshore Rigs: Designed for drilling in marine environments. They include fixed platforms, jack-up rigs, and drillships.

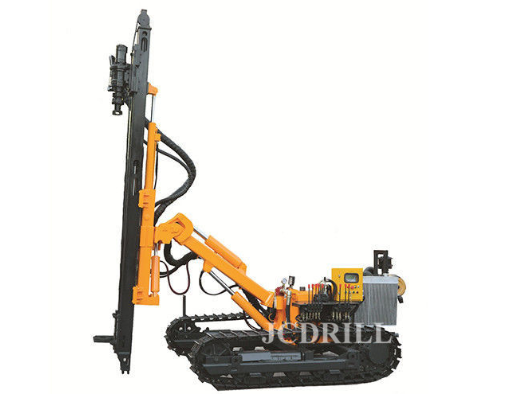

KG310 Rock Blasting Drilling Rig for Mining Quarry

5. Consider the Power Source

- Diesel-Powered Rigs: Offer high power and are commonly used in remote areas where electrical power is unavailable. They are suitable for most heavy-duty drilling operations.

- Electric-Powered Rigs: Suitable for operations near an electrical grid. They offer precise control and are often used in urban or environmentally sensitive areas.

- Hydraulic Rigs: Offer versatility and control, especially in challenging drilling conditions. They are commonly used in mineral exploration and geotechnical drilling.

6. Assess the Rig’s Technical Specifications

- Drilling Capacity: Ensure the rig can handle the required drilling depth and diameter.

- Mud Pump System: For rigs using rotary drilling with drilling fluid, a suitable mud pump is essential to circulate the drilling fluid and maintain wellbore stability.

- Hoisting System: Check the capacity and strength of the rig’s hoisting system to handle the drill string's weight and the load from the wellbore.

- Safety Features: Look for rigs with safety features such as blowout preventers (BOP) for oil and gas drilling, automatic shutoff systems, and secure operation controls.

7. Budget and Cost Considerations

- Initial Cost: The cost of a drilling rig varies significantly based on its size, type, and capabilities. Choose a rig that fits within your budget while meeting the technical requirements of your project.

- Operational Costs: Consider the operating costs, including fuel, maintenance, personnel, and consumables like drilling fluid and drill bits.

- Rental vs. Purchase: For short-term or one-off projects, renting a rig may be more cost-effective. For long-term or ongoing operations, purchasing a rig might be a better investment.

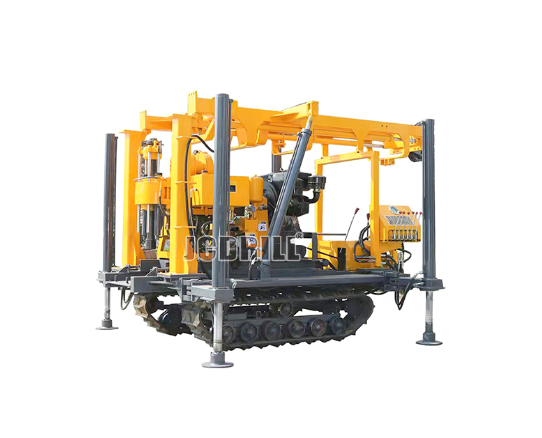

JCD300 Hydraulic Diamond Core Drilling Rig

8. Check Supplier Reputation and Support

- Supplier Reputation: Choose a reputable manufacturer or supplier known for quality, reliability, and support.

- Technical Support and Training: Ensure the supplier provides technical support, training for operators, and after-sales services like maintenance and spare parts.

9. Compliance and Safety Standards

- Regulatory Compliance: Ensure the rig complies with local and international regulations for safety, environmental protection, and operational standards.

- Certifications: Look for rigs that have the necessary certifications, such as ISO standards, to ensure quality and safety.

10. Conduct a Site Assessment and Feasibility Study

Before finalizing your rig selection, conduct a site assessment and feasibility study to ensure that the chosen rig is compatible with the site's conditions and project requirements. This step helps prevent unforeseen challenges during the drilling operation.

Conclusion

Selecting the right drilling rig involves a thorough evaluation of your project's needs, site conditions, drilling methods, and technical requirements. By carefully considering these factors, you can choose a rig that ensures efficient, safe, and cost-effective drilling operations.
