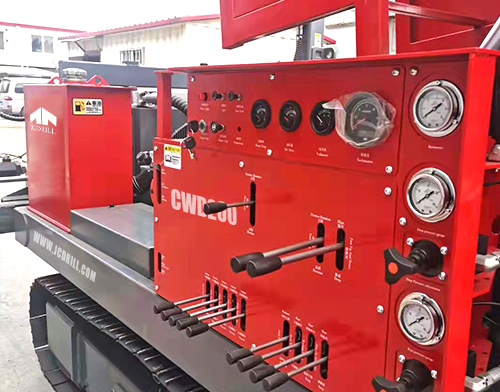

Drilling rigs are complex machines with many different components, and one important part of any drilling rig is the gauges. Gauges are instruments used to measure various parameters of the drilling operation, such as pressure, temperature, and flow rate. Understanding the gauges on your drill rig is essential for ensuring safe and efficient drilling operations. In this article, we will discuss the various gauges commonly found on drilling rigs and their functions.
Pressure gauges are perhaps the most common gauges found on drilling rigs. They are used to measure the pressure of fluids in the drilling system, including mud pumps, mud tanks, and wellbore. Different types of pressure gauges are used depending on the location and purpose of the measurement. For example, a mud pump pressure gauge is used to monitor the pressure of the drilling mud being pumped into the wellbore, while a choke pressure gauge is used to monitor the pressure of the fluids being circulated through the wellbore.
Temperature gauges are used to measure the temperature of fluids in the drilling system. Temperature measurement is critical because high temperatures can damage equipment and can also affect the properties of drilling fluids. Temperature gauges are commonly used to monitor the temperature of mud in the mud tanks, the temperature of the drilling fluid as it enters and exits the wellbore, and the temperature of the engine coolant in the drilling rig.
Flow rate gauges are used to measure the flow rate of fluids in the drilling system, including the flow rate of drilling mud, water, and fuel. These gauges are typically used in conjunction with valves and other flow control devices to regulate the flow of fluids in the drilling system. Accurate flow rate measurement is critical for ensuring that the drilling operation proceeds smoothly and efficiently.
Weight indicators are used to measure the weight on the bit (WOB) and the hook load. These gauges are important for ensuring that the drill bit is applying the proper amount of force to the formation being drilled. Weight indicators are also used to monitor the amount of weight being applied to the drill string, which can help prevent equipment damage and ensure safe drilling operations.
Tachometers are used to measure the speed of the drilling rig engine and the speed of the rotary table. The engine speed is typically monitored to ensure that the engine is operating at the proper speed and that it is not being overloaded. The rotary table speed is monitored to ensure that the drill bit is rotating at the proper speed for efficient drilling operations.
Torque gauges are used to measure the torque being applied to the drill string. Accurate torque measurement is important for ensuring that the drill bit is not being overloaded and that the drilling operation proceeds smoothly and efficiently. Torque gauges are typically used in conjunction with weight indicators to ensure that the proper amount of weight and torque are being applied to the drill string.
Mud gauges are used to measure the properties of drilling mud, such as viscosity, density, and pH. These gauges are important for ensuring that the drilling mud is properly formulated and maintained. Mud gauges are typically used in conjunction with other mud monitoring equipment, such as mud tanks, mud cleaners, and centrifuges.
Depth gauges are used to measure the depth of the wellbore being drilled. Accurate depth measurement is critical for ensuring that the well is drilled to the proper depth and that the drilling operation proceeds safely and efficiently. Depth gauges can be mechanical or electronic and are typically integrated into the drilling rig's control system.
