Your Quick Guide to Drilling Rig Troubleshooting

Drilling rigs are essential for extracting resources from the earth, whether it’s oil, gas, or minerals. They are complex pieces of machinery that rely on numerous systems working in harmony to operate efficiently. However, like any machinery, drilling rigs can experience malfunctions. Troubleshooting a drilling rig requires knowledge of the equipment, a systematic approach, and understanding of common issues. This guide provides a quick reference for diagnosing and resolving common drilling rig problems to keep operations running smoothly and minimize downtime.

1. Understand Common Drilling Rig Components

Before diving into troubleshooting, it’s crucial to have a clear understanding of the main components of a drilling rig. The key systems and parts involved in the operation of a drilling rig include:

• Power System: Provides the energy needed for the rig’s operations, including the engines and generators.

• Rotary System: Responsible for turning the drill bit. It consists of the top drive, rotary table, and related components.

• Circulating System: Used to circulate drilling fluid (mud) to lubricate the bit, remove cuttings, and maintain pressure control.

• Hoisting System: Provides the lifting capacity to raise and lower the drill string and casing.

• Blowout Preventer (BOP) System: Ensures the prevention of blowouts by controlling pressure and sealing off the wellbore in case of unexpected pressure surges.

• Control System: The automated systems that monitor and manage the rig’s operations, including alarms, sensors, and telemetry systems.

Familiarizing yourself with these components will help in identifying where an issue may originate when troubleshooting a drilling rig.

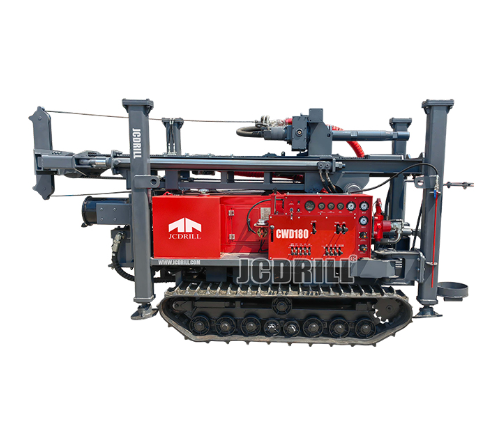

Multi-Functional Water Well Drilling Rig by Crawler Moving

2. Common Drilling Rig Problems and Troubleshooting Steps

Drilling rigs can experience a wide range of issues that can affect performance. Below are some common problems along with steps to troubleshoot them:

Problem 1: Rig Won’t Start

If the rig is not starting, the issue could lie in the power system. Here’s how to troubleshoot:

• Check the Fuel Supply: Ensure that the fuel tank is full and that there are no obstructions in the fuel lines.

• Inspect the Batteries: Low or dead batteries are a common cause for starting problems. Check the battery charge and terminals for corrosion.

• Examine the Electrical System: Check fuses, relays, and wiring for damage or faults. If the electrical system is malfunctioning, you may need to replace or repair components.

• Verify the Engine Control Panel: Ensure that all switches, gauges, and indicators are in the correct positions, and look for any error codes or alerts on the panel.

Problem 2: Drilling Fluid (Mud) Circulation Problems

Proper circulation of drilling mud is essential to keep the drill bit cool and remove cuttings from the wellbore. If circulation is slow or blocked, follow these steps:

• Check for Blockages: Inspect the circulating lines and pumps for any blockages, such as accumulated debris or damaged hoses.

• Inspect the Mud Pumps: Ensure that the mud pumps are functioning properly and that the pump seals are intact. Low pump pressure could indicate a mechanical issue.

• Examine the Mud Properties: If the mud is too thick, it may not circulate effectively. Ensure that the correct ratio of additives and water are being used to maintain proper mud consistency.

• Check Valves and Pressure Relief Systems: Ensure that the valves and pressure relief systems are working correctly to prevent overpressure or inadequate flow.

Problem 3: Rig Overheating

Overheating can occur in various parts of the drilling rig, particularly in the engine, the circulating system, or the hoisting system. To resolve overheating issues, follow these steps:

• Check Coolant Levels: Ensure that coolant levels are sufficient in the engine. Low coolant can lead to overheating of the engine and other components.

• Inspect Radiators and Heat Exchangers: Clean the radiators and heat exchangers to ensure efficient heat dissipation. Blockages or dirt can restrict airflow, leading to overheating.

• Test Fans and Pumps: Verify that cooling fans and water pumps are functioning properly. Faulty fans can significantly affect the cooling efficiency of the rig.

• Check for Exhaust Blockages: Inspect exhaust lines for any blockages or damage. Poor ventilation can cause engine components to overheat.

Problem 4: Rig Movement Issues (Hoisting or Rotary Systems)

If the hoisting or rotary system is not functioning properly, it could be due to a number of factors such as mechanical failure, power issues, or hydraulic malfunctions. Troubleshoot as follows:

• Examine Hydraulic Systems: Check for any leaks, damaged hoses, or low fluid levels in the hydraulic system. Low hydraulic fluid pressure can prevent the hoisting or rotary systems from operating correctly.

• Inspect Gearboxes and Motors: Check for signs of wear or damage in the motors, gearboxes, and drive shafts connected to the hoisting and rotary systems.

• Verify the Brake System: Ensure that the brakes on the hoisting system are not sticking or malfunctioning. A failed brake system can cause issues with lifting or lowering the drill string.

• Check the Tensioning System: Ensure that the tensioning system is operating properly. Incorrect tension can affect the movement of the drill string and cause strain on the rig components.

Problem 5: Blowout Preventer (BOP) Failures

Blowout Preventers (BOPs) are critical for preventing blowouts during drilling operations. If a BOP is not functioning correctly, it can pose a significant safety risk. Here’s what to check:

• Inspect Hydraulic Pressure: Ensure that the hydraulic pressure is at the correct levels for activating the BOP. Low pressure may prevent proper sealing.

• Test BOP Control System: Verify that the control panel for the BOP is functioning properly and that the necessary valves are opening and closing as expected.

• Check for Leaks: Inspect the BOP for leaks in the seals or connections. Leaks can prevent the system from maintaining pressure and protecting the wellbore.

3. General Drilling Rig Maintenance Tips

Routine maintenance is essential to prevent common drilling rig problems and minimize unexpected breakdowns. Here are some maintenance tips to help maintain the longevity of your rig:

• Regular Inspections: Perform periodic inspections of all key components, including the power system, hoisting system, circulating system, and BOP. Regular checks can help catch issues early before they become major problems.

• Lubrication: Ensure that all moving parts are well-lubricated. Lack of lubrication can lead to excessive wear and malfunctioning parts.

• Keep Spare Parts on Hand: Maintain an inventory of commonly needed spare parts for your drilling rig. Having replacements on hand can speed up the troubleshooting and repair process when an issue arises.

• Monitor Performance: Use monitoring systems to track the performance of the rig in real-time. Data from sensors and alarms can alert operators to any potential issues, allowing them to address problems before they escalate.

4. When to Call a Professional

While basic troubleshooting can resolve many common issues, some problems may require the expertise of a professional. If you encounter issues that are difficult to diagnose, involve complex repairs, or pose a significant safety risk, don’t hesitate to contact a professional rig technician or maintenance crew.

Additionally, if your troubleshooting efforts are not yielding results or if repairs are taking too long, it’s crucial to get expert help to avoid costly downtime or further damage to the equipment
