Type: Drill Rod Wrench
Model: BQ,NQ,HQ,PQ,LTK48,LTK60
>> Application
The diamond circle wrench has well-proportioned diamond distribution. And the diamond is wearable and hard to fall off. The circle wrench won't slide when using. Therefore, it can’t damage tubes and drill tools have a long service time. We also offer many specifications and size according to clients' needs.
Share
PRODUCT DESCRIPTION
Manufactured with advanced technique, diamond circle wrenches can avoid damage to rads and bit. they are especially fit to screw up and off wire-line coring rods.
On diamond circle wrench, the diamond distribution is well-proportioned, and the diamond is wearable and hard to fall off.When using, the circle wrench won't slide, and it can avoid damage to tubes, therefore can prolong drill tools' life.
The diamond distribution is well-proportioned on diamond circle wrench, and the diamond is wearable and hard to fall off. The circle wrench won't slided when using, and it can avoid damage to tubes.We can also produce according to customer's requirements.
>> Characteristics
>> full inner/outer tube wrench sizes ( AWL, BWL, NWL, HWL, PWL, BTW, NTW; ).
>> we have in stock all tube wrench sizes in stock.
>> long bit life and good performance.
>> cost effictive;
Tighten or loosen joints efficiently with sturdy and reliable inner and outer tube wrenches that deliver great lifespan. We have in stock all standard wench sizes, in both inner and outer tube premium wrenches.
>> Specification
| Std. | Item | Applicable Rod Std. |
| ZYQ-56 | rod wrench | BQ BTW JC59 XJC56 |
| ZYQ-71 | rod wrench | NQ NTW JC76 XJC75 CHD76 |
| ZYQ-89 | rod wrench | HQ JC95 JC98 XJC98 CHD98 |
| ZYQ-114 | rod wrench | PQ JC122 XJC122 |
| ZYQ-139 | rod wrench | SQ |
| ZYQ-43N | inner tube wrench | BQ JCBQ XJC56 |
| ZYQ-47N | inner tube wrench | BTW BTWU |
| ZYQ-51N | inner tube wrench | CHD76 |
| ZYQ-56N | inner tube wrench | NQ JCNQ JC76 XJC75 |
| ZYQ-61N | inner tube wrench | NTW NTWU |
| ZYQ-73N | inner tube wrench | HQ JCHQ JC95 CHD98 |
| ZYQ-91N | inner tube wrench | XJC122 CHD127 |
| ZYQ-95N | inner tube wrench | PQ |
| ZYQ-73/89 | casing wrench | BW BX 73 89 |
| ZYQ-89/108 | casing wrench | NW NX 89 108 |
| ZYQ-108/127 | casing wrench | 108 127 |
| ZYQ-127/146 | casing wrench | 127 146 |
| ZYQ-146/168 | casing wrench | SW SX 146 168 |

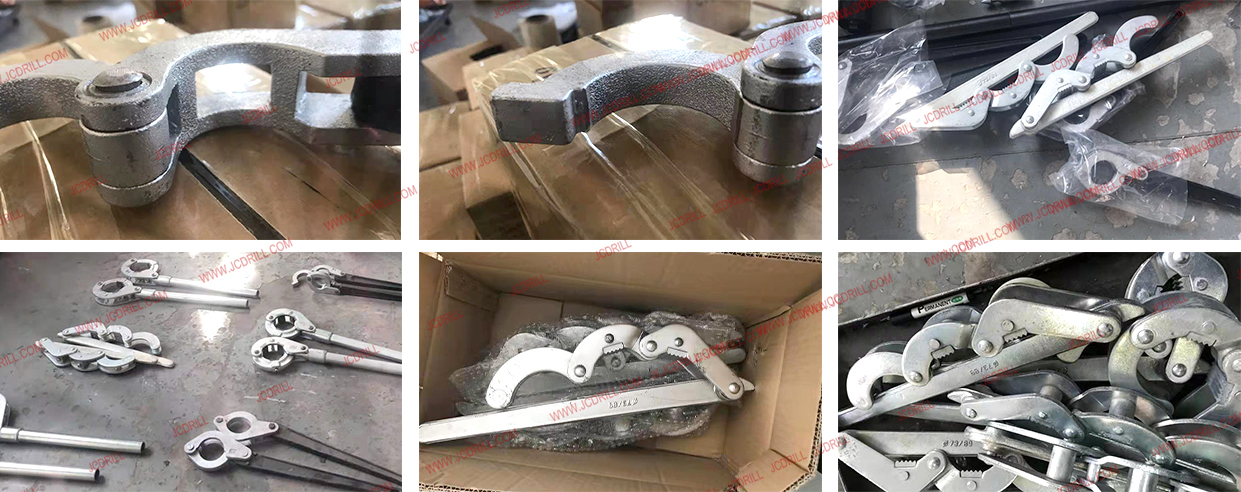

>> Stock&Shipping
