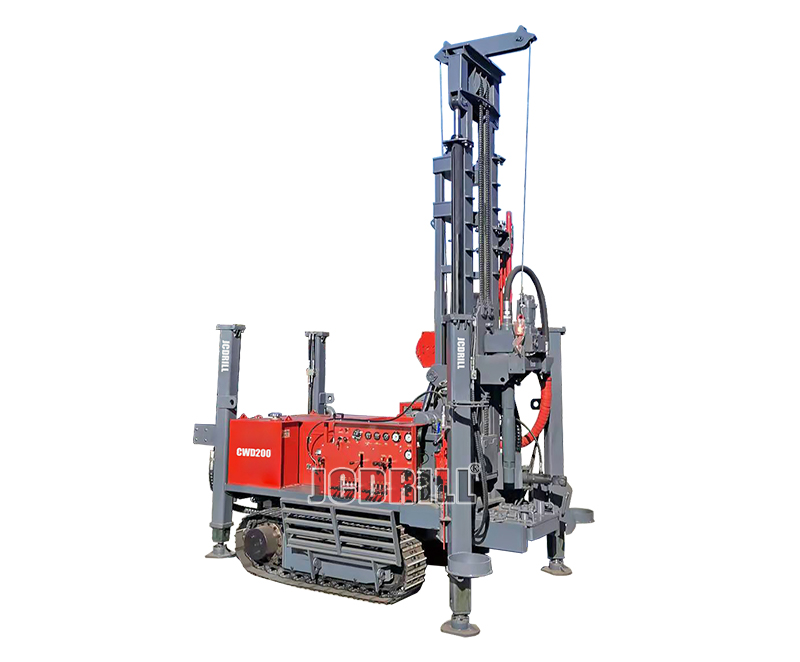

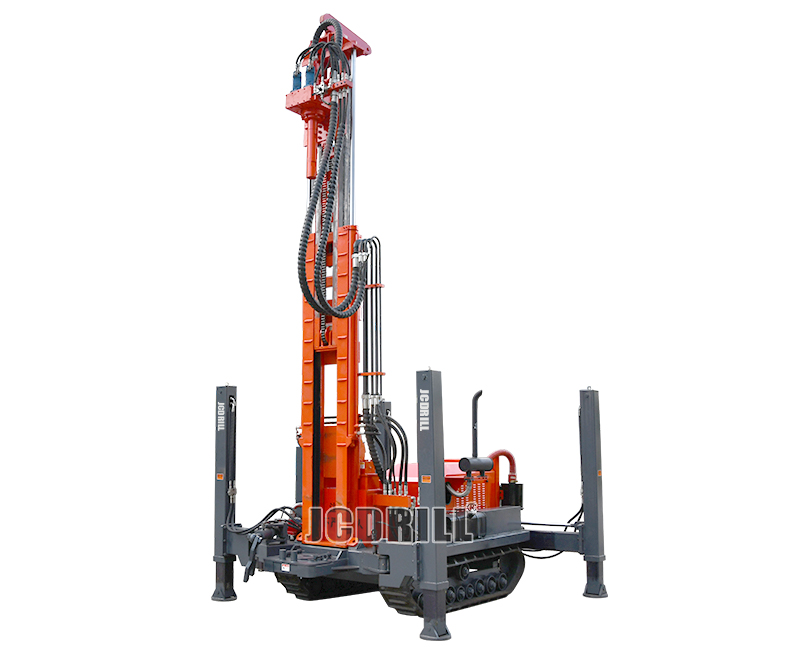

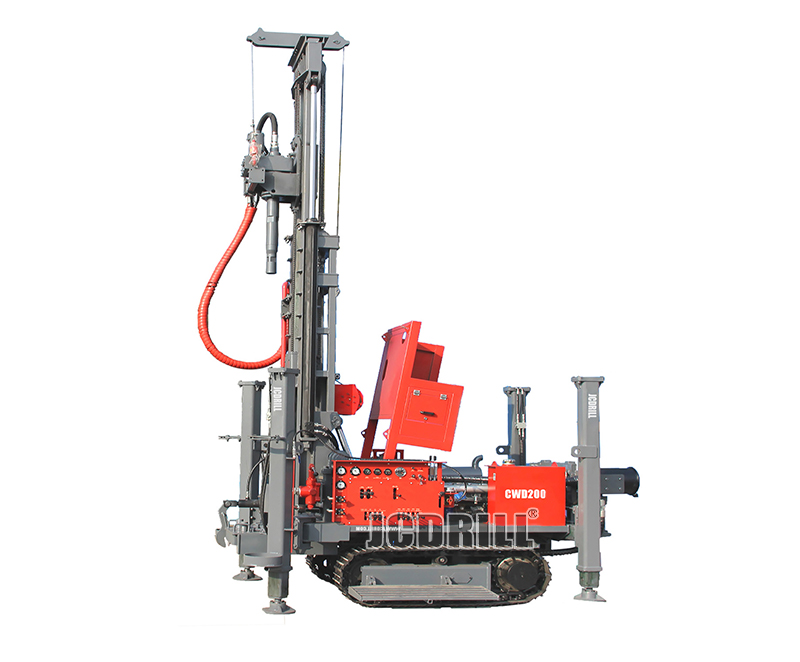

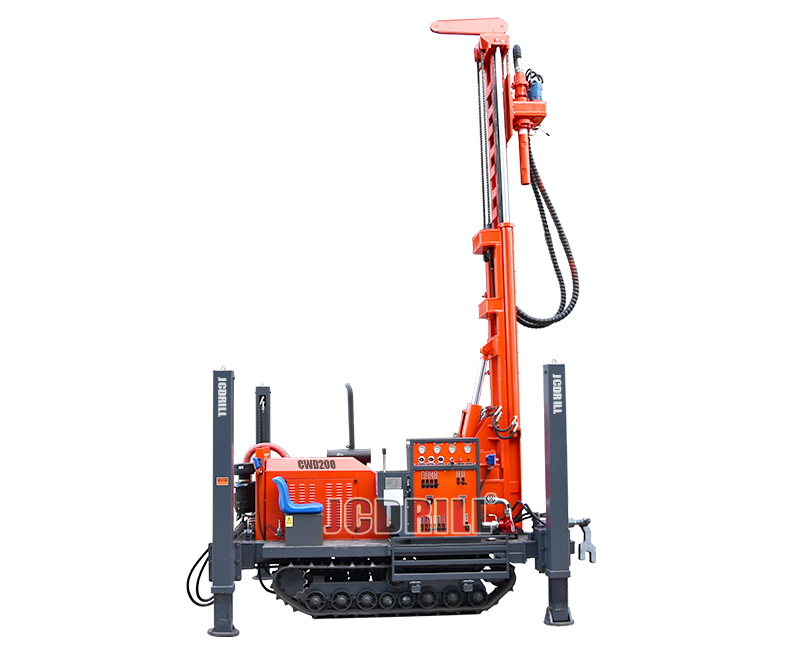

Model: CWD200
Chassis: Rubber Track,Steel Track
Max. Drilling Depth: 200m
Drilling Method: Air Drilling & Mud Drilling
>> Application
CWD200 crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
Share
PRODUCT DESCRIPTION
CWD200 Multi-Functional Track Mounted Water Well Drilling Rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
CWD200 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
>> Characteristics
>> The drilling rig can use air DTH Hammer drilling and mud drilling.
>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
>> The power of drilling rig comes from a diesel engine, 77kw YUCHAI engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
>> The rotary head,have two gear,rotation speed is 0-115rpm and the rotary torque is 4500-6500Nm.
>> The main drive of rig is hydraulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
>> The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
>> Specification
| Item | Specification | Unit | CWD200N | CWD200 |
| General | Geology drilled | All Kind | ||
| Drilling Type | DTH & MUD | |||
| Crawler Type | Rubber Crawler(Steel Crawler Optional) | |||
| Operation System | Hydraulic | |||
| Hole Diameter | mm | Φ90—Φ350 | ||
| Hole Depth | m | 200 | ||
| Rotation | Rotation Torque | Nm | 4500-6500 | 4500-6500 |
| Rotation Speed | rpm | 45-115 | 45-115 | |
| Feeding System | Drill pipe diameter | mm | 76/89/102 | 76/89/102 |
| Drill pipe length | mm | 3000 | 3000 | |
| Max. Feed Speed | M/min | 80 | 80 | |
| Max. Lifting Speed | M/min | 40 | 40 | |
| Feed Stroke | mm | 3600 | 3600 | |
| Rotation | Max. Pull back Capacity | T | 13 | 14 |
| Lifting force of Winch | T | Optional | 1.5 | |
| Engine | Diesel Engine type | 4Cylinder,water cooling | ||
| Diesel Engine Brand | YUNNEI | YUCHAI | ||
| Rated Horse power | Kw | 65 | 77 | |
| Compressor required(Optional) | Pressure Required | Mpa | 1.5-3.0 | |
| Air consumption | m³/min | 1.5-2.5 | ||
| Mud Pump(Optional/Separate) | Model | BW250 | ||
| Displacement | L/Min | 250 | ||
| Discharge pressure (Mpa) | Mpa | 2.5-7 | ||
| Dimension | Net Weight | Kgs | 5400 | 5400 |
| Transportation dimension | mm | 4070*1700*2180 | 4070*1700*2180 | |
| Ground Clearance | mm | 300 | 300 | |

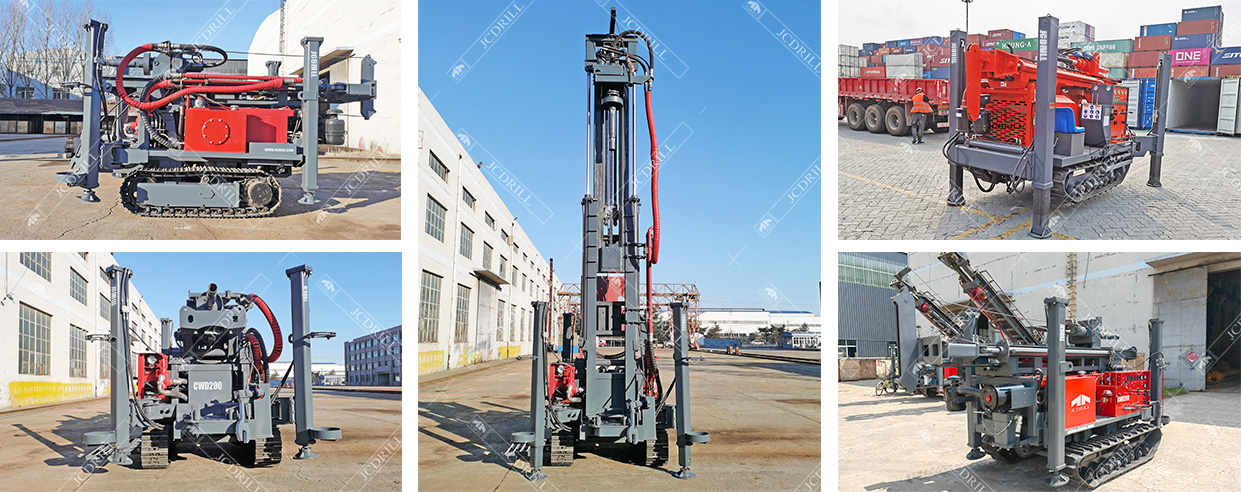

>> Shipping
