Model:KG320
Max. Drilling depth:25m
Drilling Method:Air Drilling & DTH Drilling
Share
PRODUCT DESCRIPTION
>> Characteristics

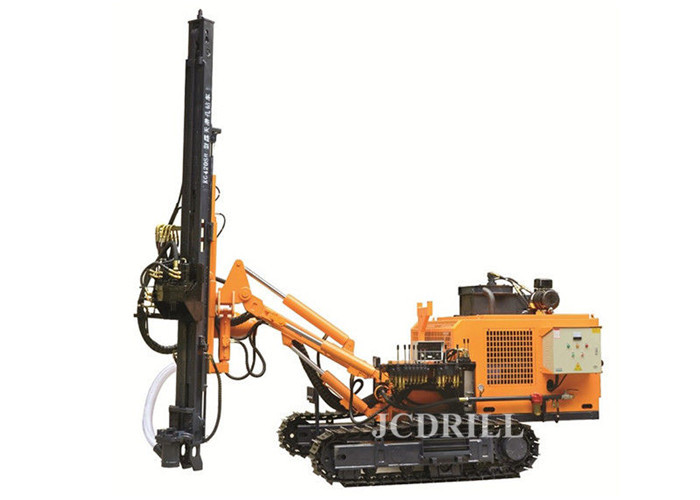

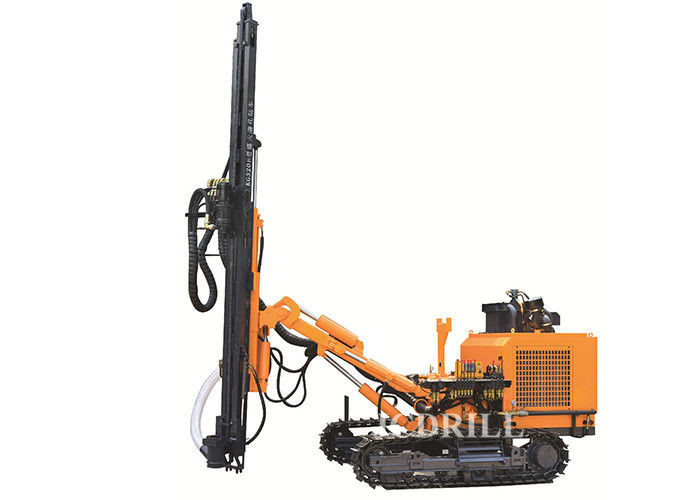

KG320 down the hole drill rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai engine (China 3), the drill rig meets national standards for emissions and environmental.
The ramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity. The expanded pith and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use.
Meanwhile, the hydraulic system is improved, thereby proving increased system flow and rotary. The hydraulic cylinder has been optimized, thus making it more reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used for the housing; and the additional ring makes handling and lifting convenient.
>> Specification
| Model | KG320 horizontal and vertical hole digging machine |
| Weight | 4400kg |
| Dimension | 5750*2100*2650mm |
| Drilling hardness | f=8-12 |
| Drilling diameter | 80-105mm |
| Depth of economical drilling | 25m |
| Rotary Speed | 0-140rpm |
| Rotary torque | 1250N.m |
| Lifting force | 20KN |
| Method of feed | Oil cylinder-leaf chain |
| Feed stroke | 3820mm |
| Travelling speed | 0-2.2km/h |
| Climbling capacity | less than 30° |
| Ground clearance | 465mm |
| Tilt angle of beam | down 135°, up:50°, total:190° |
| Swing angle of beam | left;100°, right: 45°, total:145° |
| Swing angle of drill boom | Left:44° , right:45°, total 89° |
| Pitch angle of drill boom | Down:50°, Up:25°, Total:75° |
| Compensation length of beam | 900mm |
| Diesel engine | Yuchai 4DKC4G2-80(58kw/2200rpm) |
| Drill rod | 64*3m/pc or 73*3m/pc |
| Air consumption | 7-15m3/min |
| Max.height of horizontal hole | 2750mm |
| Min.height of hotizontal hole | 350mm |

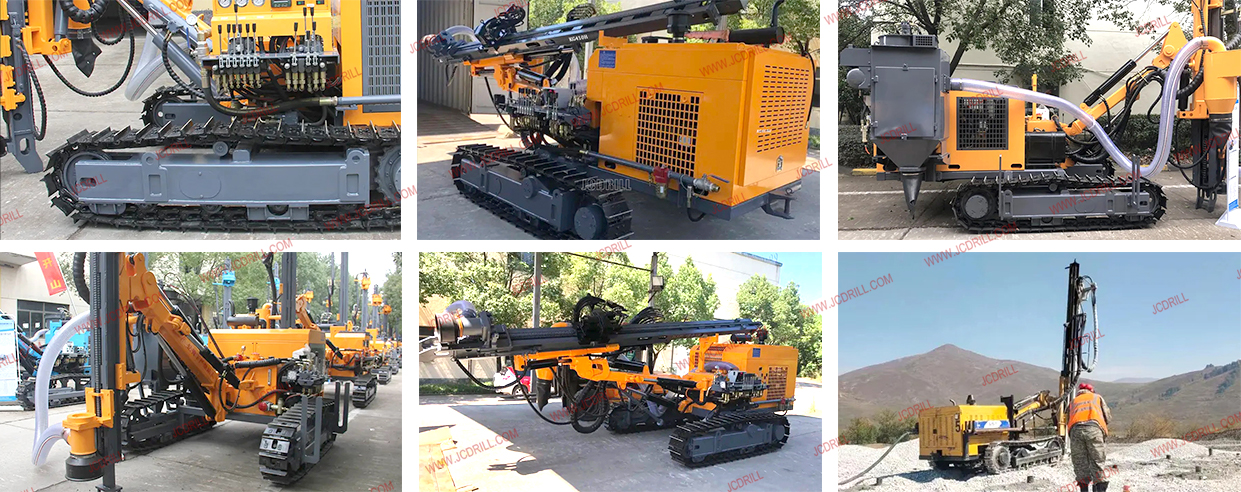

>> Shipping
