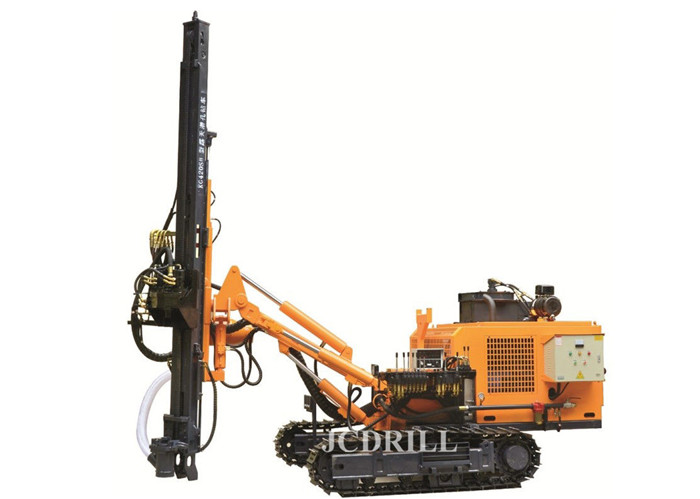

Model:KG420
Max. Drilling depth:25m
Drilling Method:Air Drilling & DTH Drilling
Share
PRODUCT DESCRIPTION
>> Characteristics

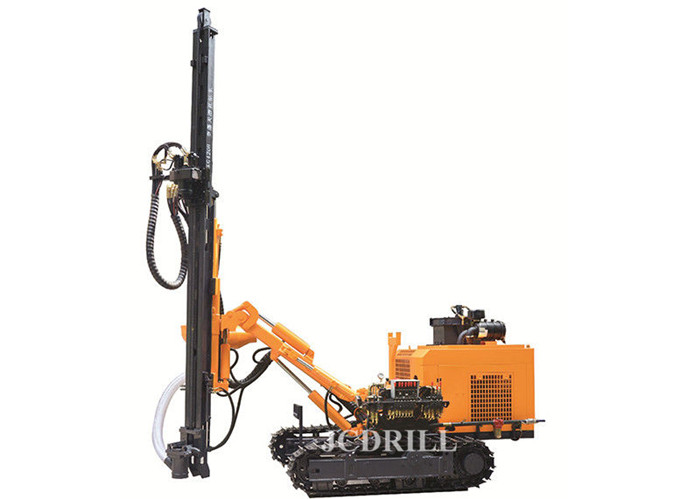

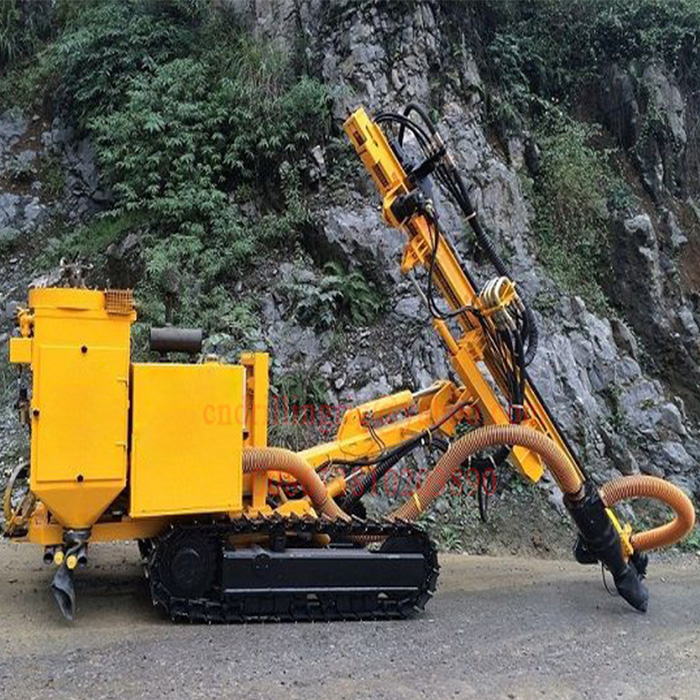

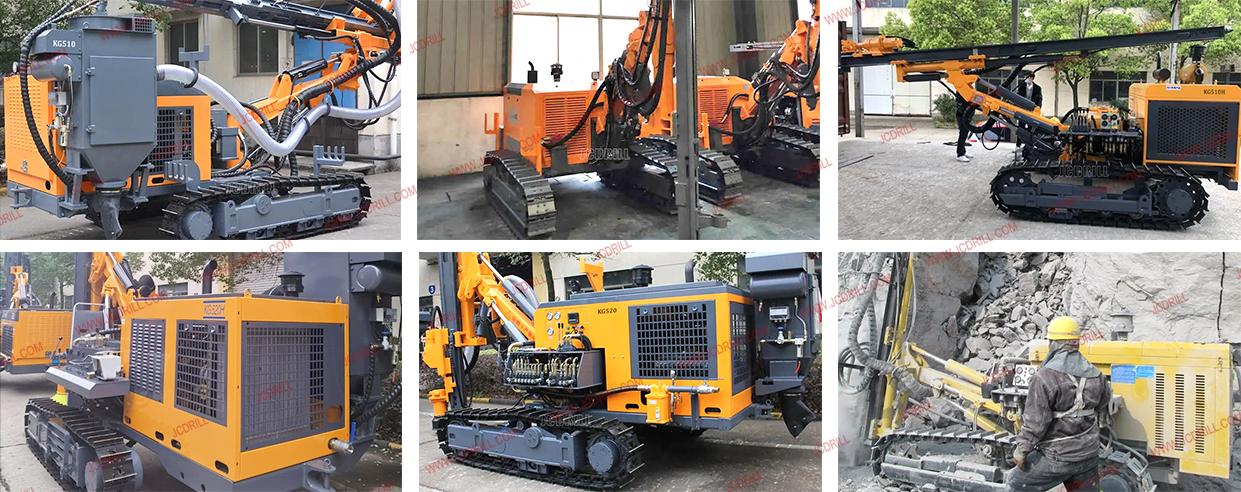

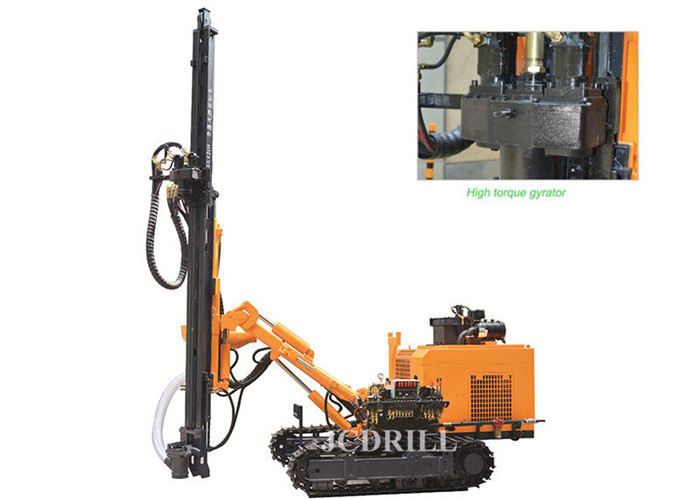

The KG420 down the hole drill rig for open use is an improved device in compliance with national regulations in diesel-engine emissions. Equipped with Yuchai four-cylinder engine (China 3), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity, the expanded pith and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme position. The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity, and the additional ring makes handling and lifting convenient.
>> Specification
| KG420 drilling rig | |
| Model | KG420 |
| Rock rigidity | f=6-20 |
| Diameter of hole | Φ90-115mm |
| Depth of economical drilling | 25m |
| Rotation speed | 0-120r/min |
| Rotation torque | 1800N·m |
| Lift power | 40000N |
| Feed way | oil cylinder-leaf chain |
| Feed distance | 3980mm |
| Walk speed | 0-2.5Km/h |
| Gradeability | ≤30° |
| Ground clearance | 500mm |
| Weight | 5000kg |
| Size of drill machine | 6000x2150x2500 |
| Sliding carriage pitch angle | Blow 135°,up50°, total 185° |
| Sliding carriage swing angle | Left100°,right45°,total 145° |
| Sliding carriage suppling length | 900mm |
| Power | Yuchai YCD4R23T8-80 (59KW/2400r/min) |
| Drill pipe | Φ76x3000mm |
| Air consumption | 10-17m³/min |
| Max height of horizontal hole | 2750mm |
| Min height of horizontal hole | 350mm |
