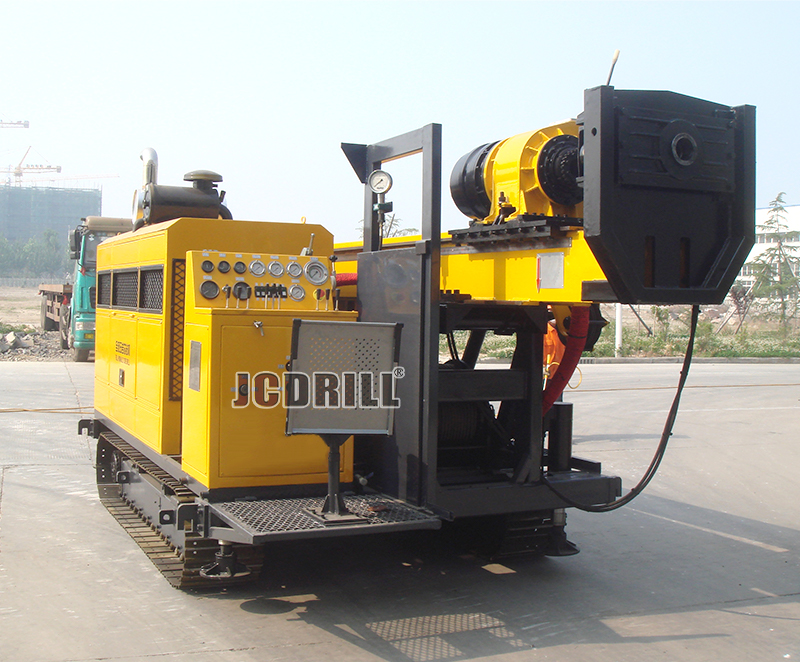

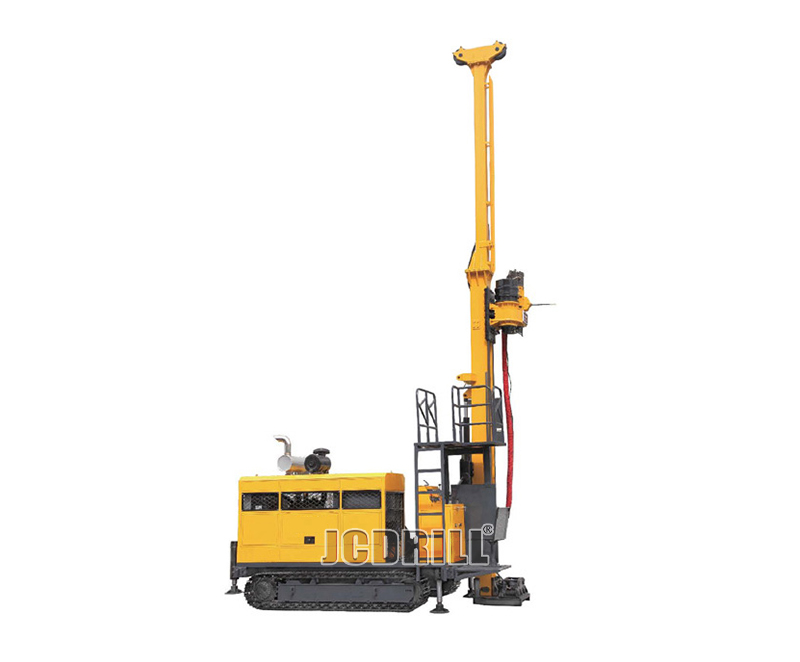

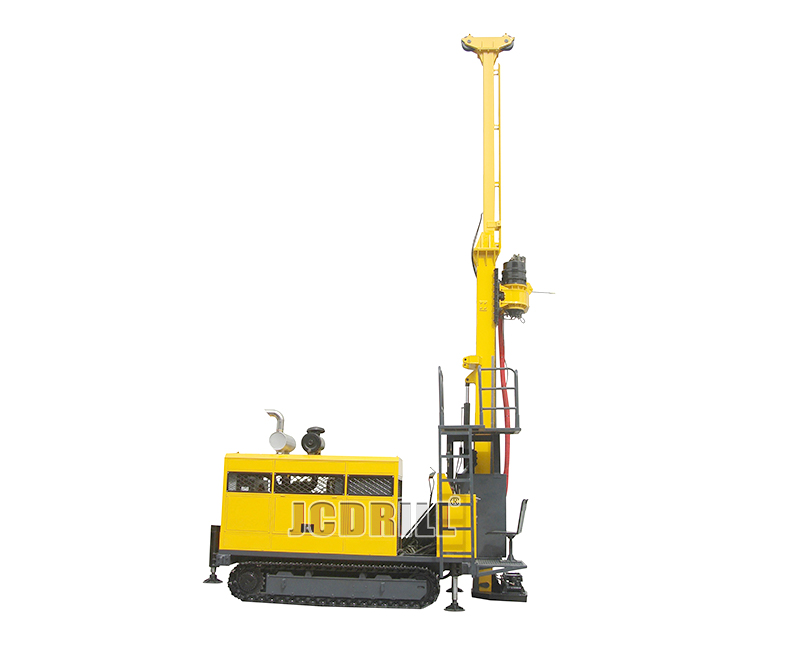

JCD1000 Full Hydraulic Diamond Core Drilling Rig

Hold Diameter: 121 mm

Drilling Depth:1000 700 500 300 m

Drilling Method: Wireline Diamond Core Drilling

>> Application

JCD1000-The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China.

Inquire Now Chat Now

PRODUCT DESCRIPTION

>> Characteristics

This type of drill rig could substitute imported products. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.

The drill rig is equipped with a series motor driving pump. The feeding and lifting of rotator are driven in the structure of cylinder directly pushing, with a 3.5m(11.5 feet) stroke. The rotation of spindle is driven by a single engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulicly with stepless change.

The rig is simple in structure. It is light and easy for transference; the mast has the functions of sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large diameter.

>> Specification

Diesel Engine of JCD1000 hydraulic core drilling rig	Model	Cummins 6BTA5.9-C180 (turbocharged and charge water cooled)
	Displacement	5.9L (1.56 US Gallons)
	Power	132Kw (180HP)
	Rated RPM (Factory setting)	2200rpm
Drilling Capacity of hydraulic geological drill rig	BQ hydraulic core drilling rig	1000m(3280feet)
	NQ hydraulic core drilling rig	700m(2296 feet)
	HQ geological drill rig	500m(1640 feet)
	PQ hydraulic geological drill rig	300m(984 feet)
	Rotation Motor	Hydraulic Motor-variable Maker: SAUER-DANFOSS
	RPM	Four Shifts/ Steeples Change 0-1100 RPM
	Ratios	1st 14.422:1 2nd 8.171:1 3rd 4.519:1 4th 2.652:1
Drill Head JCD1000 hydraulic core drilling rig	Head Opener	Pivoting style, Manual actuated
	Hydraulic Chuck(PQ)	Hydraulically opened, Disc Spring Clamping, Normally C Closed Type Axial Holding Capacity of 222 400 N
	Max. Torque hydraulic geological drill rig	3700 N·m(2727 lbf·ft)
	Hold Diameter	121 mm(4.76 inch)
	Max. Lifting capacity of Spindle	150 kN(33720 lbf)
	Max. Feeding Power hydraulic core drilling rig	60 kN(13480 lbf)
	Hydraulic pump Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. With load sensing system.	Maker: DANFOSS 1st Pump: 148LPM at 31.5MPa 2nd Pump:120LPM at 28MPa 3rd Pump: 50 LPM at 16MPa
	Capacity JCD1000 hydraulic core drilling rig	310 L (82 US Gallons)
	Hoisting force (single wire)	57kN(12814 lbf) (bare drum)
	Hoisting Speed (single wire)	38-70m/min(bare drum)
Hoist hydraulic geological drill rig	Steel Wire Diameter	18 mm(0.71 inch)
	Steel Wire Length	50 m(164 feet)
	Hoisting Force (single wire)	1200 Kg(2646 lb) (bare drum)
	Hoisting Speed (single wire)	60-90m/min (bare drum)
	Steel Wire Diameter	5.3 mm(0.2 inch)
		1000 m(3280 feet)
	Mast Height	9.6 m(31.49 feet)
	Mas	0°—90°
	Steel Wire Lengtht Adjusting Angle	0°—90°

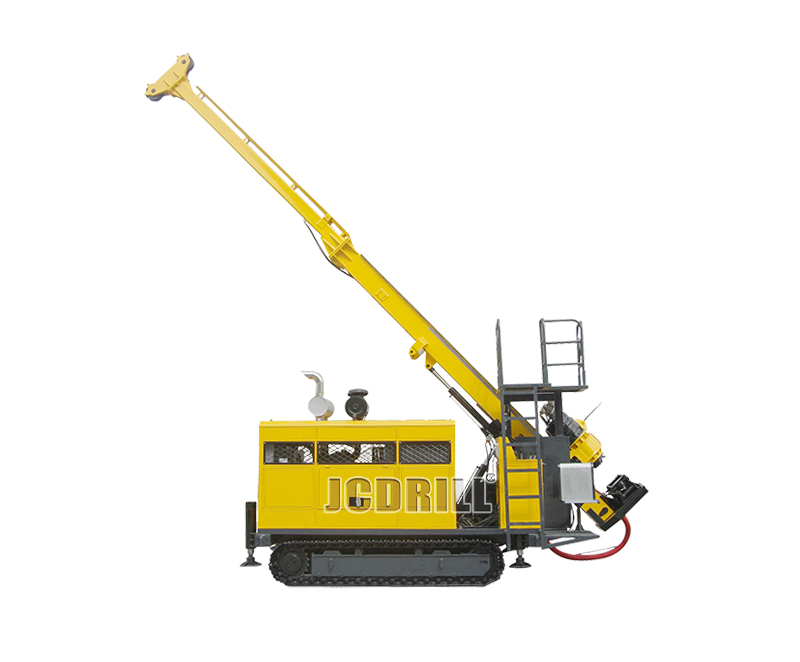

	Drilling Angle	45º off horizontal to 90ºvertical down
	Feed Pull	15000kg(33075 lb)
Mast	Feed Thrust	6000kg(13230 lb)
	Rod Pull	3m or 6m(9.84feet or 19.68feet)
	Feeding Stroke	3500 mm(137.80 inch)
	Slippage Stroke	600 mm(23.62 inch)
	Type	Reciprocating pump Triplex Plunger
Mud Pump	Model	BW160/10
	Stroke	70mm(2.76 inch)
	Discharge pressure	2.5, 4.0, 6.5, 10.0 Mpa (363, 580, 943, 1450 psi)
	Clamping Scope	55.5-110 mm(2.19-4.33 inch) through hole Φ154mm(6.06 inch)
	Weight (platform type)	9300 Kg(20506 lb)
Others	Dimensions (L×W×H)	5100×2200×2650mm (200×86.6×104.3 inch)
Others	Transport Way	Crawler
