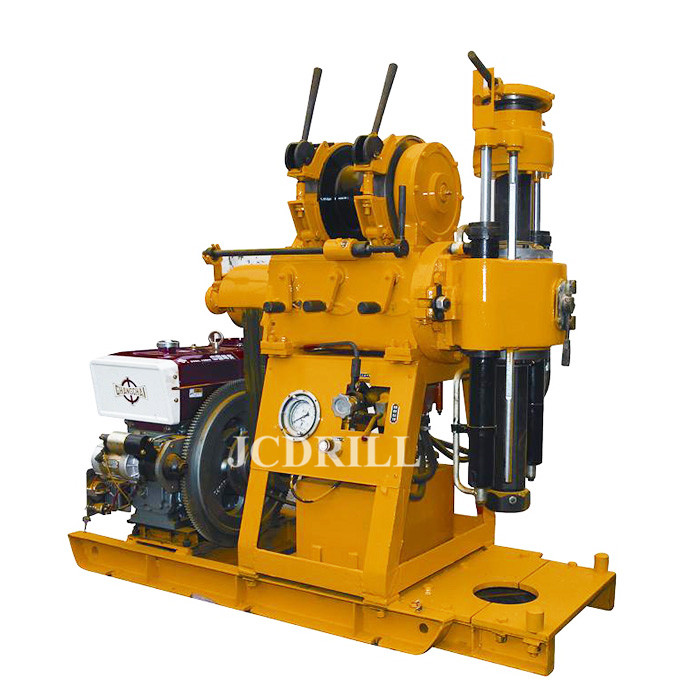

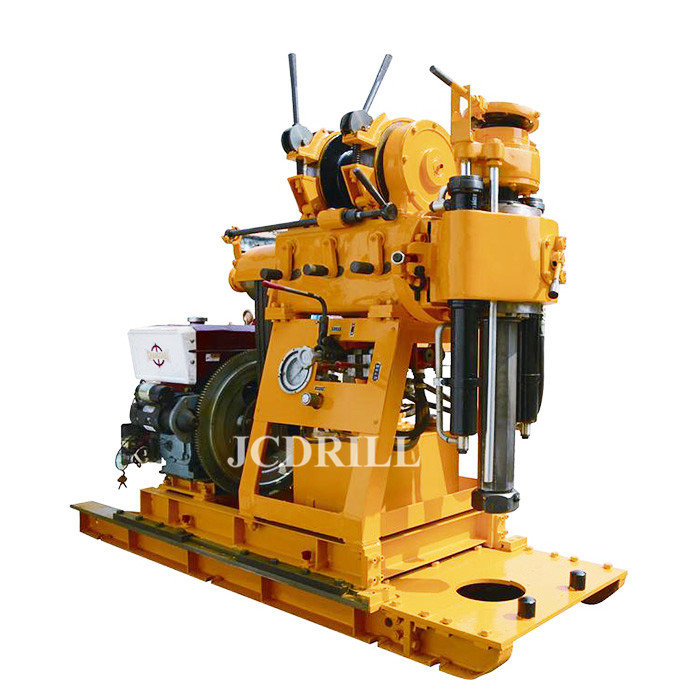

JXY200 Diamond Core Drill Rig for Mine Projects

Hold Diameter: 75 mm

Drilling Depth: 200 m

Drilling Method: Spindle core drilling rig

>> Application

XY-200 type drill based on the ordinary drill increase drill shift chute, which can realize quick change tool to improve the work efficiency to reduce Labour intensity.

The machine is used for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc and it can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc.

Inquire Now Chat Now

PRODUCT DESCRIPTION

XY-200 type drill based on the ordinary drill increase drill shift chute, which can realize quick change tool to improve the work efficiency to reduce Labour intensity.

>> Characteristics

1, Having hydraulic automatic feeding mechanism, improve the drilling efficiency, reduce labor intensity.

2, Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable.

3, Hoist with cage, forms the double support structure of the star wheel, can withstand strong shock．

4, Four groups of axle box bearing positioning, keep gyrator rigid enough deal with gravel layer, complex geological conditions, such as pebble layer．

5, The machine adopts taper clutch of national patent technology, has the big transmission torque, easy to operate, the prominent characteristics of free maintenance．

>> Specification

Machine parameters
General	Drilling depth	200m
	The largest hole diameter	φ75-φ325mm
	Final hole diameter	75mm
	Active drill pipe	53/59*4200mm
	Drill rod diameter	φ42-φ60mm
	Drilling inclination	90°～75°
	Supporting power (diesel engine)	14.7kW/r/min
	Structure weight / size	2.70.91.5
Vertical axis	Vertical axis speed	64/128/287/557r/min
Vertical axis	Vertical axis travel	450mm
Hoist	Single rope lift force	2500
	Single rope to enhance speed	0.12-0.95m/s
	Reel diameter	φ140mm
	Rope diameter	φ12.5mm
	Rope capacity	35m
Drilling tower	Rated load	18
	Effective height	6.5m
	Tower legs specifications	φ89mm
Mud pump	Model	BW145
	Flow	145L/min
	Greatest pressure	2Mpa
	The number of reciprocations	93N/min
	Suction pipe diameter	φ51mm
	High pressure water outlet pipe diameter	φ32mm
