XY-44T Core Drilling Machine for Drilling Deep Hole

I.D of Spindle : 93 mm

Drilling Depth: 700 to 1400 m

Drilling Method: Spindle core drilling rig

>> Application

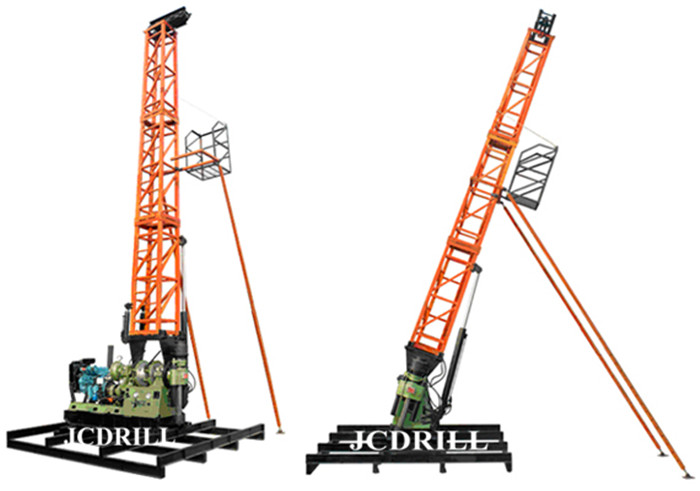

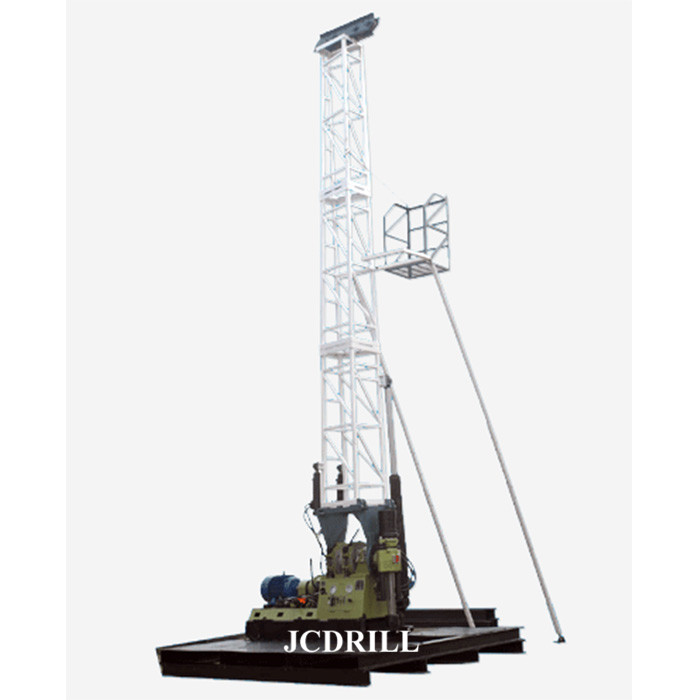

The XY-44T core drill rig, integrated rig with tower into one unit, consists of XY-44 drill rig and mast-type drill tower, with the function of hydraulic lifting and lowering of tower. The rig is simple in structure, reasonable in design, light in weight, easy to operate; it is in a wide range adjusting angle. It is especially suitable for drilling of hole with great slope angle.

The tower body of XY-44T Drill Rig is used as lifting drill tools for drilling vertical as well as inclined holes. The range of adjusting angels (in clock-wise direction) for drilling inclined holes is 0°-90°.

Inquire Now Chat Now

PRODUCT DESCRIPTION

>> Characteristics

The drill tower is pyramid-mast type. Being light in overall weight, single component being light and limited in disassembly quantity, the tower is convenient for transportation and installation. The tower has its own crownblock convenient for ground installation. When the rig is moved back during operation, the tower can be inclined to make up the moved-back distance so as to guarantee the central line between the centers of the hole and pulley. The tower can be adjusted in clock-wise direction for drilling inclined holes. The adjustment is convenient for making and wide in adjusting range. It is suitable for drilling large-angle hole.

>> Specification

Drilling Depth	700—1400 m (2296-4592 feet)
Max. Torque	3.2 KN·m (2358 lbf·ft)
Spindle Stroke	600 mm(23.62 inch)
I.D of Spindle	93 mm(3.66 inch)
Max. Lifting Capacity of Spindle	120 KN(26976 lbf)
Max. Pressure Force of Spindle	90 KN(20232 lbf)
Max. Hoisting Force	45 KN(10116 lbf)
Engine Power	37 KW(49.6HP)
