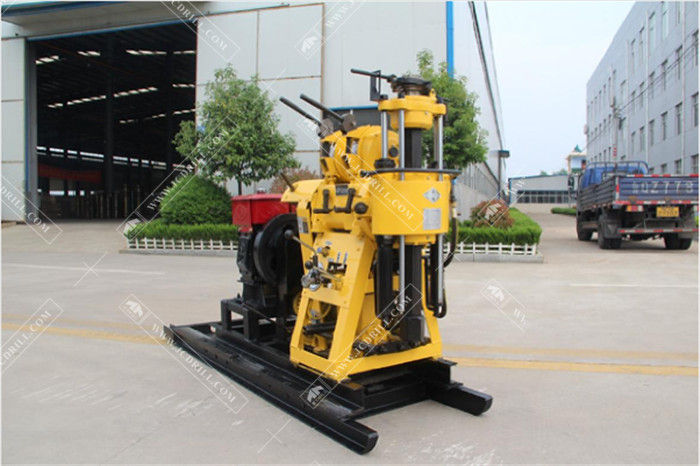

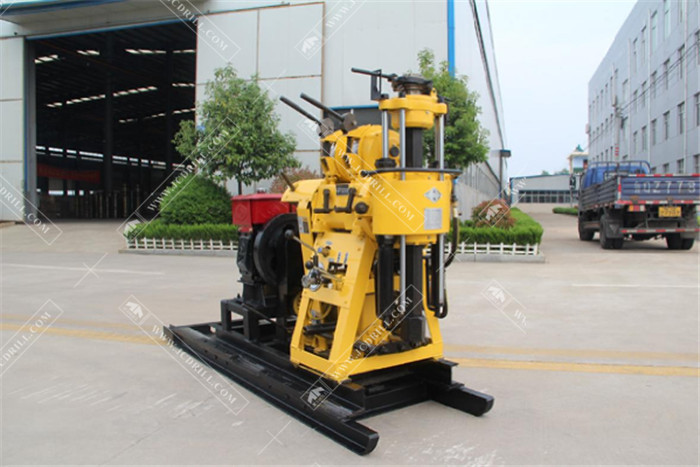

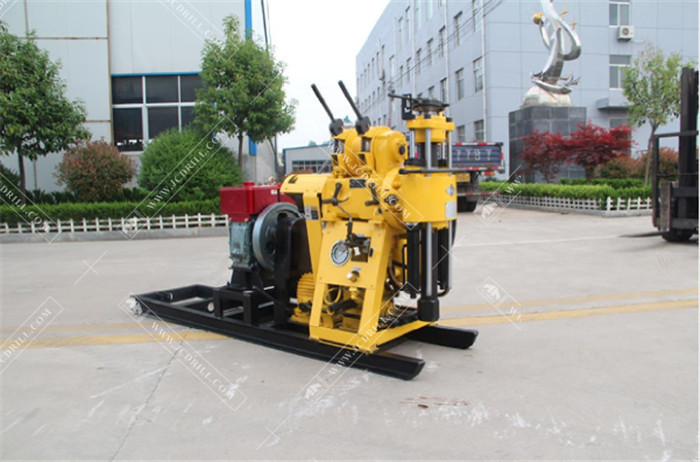

JXY130 Core Drilling Rig for Drilling Well, Census Exploration

Hold Diameter: 75 mm

Drilling Depth: 130 m

Drilling Method: Spindle core drilling rig

>> Application

The drill for drilling wells, census exploration, geophysical exploration, road and building exploration and blasting drilling and other drilling projects.

According to the bottom of the different choice of alloy, diamond and composite drill bits and other drilling.

Can drill 2-9 level of sandy clay and rock formations.

Inquire Now Chat Now

PRODUCT DESCRIPTION

>> Characteristics

>> with hydraulic automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.

>> the use of ball clamping mechanism instead of chuck, can be achieved without downtime, easy to operate, safe and reliable.

>> with a hole pressure gauge, easy to control the situation inside the hole.

>> compact structure, the handle is concentrated, occupy a small area, light weight, strong decomposition, easy to relocate. Suitable for plain or mountain work

>> Specification

Machine parameters
General	Drilling depth	130m
	The largest hole diameter	φ75-φ220mm
	Final hole diameter	75mm
	Active drill pipe	53/59*4200mm
	Drill rod diameter	φ42-60mm
	Drilling inclination	90°～75°
	Supporting power (diesel engine)	13.2/2200kW/r/min
	Structure weight / size	2.40.81.4
	Vertical axis
Vertical axis	Vertical axis speed	142 285 570r/min
Vertical axis	Vertical axis travel	450mm
Hoist	Single rope lift force	2000
	Single rope to enhance speed	0.41 - 1.64m/s
	Reel diameter	φ140mm
	Rope diameter	φ9.3mm
	Rope capacity	27m
Drilling tower	Rated load	18
	Effective height	6.5
	Tower legs specifications	73mm
Mud pump	Model	BW95
	Flow	95L/min
	Greatest pressure	1.2Mpa
	The number of reciprocations	93/min
	Suction pipe diameter	φ51mm*4.5m
	High pressure water outlet pipe diameter	φ32mm*6m
