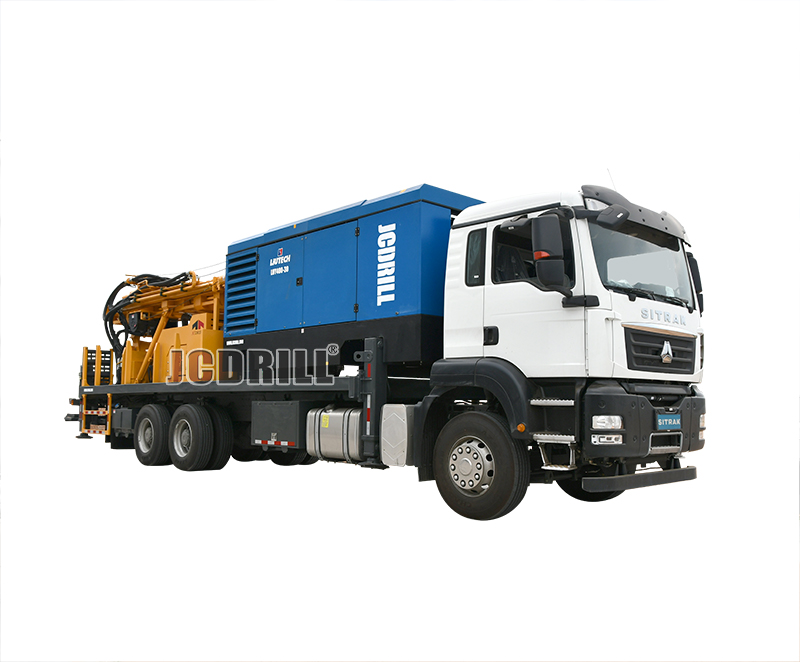

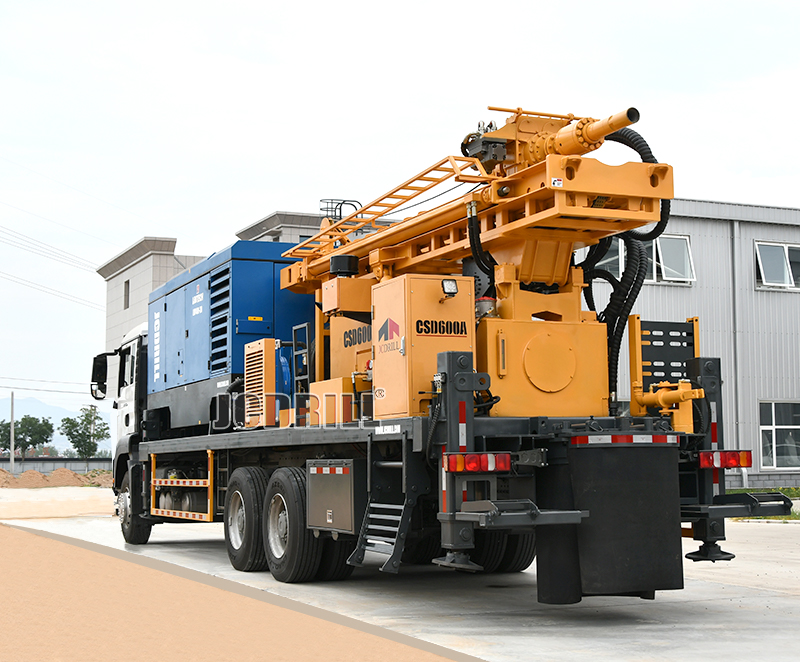

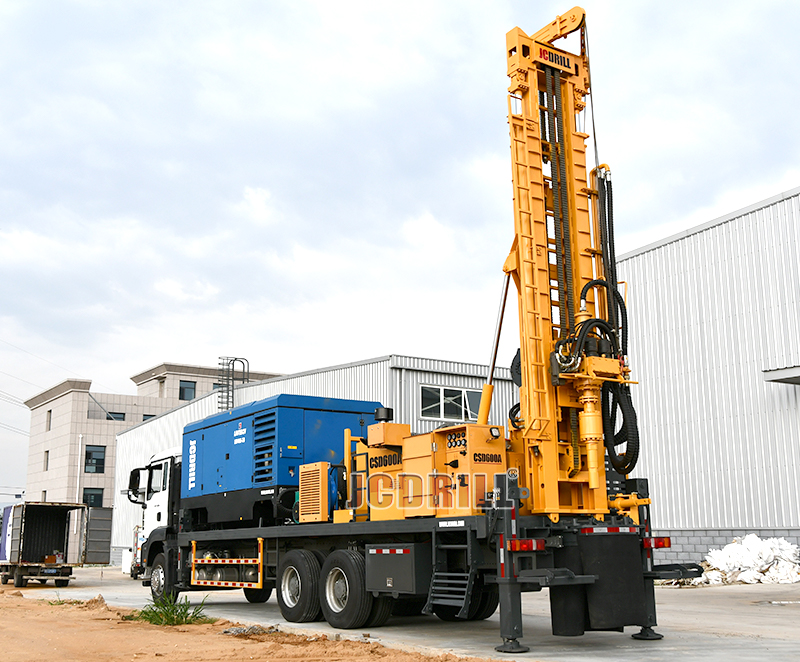

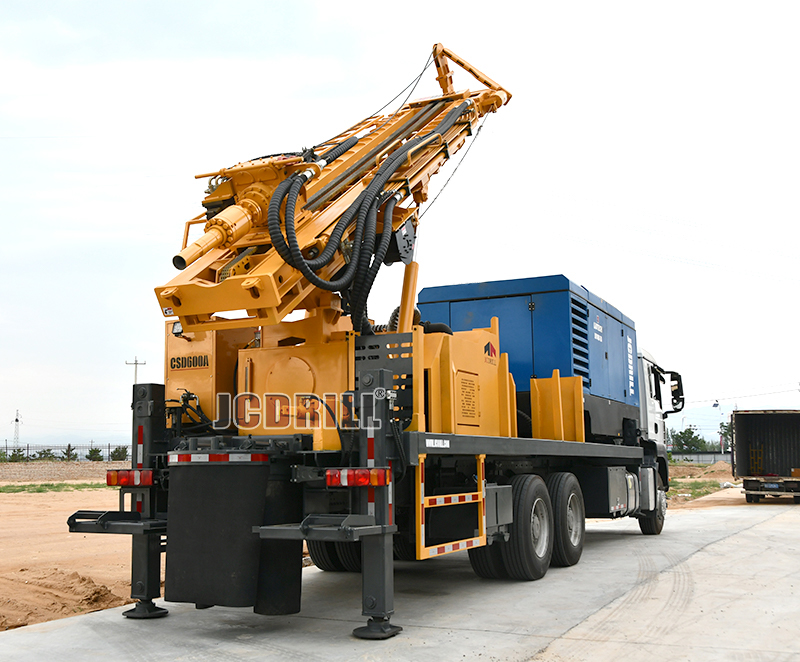

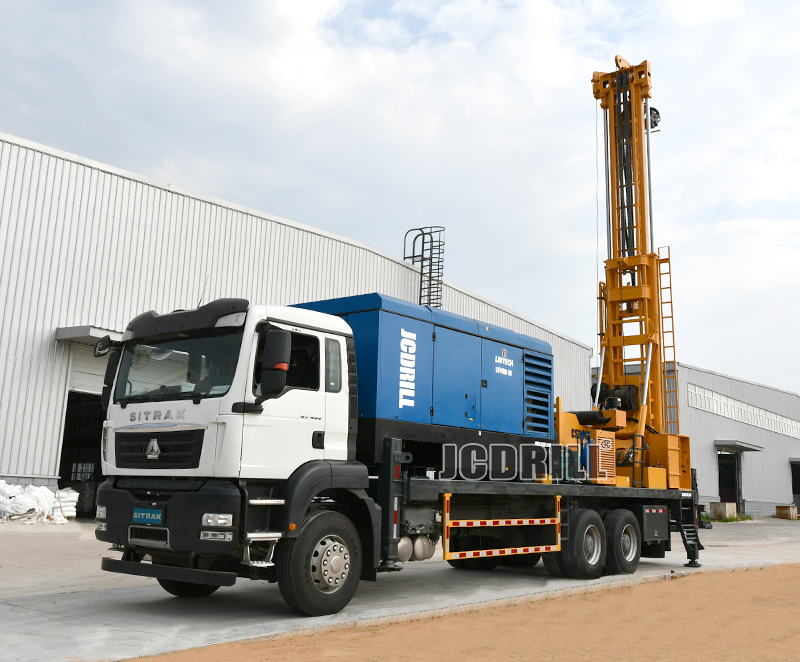

Hydraulic Pneumatic Truck Rotary Water Well Drilling Rig

Model: CSD600A

Chassis:6X4(Integral)

Max. Drilling depth:600m

Drilling Method: Air Drilling & Mud Drilling

>> Application

CSD600A truck mounted water well drilling rig is mainly applicable to all kinds of drilling processes of wells, monitoring boreholes, geothermal boreholes, and grouting holes of cofferdams, dam,s and reinforced bases, as well as drilling of open pit mining, anchor reinforcement projects, and defense project.

Inquire Now Chat Now

PRODUCT DESCRIPTION

The versatile truck water well drilling rig is a new, efficient, and multifunctional hydraulic drilling rig, mainly used to kinds of drilling wells, monitor boreholes, geothermal boreholes, grouting holes of cofferdam, and so on. The drilling machine has with fully powerful hydraulic motor, heavy duty hydraulic drilling arm, and high-pressure DTH percussive hammer. In addition, the water well drilling machine adopts a taper clutch of national patent technology, has a big transmission torque, easy to operate, the prominent characteristics of free maintenance.

>> Advantages

>> The drilling rig can use air DTH Hammer drilling and mud drilling.

>> A centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance work efficiency.

>>The truck chassis adopts the 6X4 special crane chassis of the brand Kaima&Foton and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed system are set up on the chassis.

>> It's a hydraulic rotary drilling rig with directional circulation. It is equipped with a BW850/5 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand, and rock if it is equipped with a suitable drilling bit.

>> The power of the drilling rig comes from a diesel engine, the 132KW CUMMINS engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.

>> The rotary head, rotation speed is 93-186rpm stepless adjustment and the rotary torque is 10000-20000Nm.

>>The pulling force can be regulated and controlled, which adapts the machine to deep hole drilling.

>>Main winch is available on the rig so it is highly efficient when the rig drills on mud rock and the weathering formation.

>>The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, and guide dumping.

>> Specification

Item		Unit	Parameter
General	Geology drilled		All kinds
	Drilling Type		DTH & Mud Rotary
	Hole Diameter	mm	Φ140—Φ500
	Hole Depth	m	600
	Rotation Torque	Nm	10000-20000
	Rotation Speed	rpm	93-186
	Drill pipe diameter	mm	102/114
	Drill pipe length	mm	4000/4500/6000
	Max. Pull down capacity	T	8
	Max. Pull back capacity	T	40
Winch	Lifting force of Main winch(Optional)	T	4
	The lifting force of the hoist	T	2.5
	Length of steel wire rope(tool winch)	m	100
	Lifting height of tool winch	m	8
Engine	Diesel Engine type	CUMMINS 6 Cylinders, water cooling
	Rated Horse power	Kw	132
	Electrical System	24	Volt
Compressor	Compressor Type	Rotary Screw 2 Stage
	Pressure Required	Bar	30
	Air consumption	m³/min	40
Chassis	Manufacturer		SINOTRUCK
	Rated Horse Power	kw	400
	Discharge Standard		EU-2
	Drive Type		6*4
	Max.Speed	Km/h	100
Mud Pump	Model		BW850/2 or BW850/5
	Flow Rate	L/Min	850
	Discharge pressure	Mpa	2/5
Dimension	Shipping size（LWH）	mm	1180024963750
Dimension	Working size（LWH）	mm	1100024969800

Different chassis brand,mud pump and air compressor can be choice as requirement.

>> Shipping

Characteristics:

Hydraulic System:

Provides the necessary power to operate heavy machinery components, such as the rotary head, lifting mechanisms, and drilling tools.
Ensures precise control over the drilling process and the application of torque and pressure.

Pneumatic System:

Uses compressed air to clear debris from the borehole and enhance the drilling process.
Suitable for drilling in dry or hard rock formations where air pressure can assist in breaking up the material.

Rotary Drilling:

Utilizes a rotating drill bit to grind and cut through the earth.
This method is effective for drilling through both soft and hard formations, making it versatile for different terrain.

Truck Mounted:

The rig is mounted on a truck, making it mobile and easy to transport between drilling sites.
Ideal for remote or hard-to-reach locations where mobility is essential.

Water Well Drilling:

Specifically designed for drilling water wells, typically to reach aquifers at various depths.
Can also be used for geothermal drilling, mineral exploration, and other applications.
