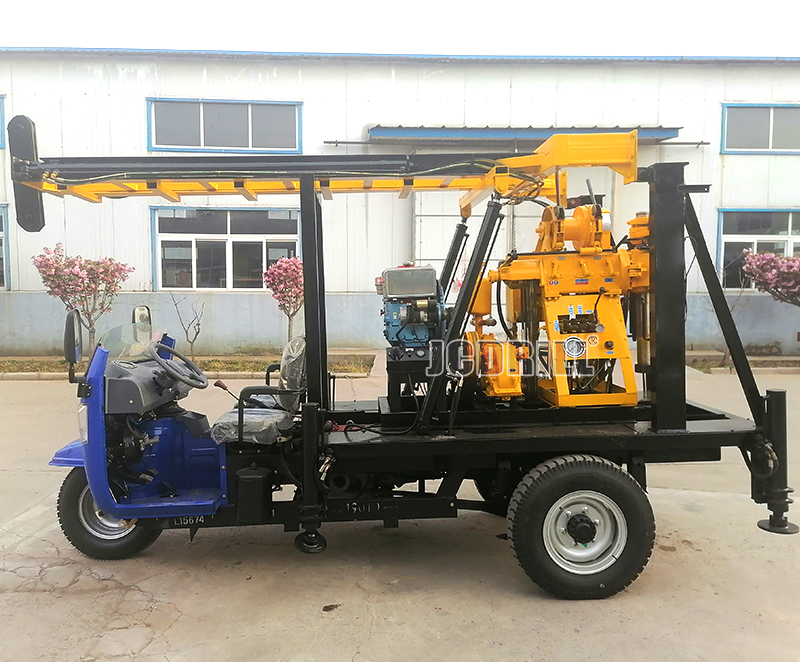

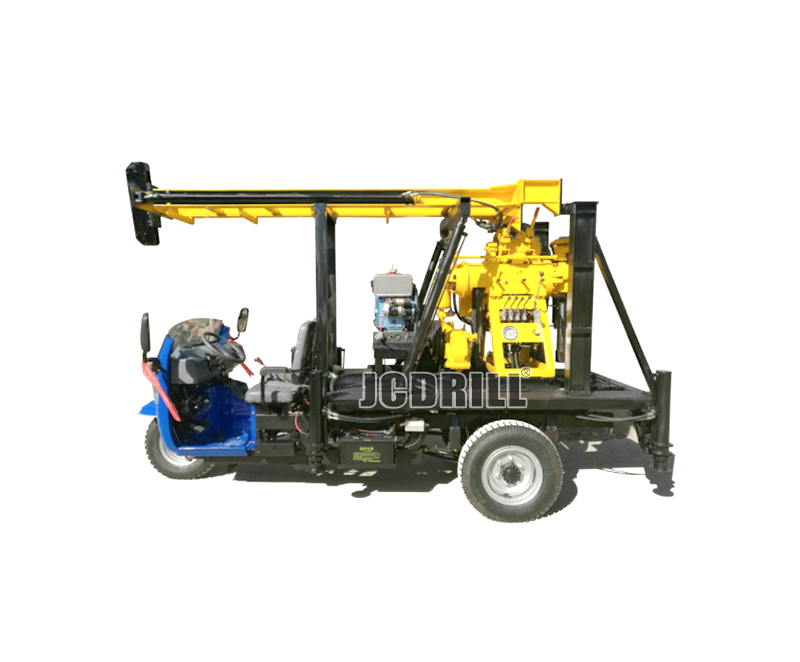

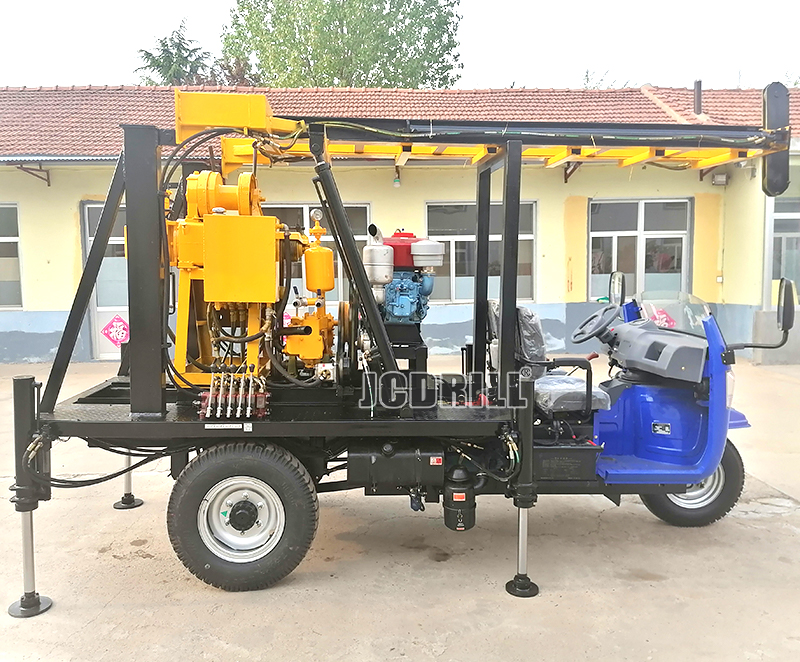

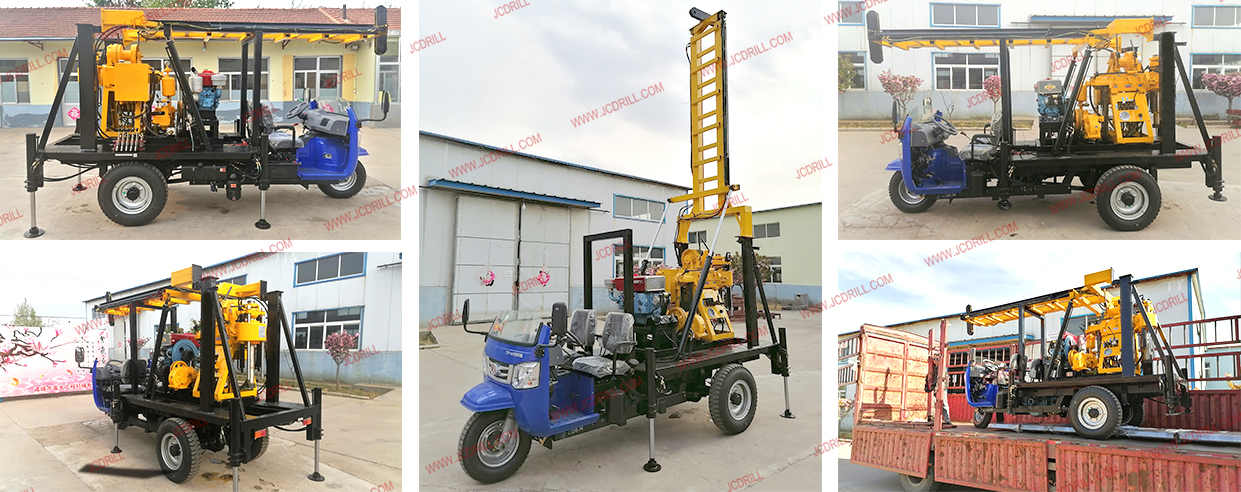

JXY200C Three Wheel Vehicle Mounted Hydraulic Spindle Core Drilling Machine

Drilling diameter:300-75mm

Drilling Depth: 30-200m

Drilling Method: Mud Drilling

>> Application

JXY200C Multipurpose Three Wheel Vehicle Mounted Hydraulic Spindle Core Bore Drilling Machine is designed for Geological survey and prospecting, exploration roads, and high-rise building foundations, as well as a variety of concrete structure inspection holes, rivers, and dams, embankment grouting hole drilling and grouting direct civilian wells and geothermal central air conditioning.

Inquire Now Chat Now

PRODUCT DESCRIPTION

JXY200C is a multi-function hydraulic vehicle mounted rotary spindle drilling rig

It adopts a three-wheel chassis 7YP-1475D1, the drive systems, hoist, and mud pump are mounted on this chassis, a reasonably compacted layout, easy to operate.

A Three-Wheel Vehicle Mounted Hydraulic Spindle Core Drilling Machine is a compact and mobile drilling rig designed for core drilling in various geological formations. It is mounted on a three-wheel vehicle for ease of transport and maneuverability, making it ideal for exploration in remote or confined areas. This type of machine uses a hydraulic spindle system for precise control and efficient drilling.

>> Characteristics

>>It configures BW-160 mud pump, high pressure, big flow, which can ensure drilling depth and diameter.

>>The rig has a shifting device, it can move on the vehicle, convenient to operate while drilling.

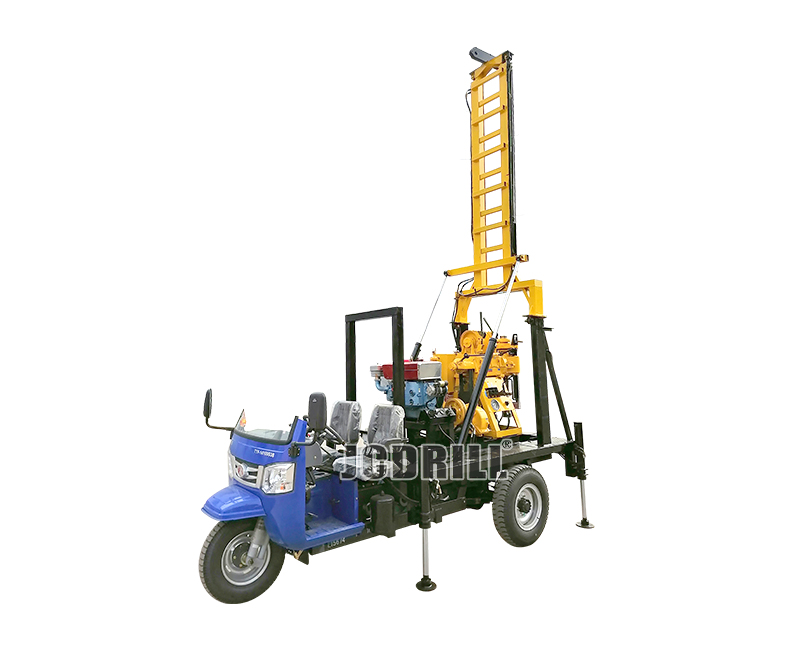

>>The hydraulic folding mast is safe and convenient to operate.

>>The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has low failure rate. When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.

>> Specification

Description		JXY200C	Description		JXY200C
General	Drilling depth	30-200m	Mud pump	Rated flow	160L/min
	Drilling diameter	300-75mm		Rated pressure	1.3Mpa
	Max.Hole Diameter	500mm		Driving power	5.15kw
	Drilling Angel	90-75°		main machine weight	190kg
	Mast height	7000mm		Dimension	1110725965mm
	Mast effective height	6500mm	Drill Pipe	Drill pipe length	4.2m
	Kelly/active pipe	59*53mm	Drill Pipe	Drill pipe diameter	42/50/60mm
	Weight	1950kgs	Chassis	Model	7YP-1475D1
Spline	Structure	Ball bearing		Drive mode	Rear-wheel drive
	Spindle rotating speed	64/128/287/557r/min		Power Model	ZS1115E2
	Spindle stroke	450mm		emission standard	GB18322-2002,GB19756-2005(Ⅱ)
	Spline Max.Torque	2400N.m		Rated power	16.2kw
Hoist	Max.Hoisting Capacity	1800kgf		Rotating speed	2200rpm
	Tight rope cubic caliber	26mm	Stabilizing Jack	2 front jacks and 2 rear jacks.
	hoisting speed	17,35,75,151r/s		Type	Hydraulic
	Wireline diameter	12.5mm		Stroke	350 mm
	Main hoisting line capacity	35m	Dimensions	Overall length	4300 mm
Power Unit	Model	ZS1115 diesel engine		Overall width	1600 mm
Power Unit	Rated power	14.7kw/2200rpm		Overall height	2800 mm
