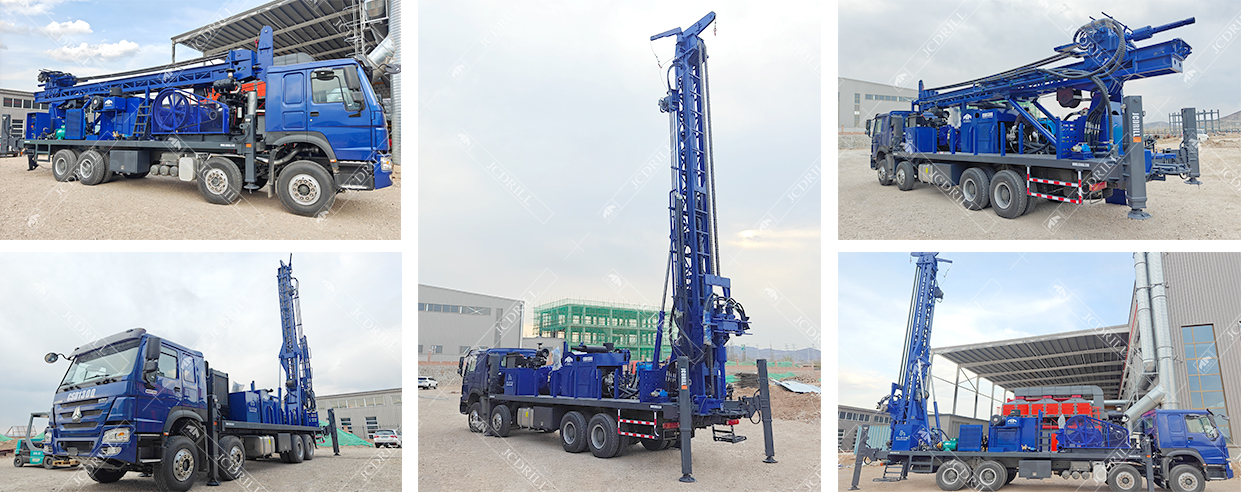

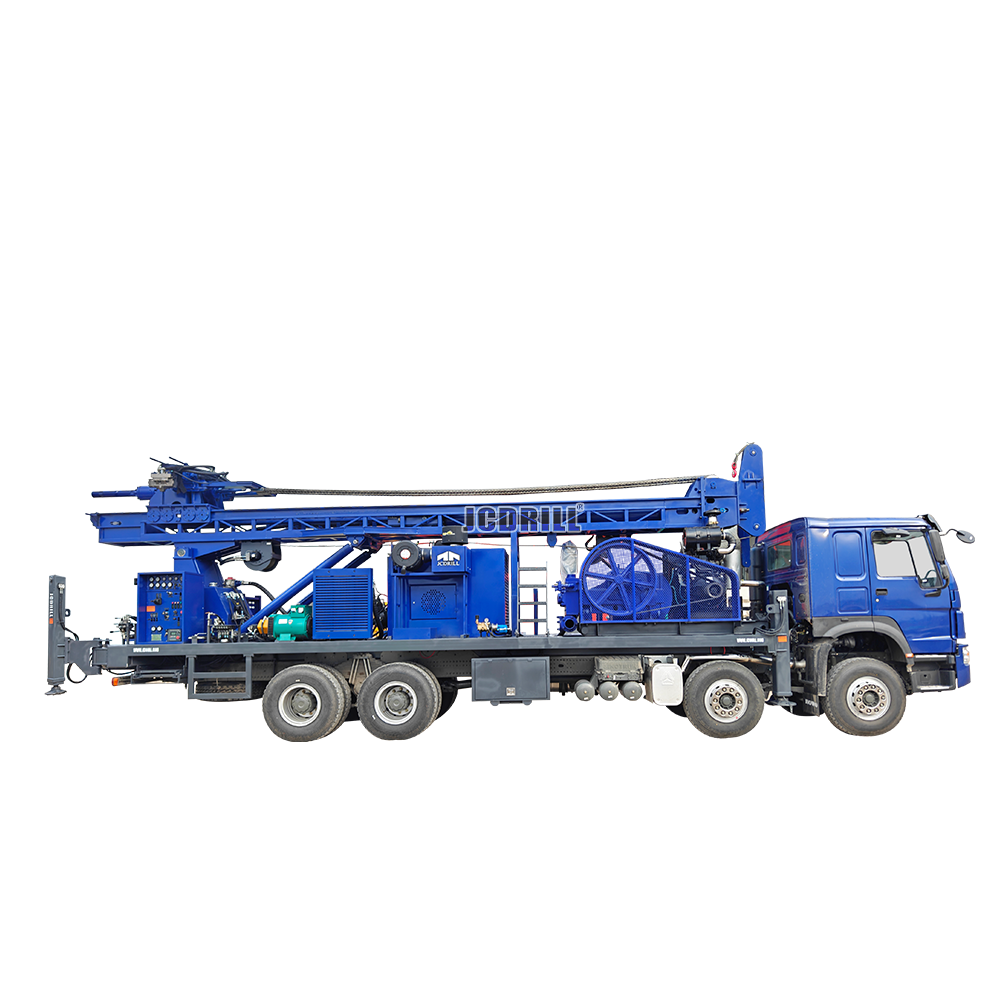

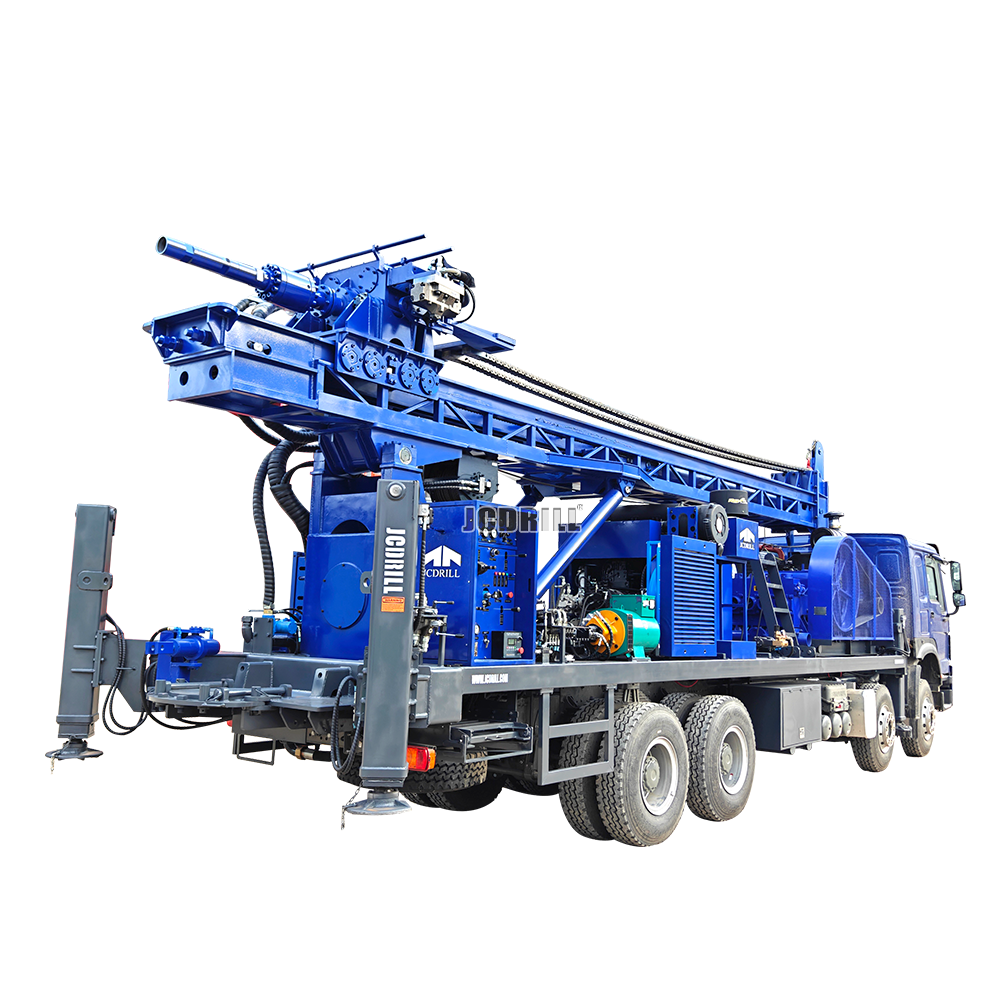

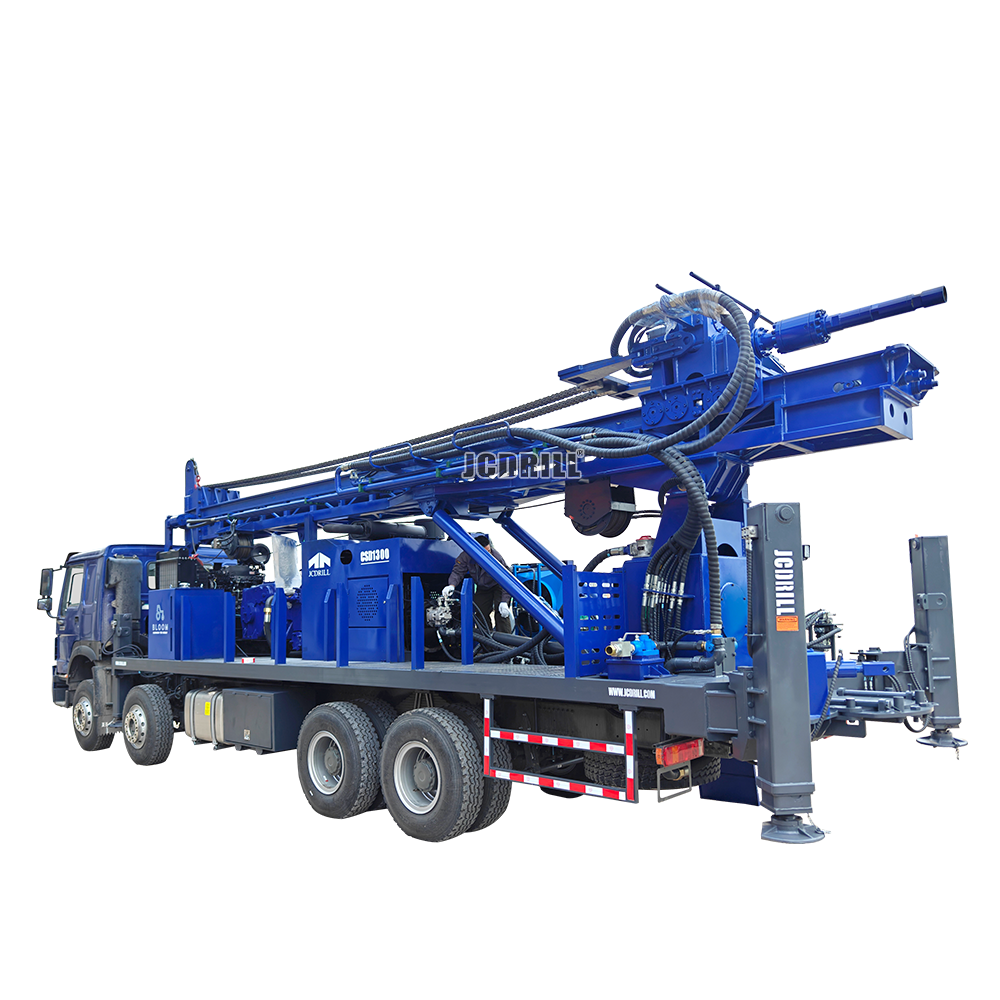

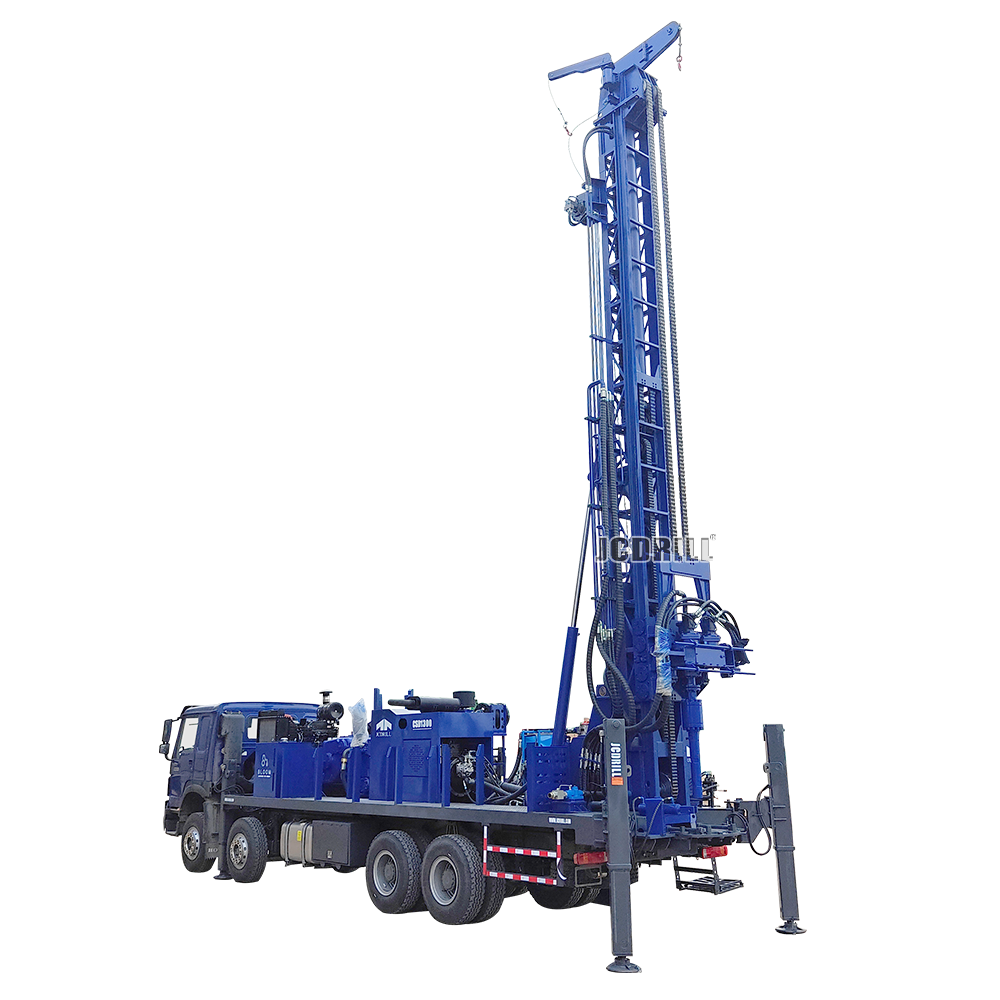

Truck Mounted Borehole DTH Rotary Hydraulic Water Well Drilling Rig

Model:CSD1300

Chassis:6X4,8X4

Max. Drilling depth:1300m

Drilling Method:Air Drilling & Mud Drilling

>> Application

CSD1300 truck mounted water well drilling rig mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project.

Inquire Now Chat Now

PRODUCT DESCRIPTION

Versatile hydraulic water well drilling truck is for drilling hole 1300 meters depth water well. It is one type of heavy duty, high efficiency and versatile drilling machine. The drilling rigs are mainly suitable for drilling wells, geothermal air-conditional hole and others. The great hydraulic system and the hydraulic control valve are from the reliable manufacturer to promise the stable performance of drilling machines. In addition, there are strong rotary motor with high torque and big oil cylinder to the reliable performance of drilling rigs.

>> Characteristics

>>The pulling force can be regulated and controlled, which adapts the machine to deep hole drilling.

>> It can set up a generator which is convenient to welding or illuminate for work at night. >> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and onthe weathering formation.

>>The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulically controlled. The transfer case and mud pump clutch system are also hydraulic operated.

>>The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 2.5 T. rope length of 40m.

>> The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boomlift, and guide dumping.

>> Specification

Item	Spec.	Unit	Parameter
General	Chassis		6X4	8X4
	Geology Drilled		All kinds	All kinds
	Drilling Method		DTH & Mud Rotary	DTH & Mud Rotary
	Hole Depth	m	1300	1300
	Hole Diameter	mm	Φ105—Φ900	Φ105—Φ900
Rotation	Rotation Torque	Nm	12900-25800	12900-25800
Rotation	Rotation Speed	rpm	70-140	70-140
Feeding System	Drill Pipe Diameter	mm	127/140	127/140
	Drill pipe length	mm	4500/6000	4500/6000
	Push down capacity	T	13	13
	Pull back capacity	T	80	80
Winch	Lifting force of tool winch	T	4	4
	Length of steel wire rope	m	100	100
Engine	Diesel Engine type		CUMMINS	CUMMINS
	Rated power	Kw	179	179
	Electrical System	Volt	24	24
Compressor	Compressor Type		Rotary Screw/Separate	Rotary Screw/Separate
	Pressure Required	Mpa	1.05—6.9	1.05—6.9
	Air consumption	m³/min	16—96	16—96
Chassis	Manufacturer		SINOTRUCK	SINOTRUCK
	Rated Horse power	Hp	420	420
	Discharge Standard		EU-2	EU-2
	Drive type		6*4	8*4
	Max. Speed	Km/h	102.9	102.9
	Steering wheel		left/right(Optional)	left/right(Optional)
Mud Pump	Model		BW1500/12	BW1500/12
	Stroke	mm	260	260
	Displacement	L/Min	1500	1500
	Discharge pressure (Mpa)	Mpa	12	12
Generator	Optional		Engine or hydraulic Driven	Engine or hydraulic Driven
Dimension&Weight	Net Weight	Kgs	32000	32000
	Shipping （LWH）	mm	1150025503650	1150025503650
	Working size（LWH）	mm	1100025509980	1130025509980
All truck brand & Engine brand available according to your requests!

Technical specifications of BW1500/12 mud pump
Type	Horizontal single cylinder reciprocating double action piston pump
Cylinder diameter(mm)	153
Stroke(mm)	150
Pump speed ( Time/min )	136	98
Flow(L/min)	1500	1080
Pressure ( MPa )	8	12
Belt	700XC-5
V-belt speed	470r/min
Engine Brand	Cummins
Power(Kw)	132
Inlet pipe inner diameter	127mm
Drain pipe inner diameter	76mm
Return pipe inner diameter	40mm
shape size(mm)	180014001500
Weight( kg )	2450
